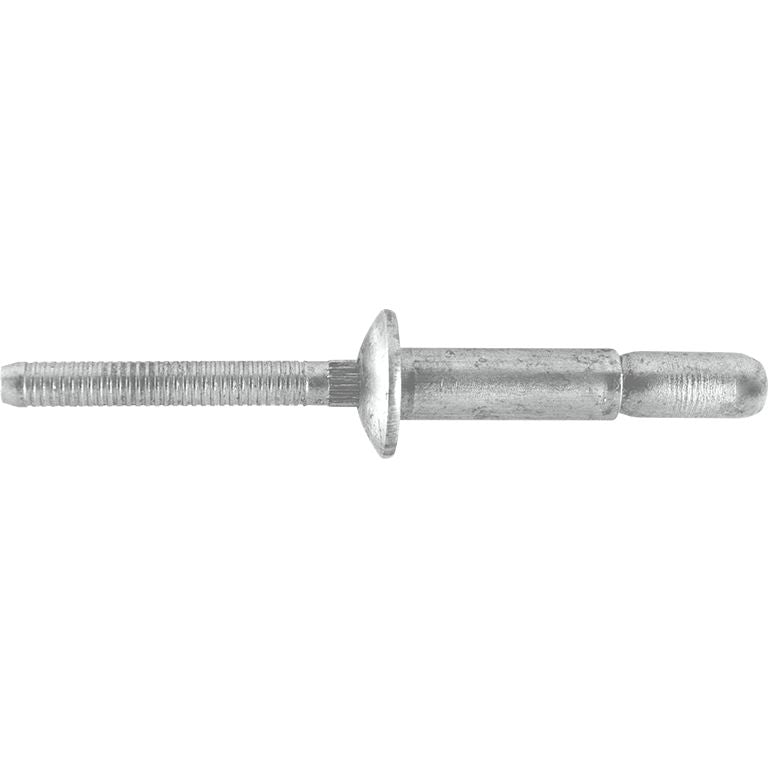

Structural Rivet, Internal Lock, Dome Head, Aluminum, 1/4" Diameter, 0.08 to 0.625" Grip Range, 0.81" Body Length
(Pack of
50)
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Open End Rivet Dome Head Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 3/16"
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543640 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.625 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.810 " |
| Shear Strength | 1,270 lb |
| Tensile Strength | 830 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.42 lb |
