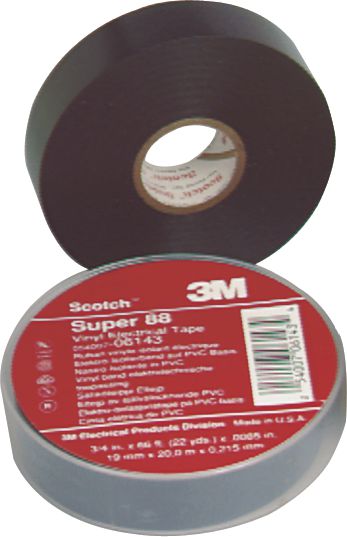

Super 88 Series Vinyl Electrical Tape, Black, 3/4" Width, 66' Length, 250% Elongation, 0 to 220°F Temperature Rating
(Pack of
1)
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Frequently Bought Together
Butt Connector 22 to 18 AWG Red
Item#: 92822
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Item#: 1495188
Couldn't load pickup availability
Vision Pro Super
Item#: DY21061040
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 92823
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: 88447
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Item#: DY89320050
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Item#: 29419
Couldn't load pickup availability
Temflex™ 165 Vinyl Electrical Tape Black 3/4"
Item#: P34103
Couldn't load pickup availability
Vinyl Electrical Tape Green 3/4" x 66'
Item#: 90234
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
Item#: 86503
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Item#: 54518
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Item#: 86502
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 1145814 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | Black |
| Dielectric Strength | 1,176 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 0 to 220 °F |
| Celcius Temperature Range | -18 to 105 °C |
| Elongation | 250 % |
| Adhesion to Steel | 25 in. oz. |
| Adhesion to Backing | 25 in. oz. |
| Breaking Strength | 20 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |

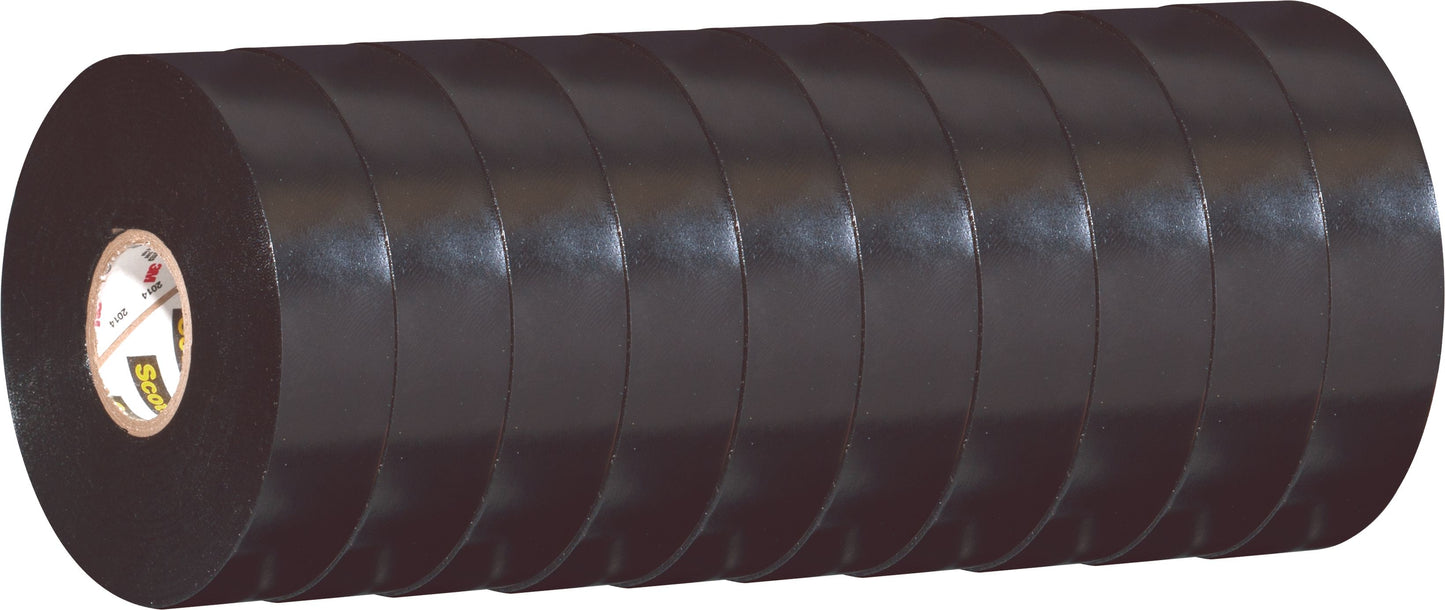

| Description | 10 Pack – 3M Super 88 |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 3.0 lb |
