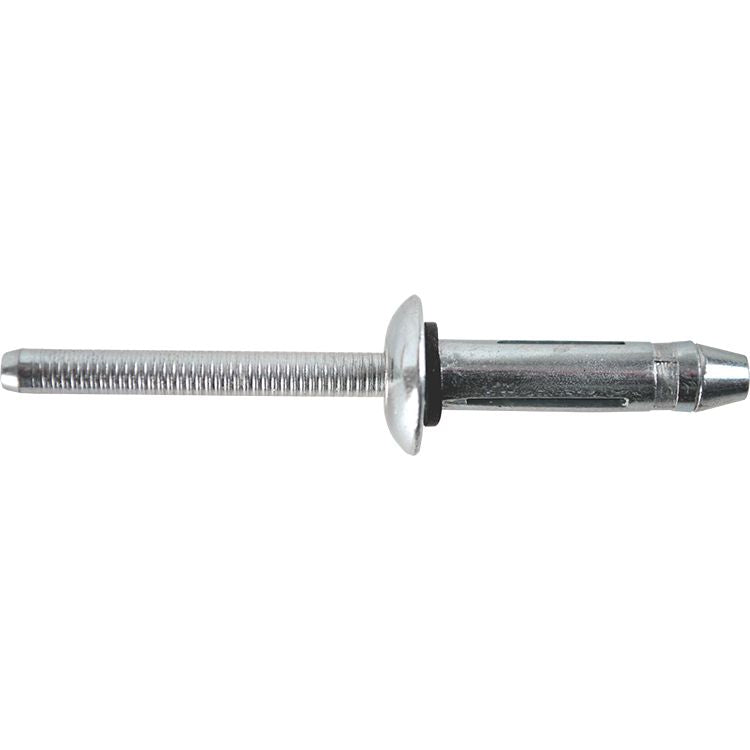

SupraTITE® Structural Tri-Fold Rivet Steel 1/4"
(Pack of
100.0)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application.They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
• Rubber washer under the head provides additional sealing capabilities
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
Tri-Fold Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application.They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
• Rubber washer under the head provides additional sealing capabilities
Technical Specifications
| Item#: | 1543660 |
|---|---|
| Type | Structural Tri-Fold |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.250 – 0.500 " |
| Hole Size | 0.250 – 0.263 " |
| Drill Size | F |
| Head Diameter | 0.550 " |
| Head Height | 0.125 " |
| Body Length | 1.255 " |
| Shear Strength | 1,250 lb |
| Tensile Strength | 950 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 2.54 lb |
Product Restrictions
