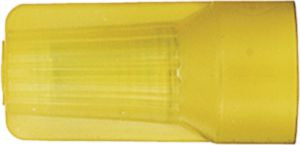

Sure-Lok Wire Connector, 22 to 12 AWG, 600/1000 Volts, Yellow
(Pack of
100)
• No pre-twisting of wires
• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Frequently Bought Together
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Performance Plus Wire Connector 18 to 8 AWG
Couldn't load pickup availability
Wire Connector 16 to 10 AWG Red
Couldn't load pickup availability
Winged Wire Connector 18 to 10 AWG Red
Couldn't load pickup availability
Performance Plus Wire Connector 18 to 8 AWG
Couldn't load pickup availability
Wire Connector 16 to 10 AWG Red
Couldn't load pickup availability
Wire Pin Connector 16 to 14 AWG
Couldn't load pickup availability
Product Description
• No pre-twisting of wires• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Technical Specifications
| Item#: | P35026 |
|---|---|
| Wire Gauge | 22-12 AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Yellow |
| Temperature Range | -40 to 221 F |
| Celcius Temperature Range | -40 to 105 C |
| Approvals | UL, CSA |
| Style | Sure-Lok Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
Product Restrictions
