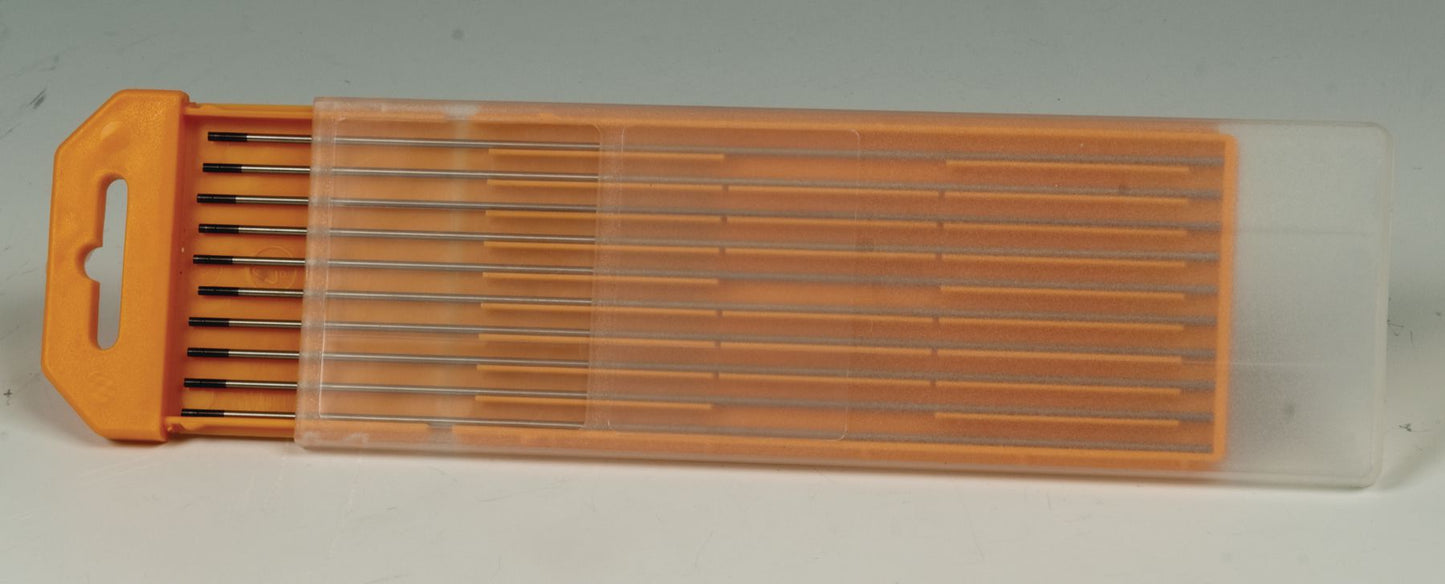

TIG Welding Tungsten Electrode, Gold Tipped, 1.5% Lanthanated, 7" Length, 1/8"
(Pack of
10)
SKU:P14574 Item#: P14574
• Non-radioactive Lanthanum Tungsten TIG electrodes eliminate the potential of interference with special equipment and reduces rate of vaporization or burn-off
• Will operate with alternating current or direct current either polarity
• The addition of lanthanum also lowers the temperature at which the electrode emits electrons allowing the electrode to operate cooler so higher currents can be used
• Lanthanum improves arc initiation and arc stability
• Longer life
• Less contamination
• Length: 7" (18cm)
• Identification: gold tipped
• Meets AWS specifications for EWLa-2
NOTE: Use argon shielding gas with a gas lens collet body for optimum performance.
Couldn't load pickup availability
Catalog page#: 13-39
Frequently Bought Together
18" Locking Smooth Operator Clamp
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Rare Earth Lanthinated Tungsten Tig Welding Non Consumable Electrode
Couldn't load pickup availability
SR18 TIG Welding Collet Body Insulator
Couldn't load pickup availability

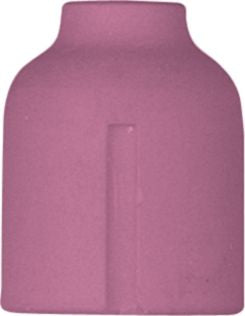

SR17/18 TIG Welding Alumina Gas Lens Cup #8
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
Heavy Duty Oxy Acetylene Torch Body Assembly
Couldn't load pickup availability
SR17/18 TIG Welding Standard Collet Body 3/32"
Couldn't load pickup availability
Heat Resistant Plastic Coated Brass Collet Nut
Couldn't load pickup availability
Product Description
• Non-radioactive Lanthanum Tungsten TIG electrodes eliminate the potential of interference with special equipment and reduces rate of vaporization or burn-off• Will operate with alternating current or direct current either polarity
• The addition of lanthanum also lowers the temperature at which the electrode emits electrons allowing the electrode to operate cooler so higher currents can be used
• Lanthanum improves arc initiation and arc stability
• Longer life
• Less contamination
• Length: 7" (18cm)
• Identification: gold tipped
• Meets AWS specifications for EWLa-2
NOTE: Use argon shielding gas with a gas lens collet body for optimum performance.
Technical Specifications
| Item#: | P14574 |
|---|---|
| Welding Process | TIG |
| Type | Lanthanated |
| Components | Tungsten Electrode |
| Diameter | 1/8 " |
| Length | 7 " |
| Description | 1.5% Lanthanated |
| UNSPSC #: | 23271700 |
| TAA Compliant: | No |
| Weight: | 0.65 lb |
