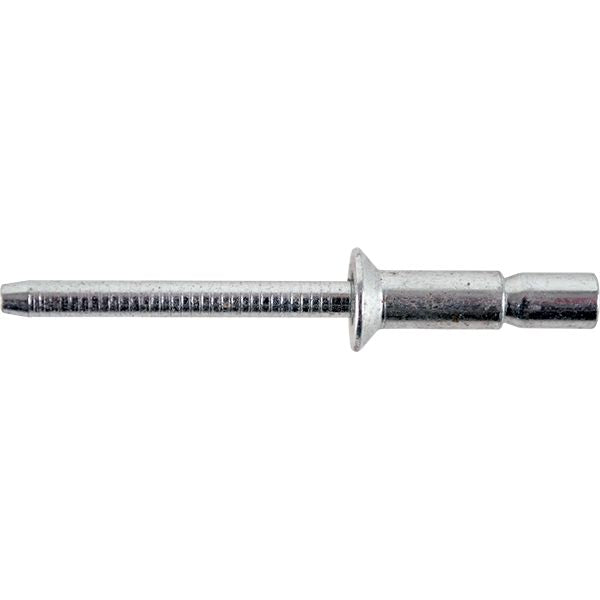

Tigerbolt® Structural Rivet, External Lock, 100° Countersunk Head, Steel, 1/4" Diameter, 0.125 to 0.5" Grip Range
(Pack of
50)
SKU:1543630 Item#: 1543630
100° Countersunk Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
Catalog page#: 7-19
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Product Description
100° Countersunk Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543630 |
|---|---|
| Type | Structural – External Lock |
| Head Style | 100° Countersunk Head |
| Material Body / Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.125 – 0.500 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.420 " |
| Head Height | 0.070 " |
| Body Length | 0.547 " |
| Shear Strength | 2,675 lb |
| Tensile Strength | 2,360 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.9 lb |
