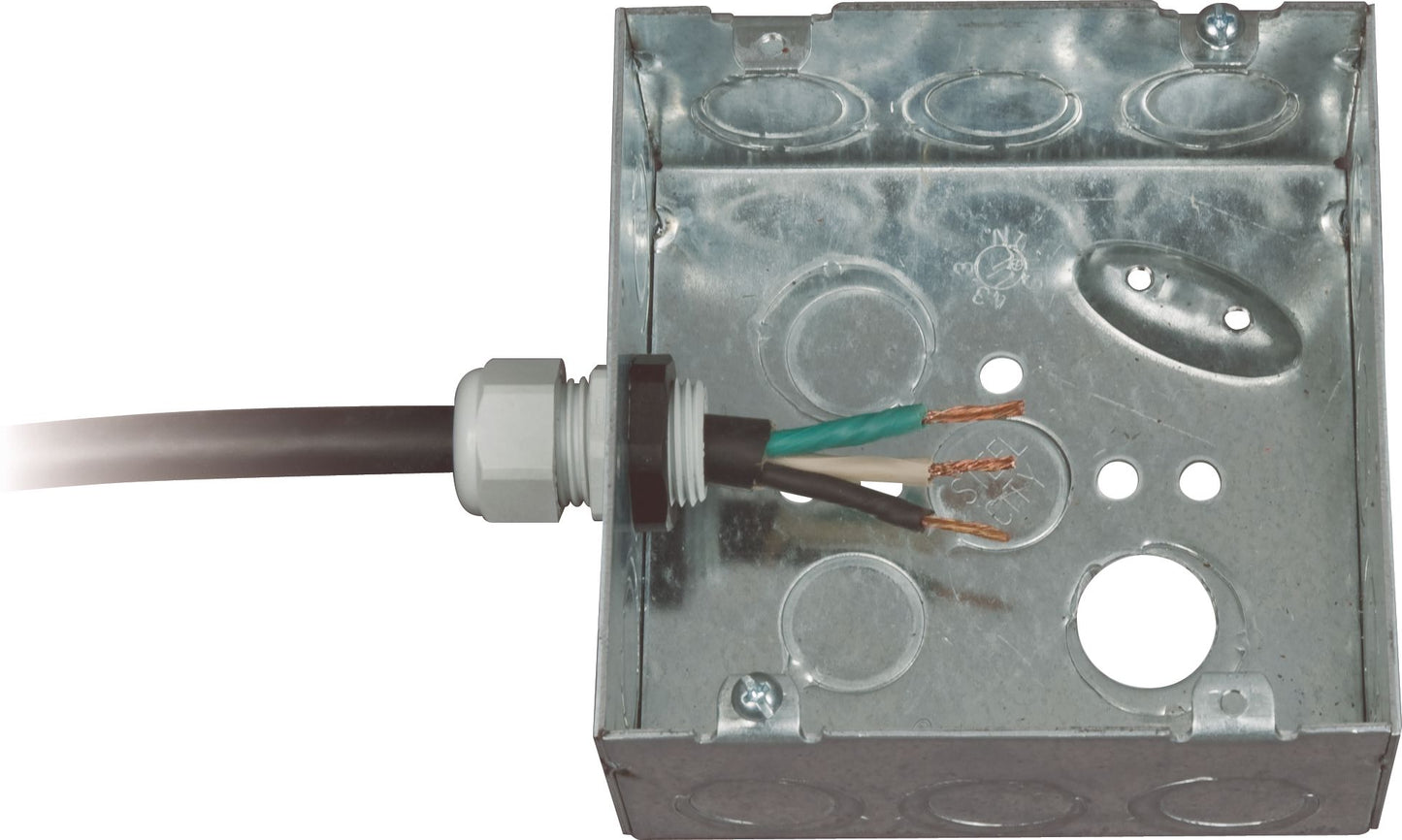

Tite-Seal II Cord and Cable Grip, PG-11, Accommodates THW/AWM/MTW-10-4 AWG, THHN-8-2 AWG, SJO-18/2,3,4, 16/2,3,4, 14/2,3
(Pack of 10)

SKU:P40595 Item#: P40595

Lawson Products

• Weatherproof – Water-resistant seal helps protect connections from frequent washdowns
• Durable – Roton™ cap nut and body combines with neoprene seal for exceptional strength and durability
• Strong Grip – Internal segmented flange and ratchet lock hold wire or cable secure to panel box
• Strain Relief – Unique segmented flange provides exceptional strain and tension relief for the cable or cord
Technical Information
• Voltage rating: 600V maximum at 221°F (105°C)
• Temperature range: –40°F to +231°F (–40°C to +110°C)
Applications
• Enclosures
• T-stands
• Foot switches
• Conveyors
• Hoist and crane pendants
• Processing equipment
NOTE: Maximum voltage rating in USA 600V; in Canada 32V.

Check Availability

Quantity

Catalog page#: 17-85

Frequently Bought Together

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Split Wire Loom Polyethylene Black 0.75" ID 25'

Item#: 97363

Heat Shrink Tubing 4 to 2/0 AWG Black

Item#: 51883

Heat Shrink Tubing 18 to 12 AWG Clear

Item#: 89465

Product Description

Technical Specifications

Item#:	P40595
Wire Diameter	0.200 - 0.390 "
Wire or Cable Size Accommodated	THW/AWM/MTW-10-4 AWG, THHN-8-2 AWG, SJO-18/2,3,4, 16/2,3,4, 14/2,3
Hole Diameter	0.733 "
Threaded Hole Size	PG-11
Voltage Rating	600 V
Temperature Range	-40 to 231 °F
Approvals	UL, CSA
Style	Tite-Seal II Cord and Cable Grips
Type	Strain Relief Connectors
UNSPSC #:	39121719
TAA Compliant:	Yes
Weight:	0.24 lb
