Home Automotive Hardware Universal Neoprene Captive Brass Well Nut #8-32
Automotive Hardware

Neoprene Captive Brass Well Nut, #8-32 Thread Size, Fits 5/16" Hole, 0.438" Head, 0.499" Overall Length
(Pack of 25)

Lawson Products

• 8-32 Thread Size
• 0.312" Shank Dia.
• 0.447" Shank Length
• 0.438" Head Dia.
• 0.052" Head Thickness
• 0.499" Overall Length
• 0.015" – 0.156" Grip Range
• Fits into 5/16" Hole

Read More
Check Availability

Catalog page#: 26-332

Frequently Bought Together


Tubeless Tire Snap-In Valve 1-1/4"

Item#: 11011

Front Bumper Fascia Retainer Plastic 15mm

Item#: P53961

Radiator Side Air Baffle Retainer Nylon 11/16"

Item#: P18339

Rocker Molding Clip with Sealer Nylon Gray 12mm

Item#: P85430

Air Inlet Grille/Bumper Fascia Push-Type Retainer

Item#: KT14302

Fascia and General Purpose Push-Type Retainer

Item#: P85037

Tire Repair Inner Liner Sealer

Item#: 1417734

PZ Series Zinc Clip-On Wheel Weight 1-1/4oz

Item#: KT14852

PZ Series Zinc Clip-On Wheel Weight 3/4oz

Item#: KT14850

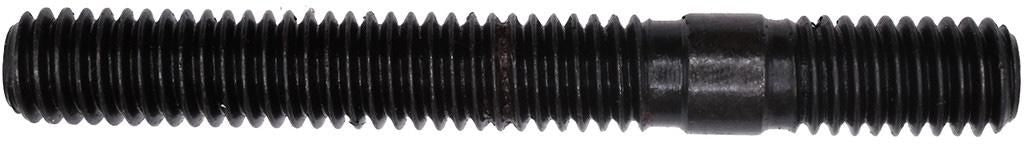

Manifold Stud 3/8-16 x 5/8 Uss x 3/8-16 x 2

Item#: 1679285

Setting Channel

Item#: 1679086

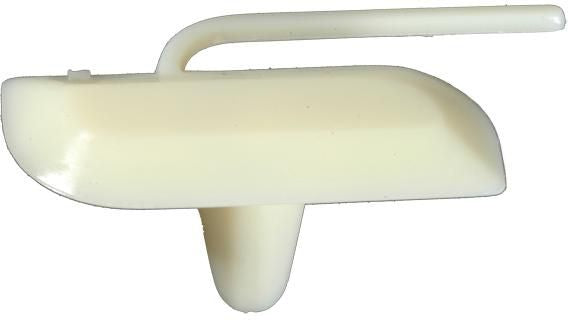

Universal Moulding Fastener Nylon

Item#: 1679124

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Hex Nut Grade 5 Steel 3/8-16

Item#: FA95679

Product Description

• 8-32 Thread Size
• 0.312" Shank Dia.
• 0.447" Shank Length
• 0.438" Head Dia.
• 0.052" Head Thickness
• 0.499" Overall Length
• 0.015" – 0.156" Grip Range
• Fits into 5/16" Hole

Technical Specifications

Item#: KT11463
Type Well Nut
Fits Hole Size 5/16 "
Shank Length 0.447 "
Thread Size # 8-32
Grip Range 0.015 - 0.156 "
Head Diameter 0.438 "
Head Thickness 0.052 "
Overall Length 0.499 "
Shank Size 0.312 "
Material Neoprene with Captive Brass Nut
Description Well Nut Fastener
UNSPSC #: 25172502
TAA Compliant: Yes
Weight: 0.1 lb
