Flat Washer, USS, Thru-Hardened, Steel, Zinc Finish, 49/64" ID, 2" OD, 5/32" Thickness, 3/4"
(Pack of
50)
• Designed and engineered for use with Tru-Torq® and Tuff-Torq® fastening systems
• Greater thickness with more closely held tolerances than standard washers – tight inside diameter tolerance prevents system mismatch
• Smooth bearing surfaces
• Manufacturing lot control traceability
• Hardened and tempered; will support 180,000 PSI minimum strength
• Exceeds SAE and ASTM F436 specifications
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability

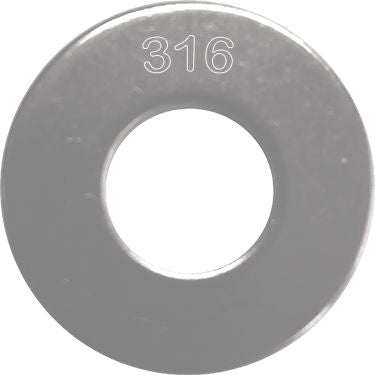

Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
Product Description
• Designed and engineered for use with Tru-Torq® and Tuff-Torq® fastening systems• Greater thickness with more closely held tolerances than standard washers – tight inside diameter tolerance prevents system mismatch
• Smooth bearing surfaces
• Manufacturing lot control traceability
• Hardened and tempered; will support 180,000 PSI minimum strength
• Exceeds SAE and ASTM F436 specifications
Technical Specifications
| Item#: | 88452 |
|---|---|
| Nominal Size | 3/4 " |
| Grade | Thru-Hardened |
| Finish | Bright Zinc |
| Type | Flat Washer |
| I.D. | 49/64 " |
| O.D. | 2 " |
| Thickness | 5/32 " |
| Material | Carbon Steel |
| Minimum Thickness | .136 " |
| Maximum Thickness | .160 " |
| Pattern | USS |
| Quantity Per Package | 50.0000 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | Yes |
| Weight: | 5.24 lb |
