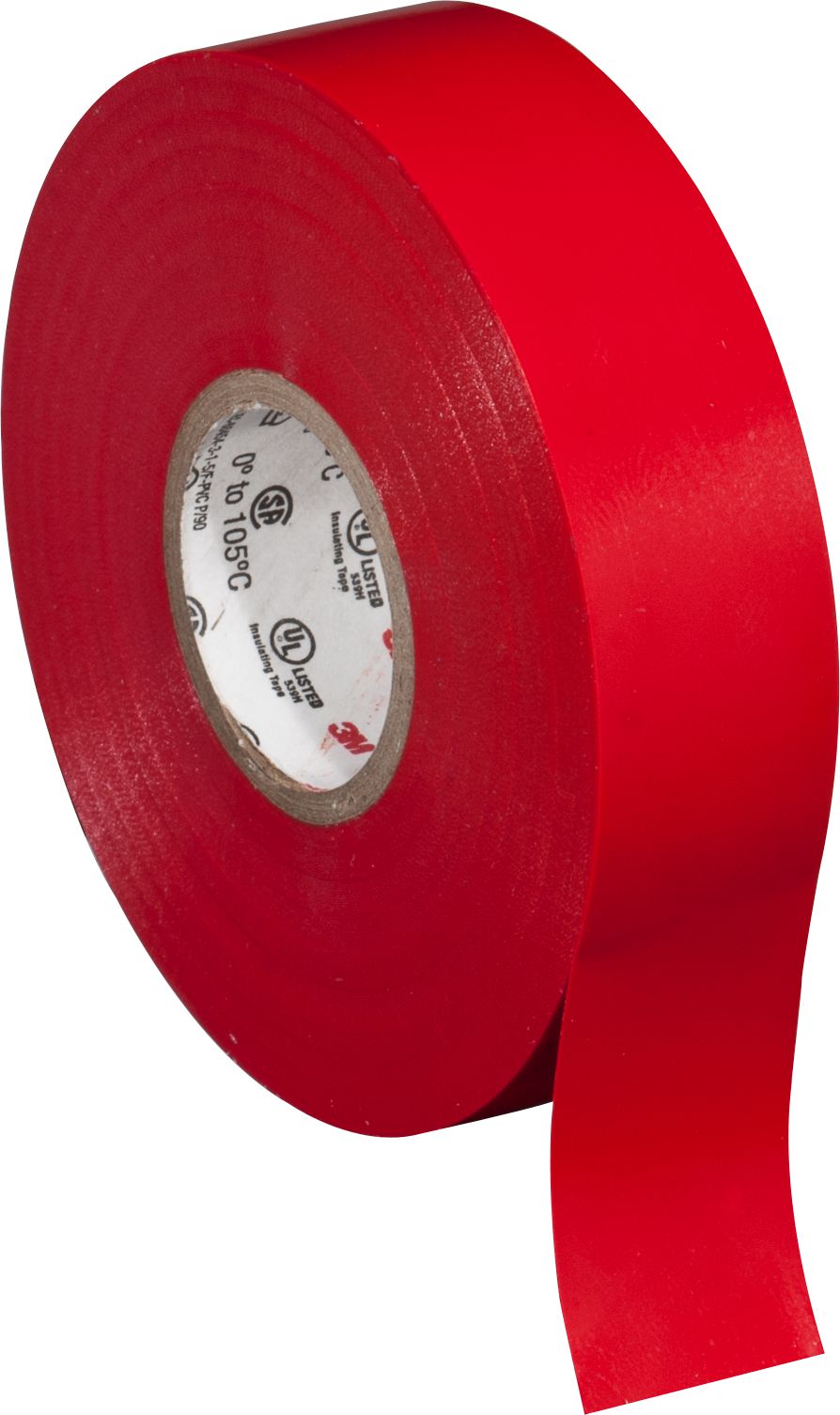

Vinyl Electrical Tape, Red, 3/4" Width, 66' Length, 225% Elongation, 32 to 220°F Temperature Rating
(Pack of
1)
SKU:29419 Item#: 29419
Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)
Couldn't load pickup availability
Catalog page#: 17-40
Frequently Bought Together
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
ATO/ATC Fuse 30A Green
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Vinyl Electrical Tape Orange 3/4" x 66'
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Couldn't load pickup availability
Rubber Grommet 3/4" ID
Couldn't load pickup availability
Adhesive Heat Shrink Tubing 16 to 8 AWG Clear/Blue
Couldn't load pickup availability
Product Description
Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 29419 |
|---|---|
| Type | Individual Roll |
| Style | Vinyl Electrical Tape |
| Color | Red |
| Dielectric Strength | 1,250 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 32 to 220 °F |
| Celcius Temperature Range | 0 to 105 °C |
| Elongation | 225 % |
| Adhesion to Steel | 20 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 17 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 3M 35 Series |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
