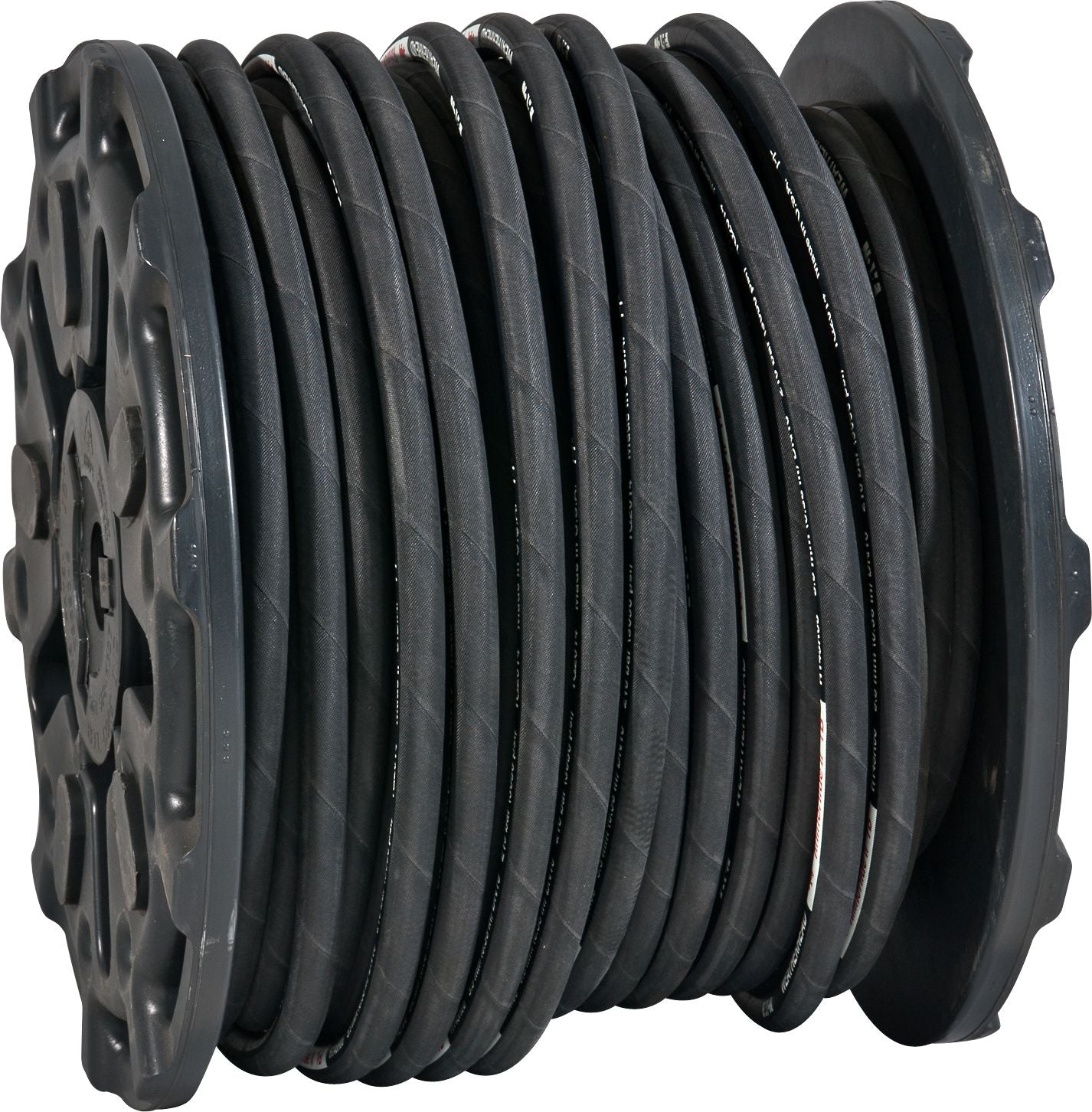

Weatherhead H145R Hydraulic Hose, UHMW Polyethylene, 1-Steel Braided, 3/8" ID, 5/8" OD, 250' Length, 3000PSI, SAE 100R17
(Pack of
250)
SKU:20768 06 Item#: 20768 06
250 ft. rolls consist of no more than three pieces with none shorter than 25 feet. Total length may vary ±25%.
• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Frequently Bought Together
Weatherhead H430 Hydraulic Hose 15/16" x 50'
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 5/8" x 6'
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.755 x 0.097"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Couldn't load pickup availability
Crimp-On Coupling 1/4" x 9/16-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 5/8" x 6'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 3/4" x 15'
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
250 ft. rolls consist of no more than three pieces with none shorter than 25 feet. Total length may vary ±25%.• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Technical Specifications
| Item#: | 20768 06 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating | MSHA, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H145R |
| Manufacturer Series Name | RhinoHide II |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 5/8 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 2-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braids |
| Hose Cover Material | UHMW Polyethylene |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 60.0 lb |
