Home Anchors Wedge Type Stud Bolt Anchor SS 3/4 x 4-1/4"
Anchors

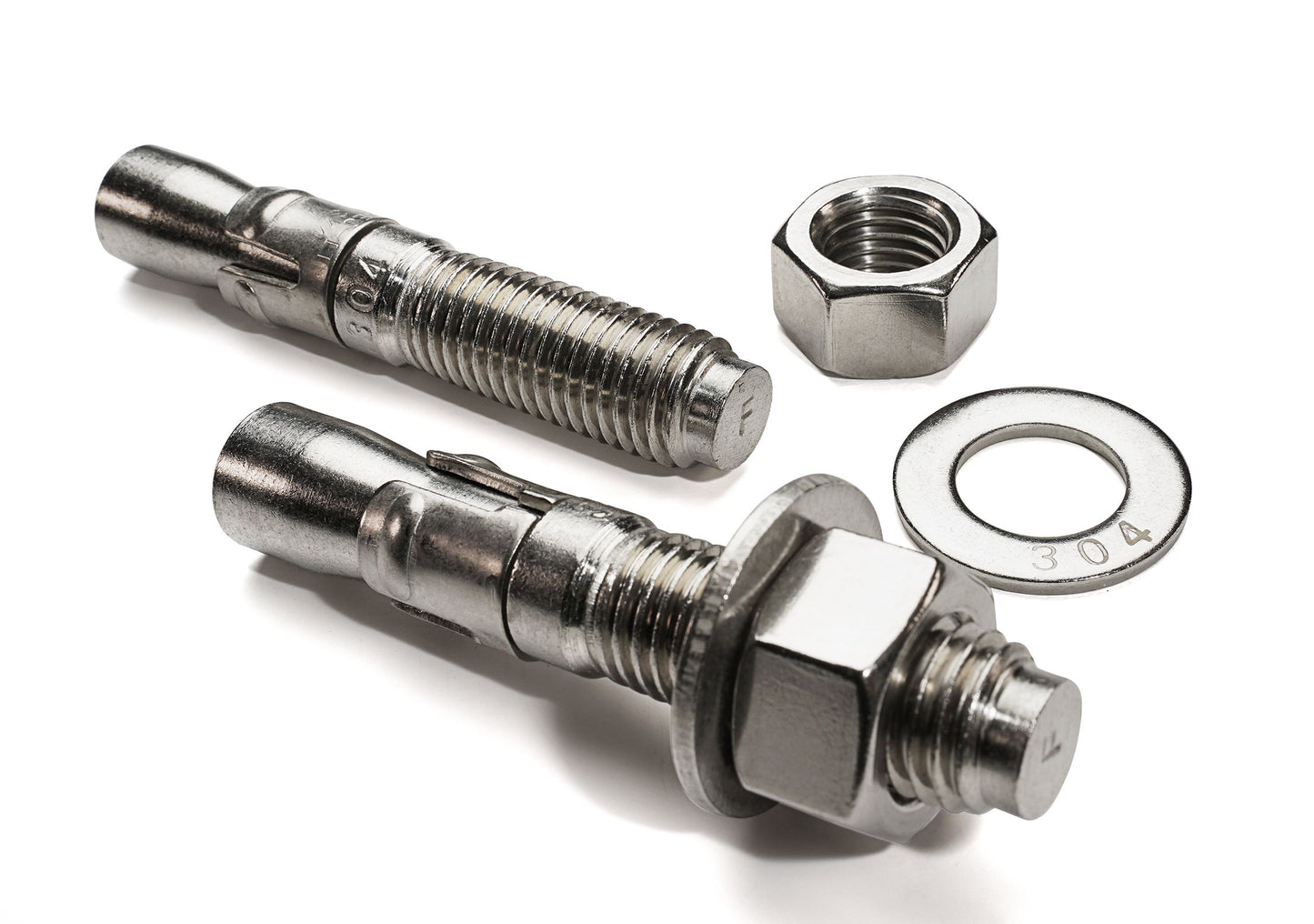

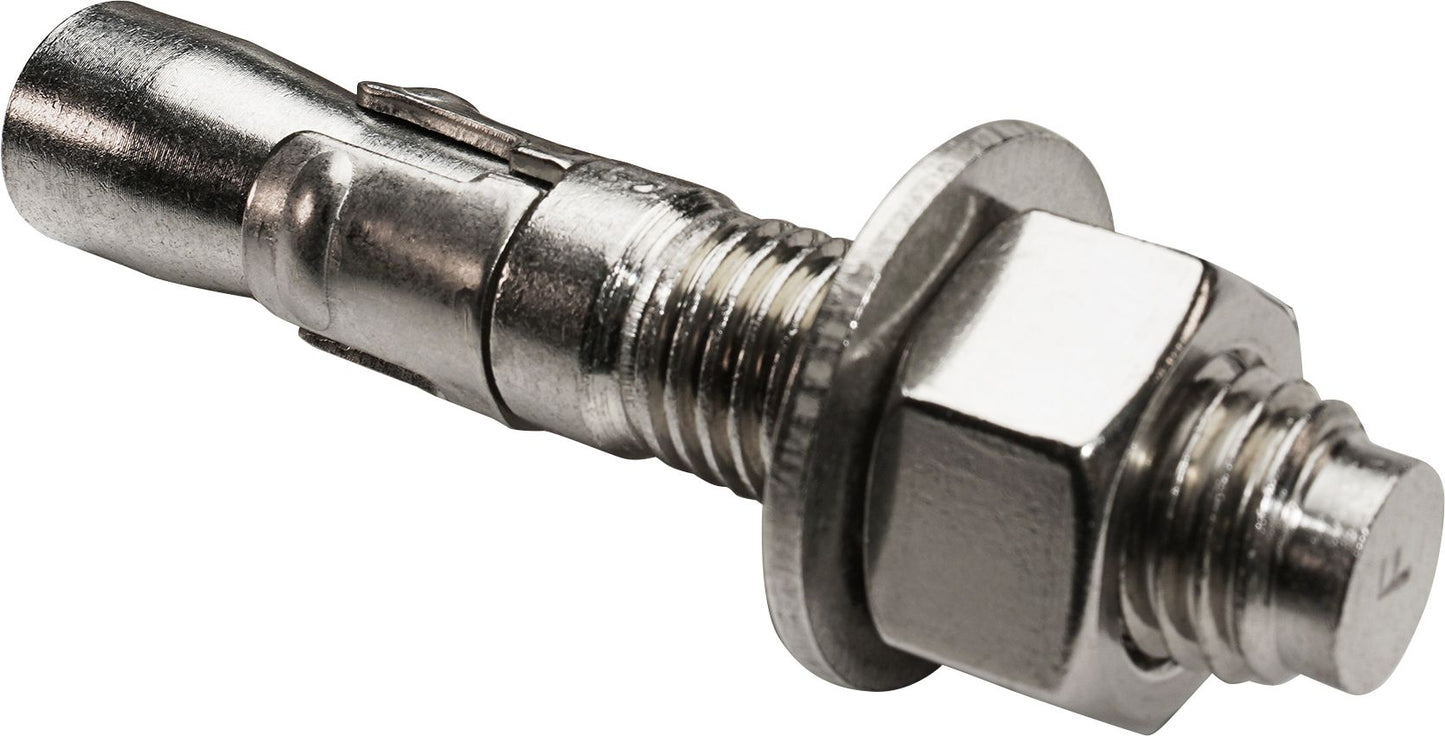

Wedge Type Stud Bolt Anchor, Stainless Steel, Plain Finish, 3/4 x 4-1/4"
(Pack of 2)

Item#: 91635

Lawson Products

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Read More
Check Availability

Catalog page#: 6-30

Frequently Bought Together


Tubular Anchor Plastic Gray #20 to #24

Item#: 92563

SnapSkru® Standard Self-Drilling Wall Anchor Nylon

Item#: 50878

Conical Screw Anchor Kit Plastic 401Pcs

Item#: 94878

Hex Nut Grade 8 Steel 5/16-18

Item#: FA68401

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88435

Hex Nut Grade 8 Steel 1/2-13

Item#: FA68404

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Wedge Type Stud Bolt Anchor SS 5/8 x 3-1/2"

Item#: 91633

Wedge Type Stud Bolt Anchor SS 1/2 x 4-1/4"

Item#: 91631

Wedge Type Stud Bolt Anchor Steel 5/8 x 3-1/2"

Item#: 84034

Product Description

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Technical Specifications

Item#: 91635
Diameter 3/4 "
Length 4-1/4 "
Thread Length 2 "
Drill Size 3/4 "
Material Stainless Steel
Finish Plain
Type Wedge Anchor
Proof Test Load 6,800 lb

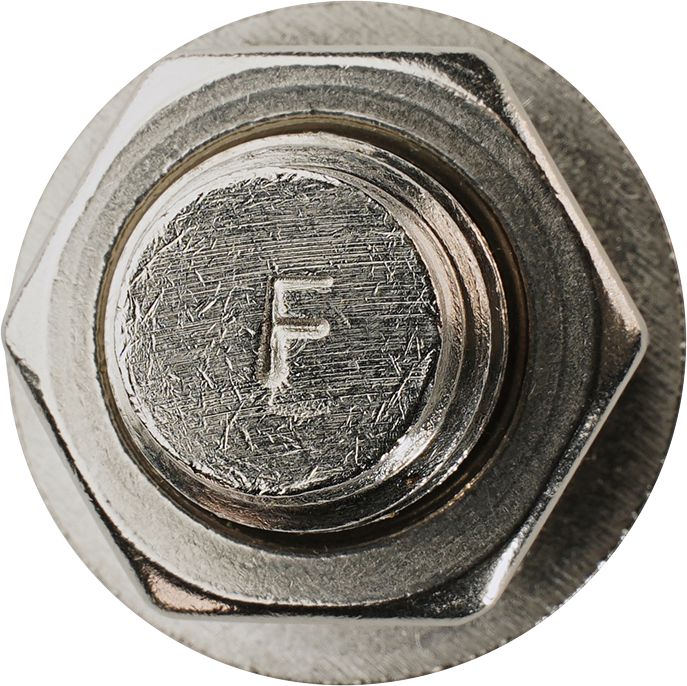

Length Identification Code F
Size 3/4X4-1/4 "
Minimum Embedment 3-1/4 "
UNSPSC #: 31162101
TAA Compliant: No
Weight: 1.31 lb
