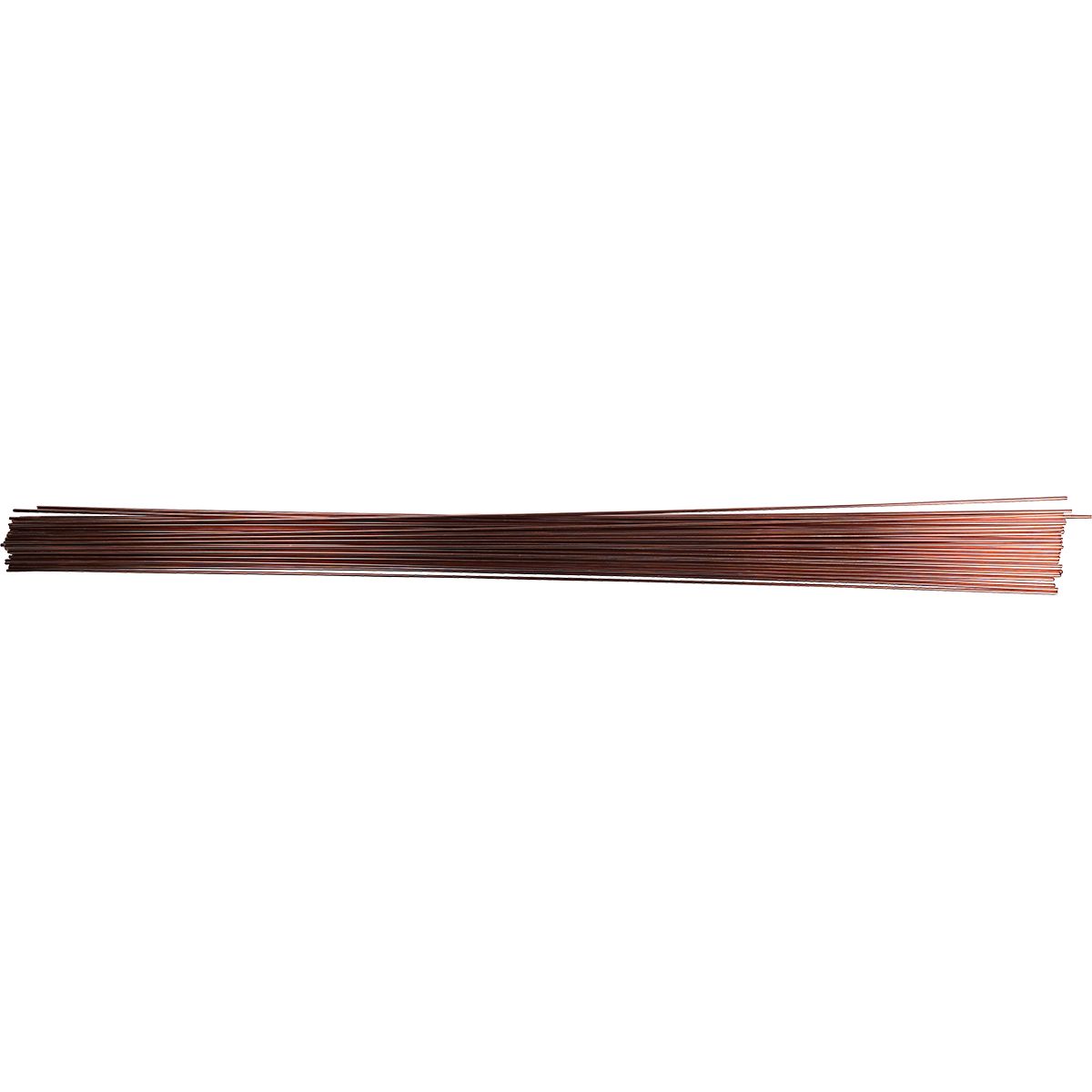

1/16 Mild Steel Tig Wire
(Pack of
5.0)
• Engineered for use on slightly dirty or rusted surfaces
• Better flow on hot rolled steel
• Triple deoxidizers reduce porosity in the weld and significantly improve deposit quality
• Tensile Strength: 74,000 PSI/510 Mpa
• Yield Strength: 58,000 PSI/400 Mpa
• Elongation: 30%
• Impact Strength (Charpy): 20 ft.-lbs. @ -20°F/-29°C
• Current: DCEN
• Gas: 100% Argon
Frequently Bought Together
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self Ignighting Propane Torch Head
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
9-6501 Plasma Cutting Tip
Couldn't load pickup availability
9-6004 Plasma Cutting Shield Cup
Couldn't load pickup availability
177888 Plasma Cutting Deflector
Couldn't load pickup availability
Product Description
• Engineered for use on slightly dirty or rusted surfaces• Better flow on hot rolled steel
• Triple deoxidizers reduce porosity in the weld and significantly improve deposit quality
• Tensile Strength: 74,000 PSI/510 Mpa
• Yield Strength: 58,000 PSI/400 Mpa
• Elongation: 30%
• Impact Strength (Charpy): 20 ft.-lbs. @ -20°F/-29°C
• Current: DCEN
• Gas: 100% Argon
Technical Specifications
| Item#: | EG2007106T |
|---|---|
| Welding Process | TIG |
| Type | TIG |
| Diameter | 1/16 " |
| Base Metal | Mild & Carbon Steel |
| Size | 1/16 " |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.0 lb |
