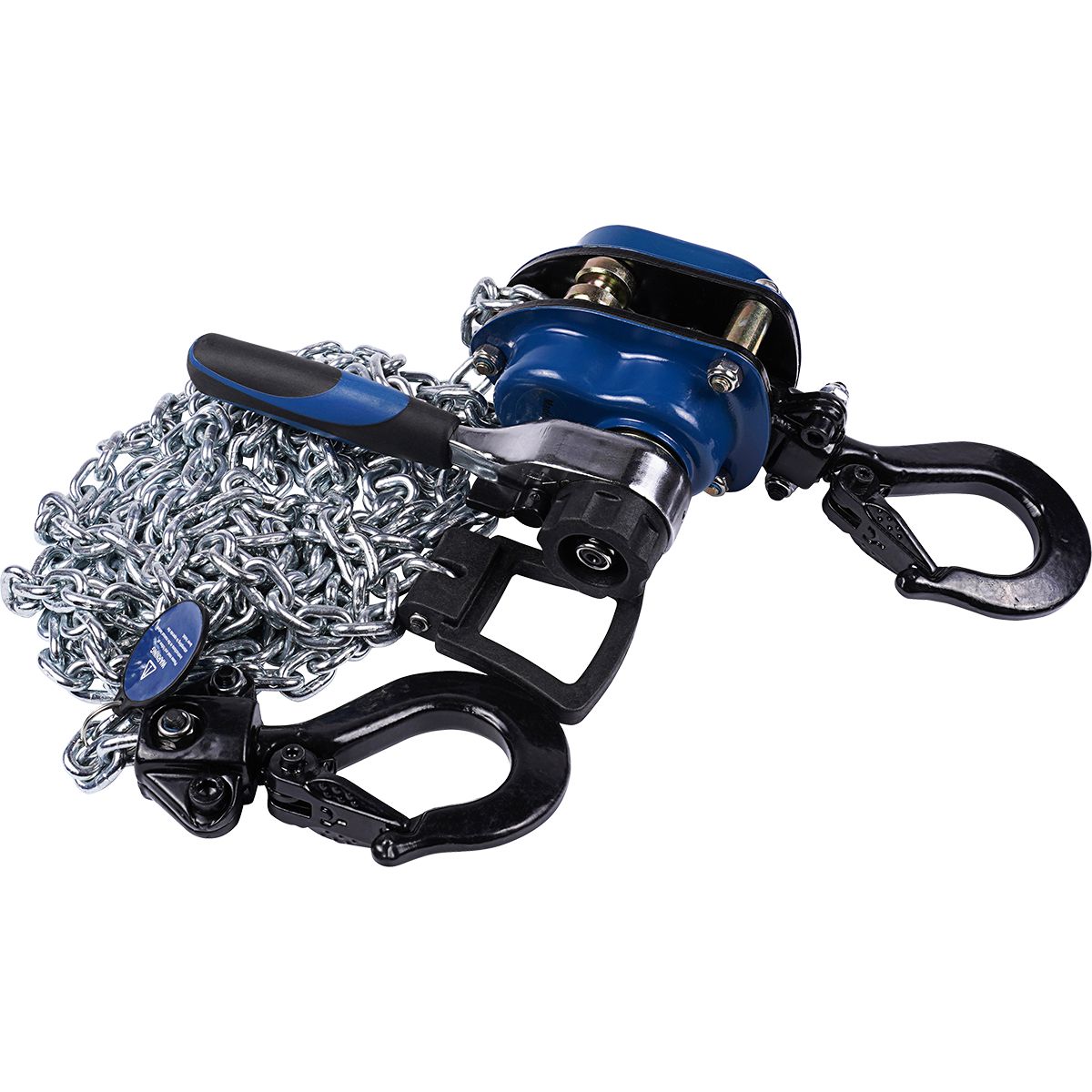

1/2 Ton Mini Lever-Action Hoist
(Pack of
1.0)
• Heavy-duty construction, but light weight design for all mobile lifting, rigging, and pulling applications performed within the operation guidelines
• Load chain is made of Grade 80 alloy steel and zinc plated to resist wear and corrosion
• Heavy-duty drop forged upper and lower hooks are made from 35CRMO steel, painted for corrosion resistance, and feature spring loaded latches to secure loads
• Small and compact enough for operating in confined spaces
• Ergonomic handle reduces operator hand fatigue and provides a non-slip grip for safe, one-handed operation
• Outer hand wheel allows for tightening or loosening of load chain without having to crank the handle
• Free-chaining feature allows for a quick load attachment
• Stores easily in tool boxes, job boxes, mobile maintenance repair vehicles, ATV’s, golf carts, lockers and tool rooms
• Asbestos free copper fiber brake
• Meets ASME/ANSI B30.21 Standards, CE, TUV and GS Regulatory Approval
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Series 640 Puller Lever Tool, 3/4 Ton, 5' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 3/4 Ton, 5' Lift
Couldn't load pickup availability
Cable Pullers, 1 Ton Capacity
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 3/4 Ton, 10' Lift
Couldn't load pickup availability
Series 640 Puller Lever Tool, 1-1/2 Ton, 10' Lift
Couldn't load pickup availability
Series 653 Ratchet Lever Operated Hoist, 3/4 Ton, 5' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 15' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 5' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 20' Lift
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 6" Long
Couldn't load pickup availability
Cold Shut 3/16" Body 525 Lb Safe Load
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Heavy-duty construction, but light weight design for all mobile lifting, rigging, and pulling applications performed within the operation guidelines• Load chain is made of Grade 80 alloy steel and zinc plated to resist wear and corrosion
• Heavy-duty drop forged upper and lower hooks are made from 35CRMO steel, painted for corrosion resistance, and feature spring loaded latches to secure loads
• Small and compact enough for operating in confined spaces
• Ergonomic handle reduces operator hand fatigue and provides a non-slip grip for safe, one-handed operation
• Outer hand wheel allows for tightening or loosening of load chain without having to crank the handle
• Free-chaining feature allows for a quick load attachment
• Stores easily in tool boxes, job boxes, mobile maintenance repair vehicles, ATV’s, golf carts, lockers and tool rooms
• Asbestos free copper fiber brake
• Meets ASME/ANSI B30.21 Standards, CE, TUV and GS Regulatory Approval
Technical Specifications
| Item#: | DY06590500 |
|---|---|
| Style | Mini |
| Series | Mini |
| Load Capacity | 1/2 ton (US) |
| Lift | 10 ft |
| Lever Length | 7 " |
| Gear Type | Double Stage Reduction |
| Hook Throat Opening | 1 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | No |
| Weight: | 7.82 lb |
