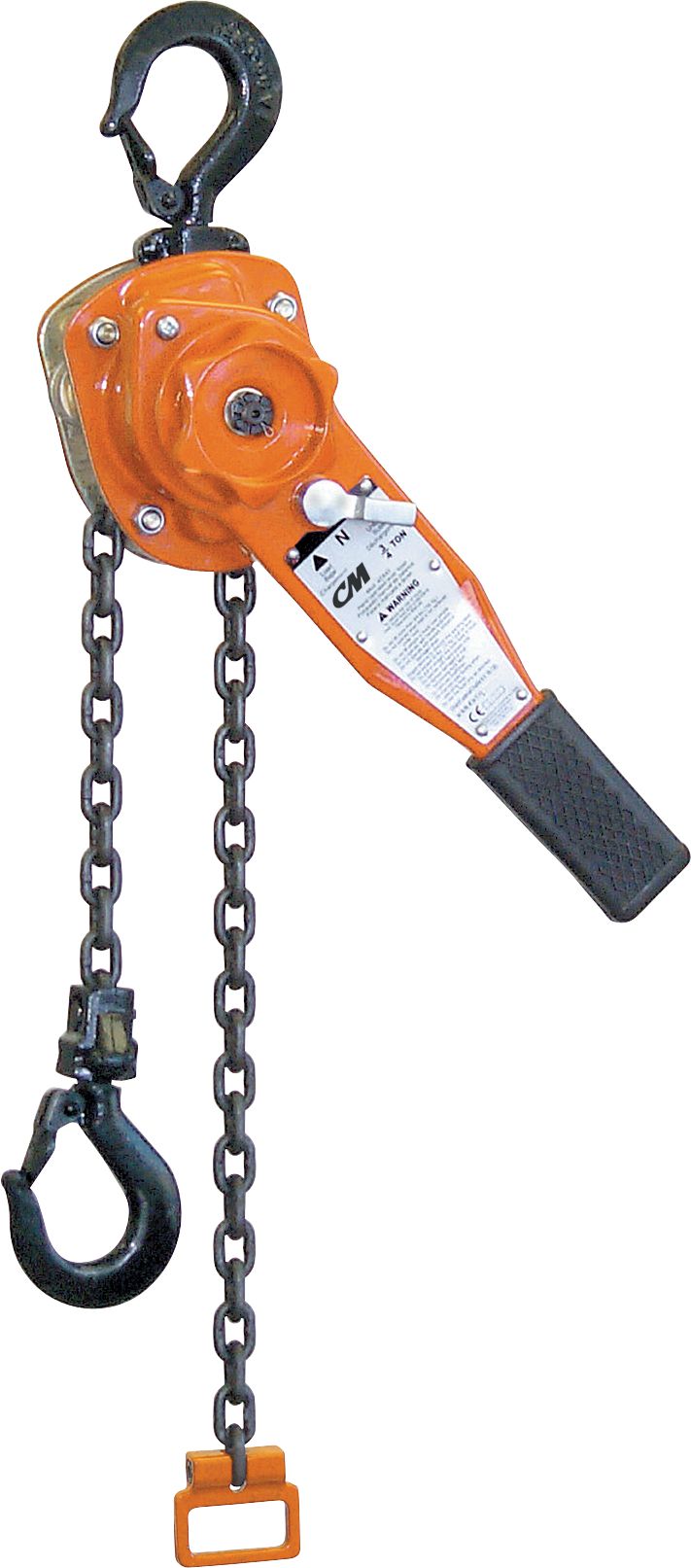

Series 653 Ratchet Lever Operated Hoist, 1-1/2 Ton, 10' Lift
(Pack of
1)
SKU:1593313 Item#: 1593313
The Series 653 Lever Operated Hoist is a high-quality, rugged, steel tool for close quarter pulling, stretching, and hoisting applications. Its characteristic short handle, along with minimal lever pull effort, make this tool ideal for a broad range of applications.
• Meets ASME B30.21 – Manually Lever Operated Hoist Standard and European CE Standard
• Ideal for construction and industrial applications
• Do not exceed working load limit, load rating capacity
• Do not use to lift people or loads over people
• Use only alloy chain for overhead lifting
• Read and follow all instructions
Frequently Bought Together
Series 622 Hand Chain Hoist, 1/2 Ton, 10' Lift
Couldn't load pickup availability
Series 653 Ratchet Lever Operated Hoist, 1-1/2 Ton, 5' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 10' Lift
Couldn't load pickup availability
Series 653 Ratchet Lever Operated Hoist, 3/4 Ton, 10' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 15' Lift
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 5' Lift
Couldn't load pickup availability
Series 653 Ratchet Lever Operated Hoist, 3/4 Ton, 5' Lift
Couldn't load pickup availability
Mini Lever-Action Chain Hoist/Puller
Couldn't load pickup availability
Series 653 Ratchet Lever Operated Hoist, 3/4 Ton, 10' Lift
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 6" Long
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Eye Bolts, Machinery, 5/8 x 1-3/4"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Product Description
The Series 653 Lever Operated Hoist is a high-quality, rugged, steel tool for close quarter pulling, stretching, and hoisting applications. Its characteristic short handle, along with minimal lever pull effort, make this tool ideal for a broad range of applications.• Meets ASME B30.21 – Manually Lever Operated Hoist Standard and European CE Standard
• Ideal for construction and industrial applications
• Do not exceed working load limit, load rating capacity
• Do not use to lift people or loads over people
• Use only alloy chain for overhead lifting
• Read and follow all instructions
Technical Specifications
| Item#: | 1593313 |
|---|---|
| Manufacturer Model #: | 5316 |
| Style | Standard |
| Series | 653 |
| Load Capacity | 1-1/2 ton (US) |
| Lift | 10 ft |
| Headroom | 14-3/16 " |
| Lever Length | 16-1/4 " |
| Pull to Lift Rated Load | 51 lb |
| UNSPSC #: | 24101602 |
| TAA Compliant: | No |
| Weight: | 33.41 lb |
