Home Hydraulics Hydraulic End Fittings 247N Field Attachable Elbow 90° 13/32" x 3/4-16
End Fittings

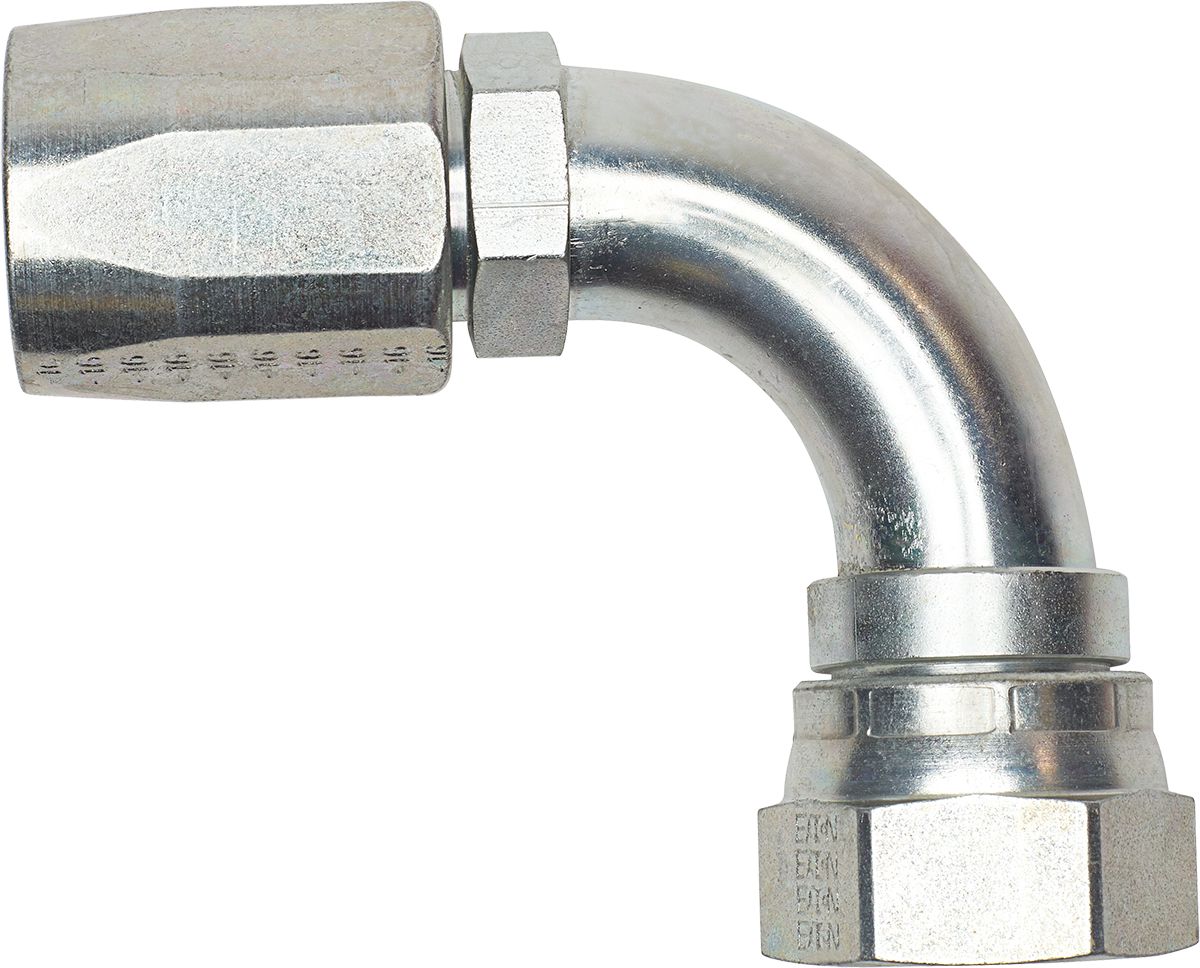

247N Series Field Attachable Elbow, Carbon Steel, Female JIC 37°, Flare 90°, 13/32" (-8) x 3/4-16 (-8)
(Pack of 1)

Item#: 82864

Danfoss®

Power Steering Fittings – Special SAE Male Inverted Flares
• Fittings are mandrelless-type
82862 through 82865 – Universal (SAE 45° or JIC 37°)82866 and 82867 – SAE 45°82868 through 82870 – JIC 37°
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)

Read More
Check Availability

Catalog page#: 8-119

Frequently Bought Together


Z Series Crimp-On Hose End 1/2" x 1-14

Item#: 16710

Z Series Crimp-On Elbow Flare 45° 1/2" x 3/4-16

Item#: 16636

Crimp-On Hose Coupling 3/8" x 3/8-18

Item#: 88311KH

Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare

Item#: 86202

Straight Thread O-Ring Buna-N 0.755 x 0.097"

Item#: 93618

Z Series Crimp-On Hose End 3/4" x 1-3/16-12

Item#: 16716

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11914

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Cable Tie 13.38" Black

Item#: 85490

Product Description

Power Steering Fittings – Special SAE Male Inverted Flares
• Fittings are mandrelless-type
82862 through 82865 – Universal (SAE 45° or JIC 37°)82866 and 82867 – SAE 45°82868 through 82870 – JIC 37°
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)

Technical Specifications

Item#: 82864
Manufacturer Model #: 24708N-668
Manufacturer Series Number 247 N Series
Attachment Method Field Attachable
Fitting Dimension A (Hose) 13/32 (-8) "
Dash Size -8
Gender Female
Fitting End Style JIC 37 Degree Flare
Fitting End Type Swivel
Fitting Angle 90 °
Fitting Drop Length Short
Fitting Dimension B (Working End) 3/4-16 (-8)
O.D. Tube Size 1/2 "
Size (-8)X(-8)
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.33 lb
