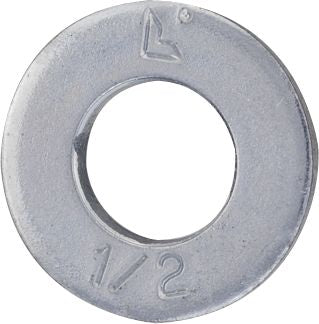

Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 33/64" ID, 1-1/16" OD, 9/64" Thickness, 1/2"
(Pack of
100)
• Designed and engineered for use with Tru-Torq® and Tuff-Torq® fastening systems
• Greater thickness with more closely held tolerances than standard washers – tight inside diameter tolerance prevents system mismatch
• Smooth bearing surfaces
• Manufacturing lot control traceability
• Hardened and tempered; will support 180,000 PSI minimum strength
• Exceeds SAE and ASTM F436 specifications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 3-11
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Designed and engineered for use with Tru-Torq® and Tuff-Torq® fastening systems• Greater thickness with more closely held tolerances than standard washers – tight inside diameter tolerance prevents system mismatch
• Smooth bearing surfaces
• Manufacturing lot control traceability
• Hardened and tempered; will support 180,000 PSI minimum strength
• Exceeds SAE and ASTM F436 specifications
Technical Specifications
| Item#: | 88439 |
|---|---|
| Nominal Size | 1/2 " |
| Grade | Thru-Hardened |
| Finish | Bright Zinc |
| Type | Flat Washer |
| I.D. | 33/64 " |
| O.D. | 1-1/16 " |
| Thickness | 9/64 " |
| Material | Carbon Steel |
| Minimum Thickness | .122 " |
| Maximum Thickness | .146 " |
| Pattern | SAE |
| Quantity Per Package | 100.0000 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | Yes |
| Weight: | 2.29 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
