ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 3/4" Across Flats, 7/16" Thickness, 1/2-13
(Pack of
50)
SKU:A104 Item#: A104
• High-strength fine grain steel
• Three-stage heat treating
• Full finished nut dimensions
• Improved torque reliability
• Greater load consistency

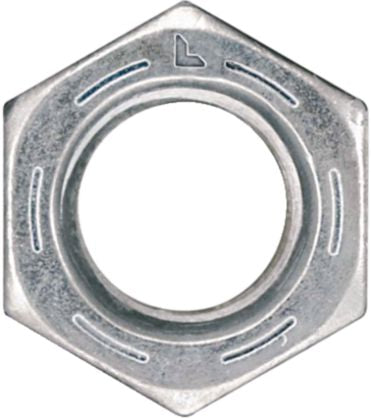

• Six equally-spaced radial lines and Lawson logos identify matched strength Tuff-Torq® Nuts
• Meets SAE J995 Grade 8 strength requirements
• ANSI Class 2B thread fit
• Specifically designed for use with Lawson’s Tuff-Torq® Cap Screws to provide a matched strength fastening system
Couldn't load pickup availability
Catalog page#: 3-12
Frequently Bought Together
DOT Swivel Run Tee Male Brass 1/4 x 1/8-27 x 1/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Hex Nut Thick Grade 9 Alloy Steel 5/8-11
Couldn't load pickup availability
Hex Nut Machine Screw Grade 2 Steel #10-32
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/4-10
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
• High-strength fine grain steel• Three-stage heat treating
• Full finished nut dimensions
• Improved torque reliability
• Greater load consistency
• Six equally-spaced radial lines and Lawson logos identify matched strength Tuff-Torq® Nuts
• Meets SAE J995 Grade 8 strength requirements
• ANSI Class 2B thread fit
• Specifically designed for use with Lawson’s Tuff-Torq® Cap Screws to provide a matched strength fastening system
Technical Specifications
| Item#: | A104 |
|---|---|
| Diameter | 1/2 " |
| Thread Pitch | 13 |
| Type | Hex Nut |
| Grade | 8 |
| Finish | Bright Zinc |
| Material | Alloy Steel |
| Thickness | 7/16 " |
| Across Flats | 3/4 " |
| Thread | Coarse |
| Size | 1/2-13 " |
| Specifications | ANSI B18.2.2 |
| Quantity Per Package | 50.0000 |
| UNSPSC #: | 31161727 |
| TAA Compliant: | Yes |
| Weight: | 1.84 lb |
