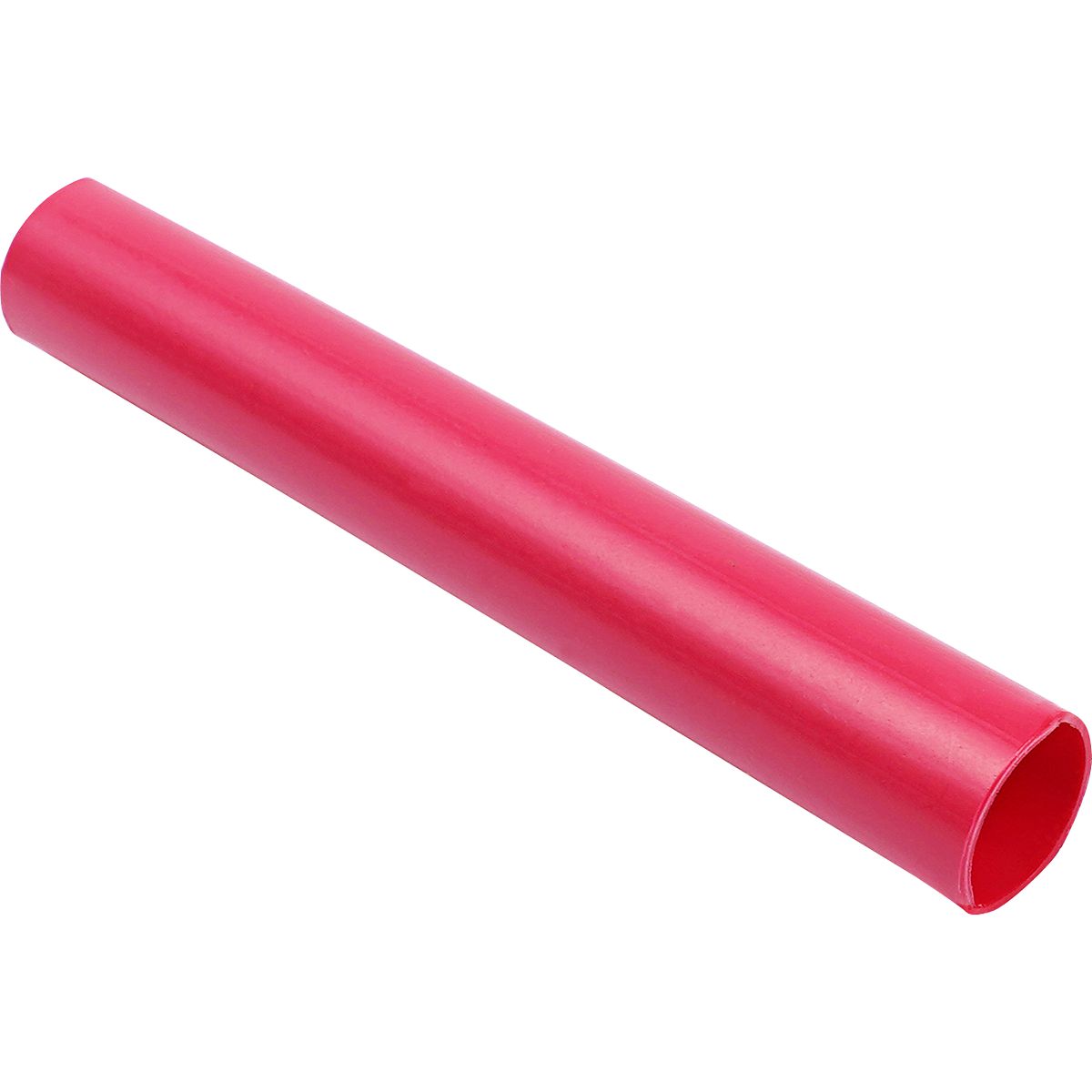

3/8 x 3" Red Thermapod Heat Shrink Tube
(Pack of
10)
SKU:DY21872149 Item#: DY21872149
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
MINI Fuse 20A Yellow
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 4 AWG Black
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID 25'
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21872149 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 12-8 AWG |
| Diameter | 3/8 " |
| Length | 3 " |
| Color | Red |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.135 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Red 3/8 x 3" |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.02 lb |
