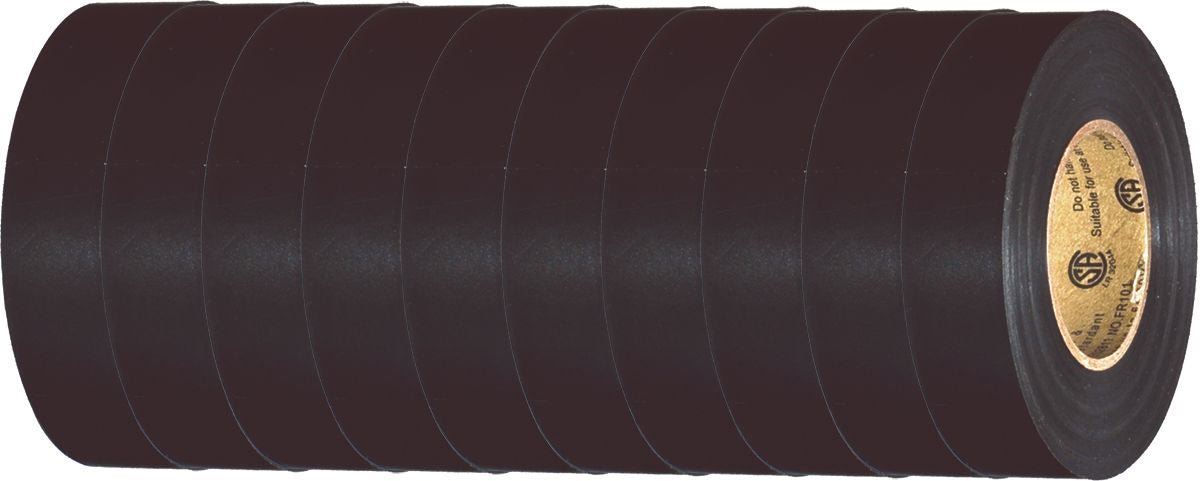

Vinyl Electrical Tape, Black, 3/4" Width, 66' Length, 220% Elongation, 14 to 176°F Temperature Rating
(Pack of
1)
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-40
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Vinyl Electrical Tape White 3/4" x 66'
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Couldn't load pickup availability
Cold Shrink/Fusion Tape Black 1" x 10'
Couldn't load pickup availability
Adhesive Heat Shrink Tubing 22 to 10 AWG Clear/Red
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 9092 01 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | Black |
| Dielectric Strength | 1,042 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 14 to 176 °F |
| Celcius Temperature Range | -10 to 80 °C |
| Elongation | 220 % |
| Adhesion to Steel | 23 in. oz. |
| Adhesion to Backing | 22 in. oz. |
| Breaking Strength | 19 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 10 Pack – Cold- and Weather-Resistant |
| UNSPSC #: | 31201502 |
| TAA Compliant: | No |
| Weight: | 1.96 lb |
