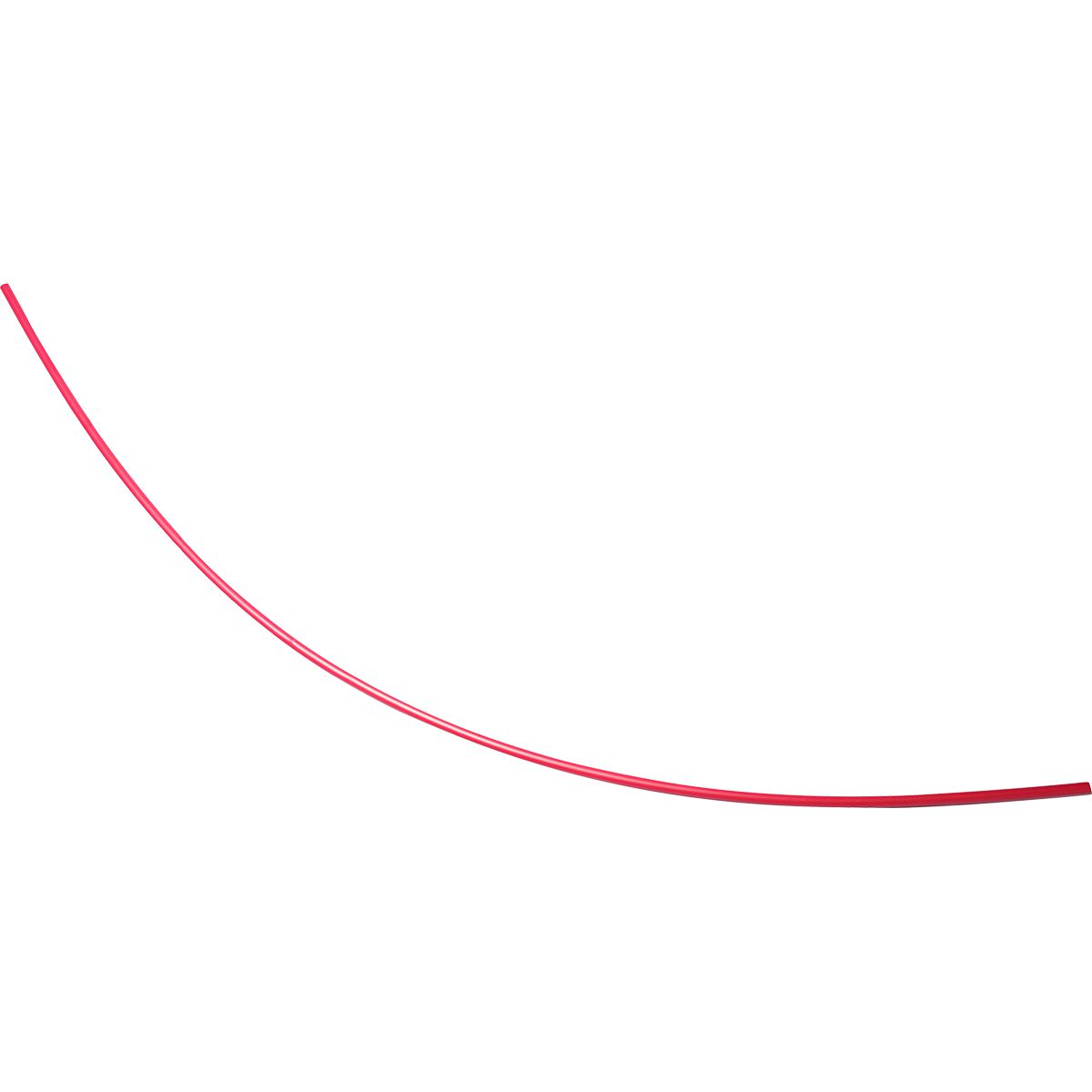

3/8 x 4" Red Thermapod Heat Shrink Tube
(Pack of
1.0)
Thermal Shrinkable Wire Protection
Double Layer . . . Double Protection
• Thermapod™ is an easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire. Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsuliation and strain damage from flexing
• Temperature Rating: -67°F to +230°F/ -55°C to +110°C
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Nylon Cable Tie 6" Black
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
Heat Shrink Tubing Black 0.6 x 12"
Couldn't load pickup availability
Heat Shrink Tubing Clear 1.25 x 12"
Couldn't load pickup availability
Adhesive Heat Shrink Tubing Black 1.25 x 12"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
3310 LED Glow Light 3x AA 6.14" Green/Glow
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Heat Shrink Tubing 20 to 18 AWG Clear
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire ProtectionDouble Layer . . . Double Protection
• Thermapod™ is an easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire. Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsuliation and strain damage from flexing
• Temperature Rating: -67°F to +230°F/ -55°C to +110°C
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21862153 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 12-8 AWG |
| Diameter | 3/8 " |
| Length | 4 ft |
| Color | Red |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.135 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Red 3/8 x 4' |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.65 lb |
