333 Dissimilar Steel Stick Rod Electrode, Flux Coated, 110 to 160 Amps, 35% Elongation, DCRP/AC Polarity, 5/32"
(Pack of
5)
SKU:CW1047 Item#: CW1047
All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.

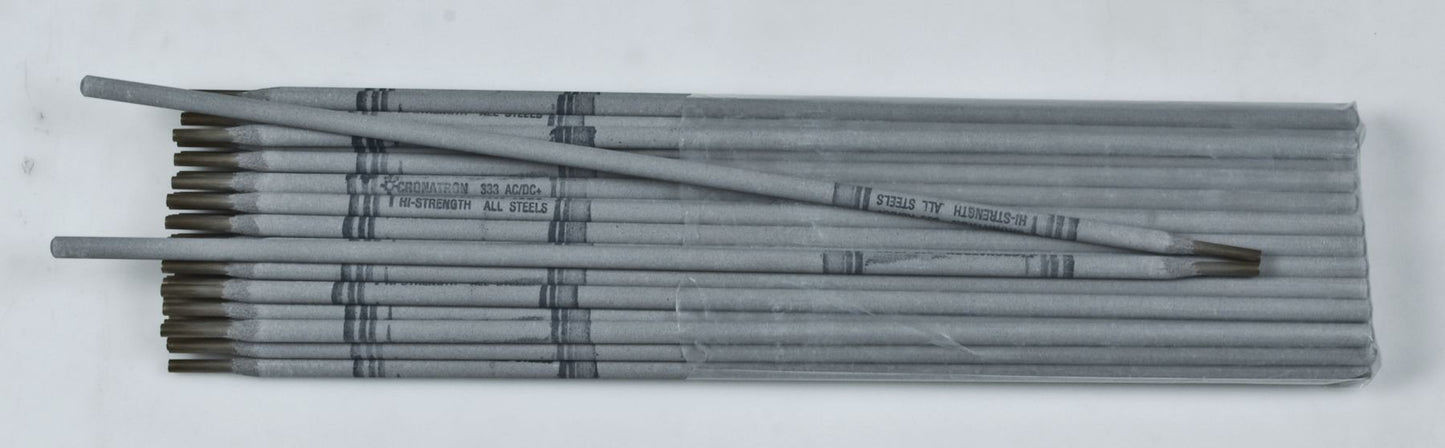

333 Electrode – 5/32" Dia.
Cronatron Alloy
High-Strength Alloy for Broken Stud Extraction
110A – 160A (DCRP/AC)
Flat or Horizontal
To Extract 5/8" and Over
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
• Moisture-Resistant Coating
NOTE: To extract large studs or studs broken in deep, weld in stages to avoid overheating.
Tensile Strength: 125,000 PSI
Yield Strength: 100,000 PSI
Elongation: Up to 35%
Hardness: 235 BHN
Polarity: AC or DC Reverse
Usage ProcedureUse AC or DC reverse polarity. Maintain a medium to short arc. A stringer or weave bead is recommended for flat and horizontal welds.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-4
Frequently Bought Together
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64 2LBS EA
Couldn't load pickup availability
3333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/16"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.333 Electrode – 5/32" Dia.
Cronatron Alloy
High-Strength Alloy for Broken Stud Extraction
110A – 160A (DCRP/AC)
Flat or Horizontal
To Extract 5/8" and Over
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
• Moisture-Resistant Coating
NOTE: To extract large studs or studs broken in deep, weld in stages to avoid overheating.
Tensile Strength: 125,000 PSI
Yield Strength: 100,000 PSI
Elongation: Up to 35%
Hardness: 235 BHN
Polarity: AC or DC Reverse
Usage ProcedureUse AC or DC reverse polarity. Maintain a medium to short arc. A stringer or weave bead is recommended for flat and horizontal welds.
Technical Specifications
| Item#: | CW1047 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 125,000 PSI |
| Yield Strength | 100,000 PSI |
| Elongation | 35 % |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
