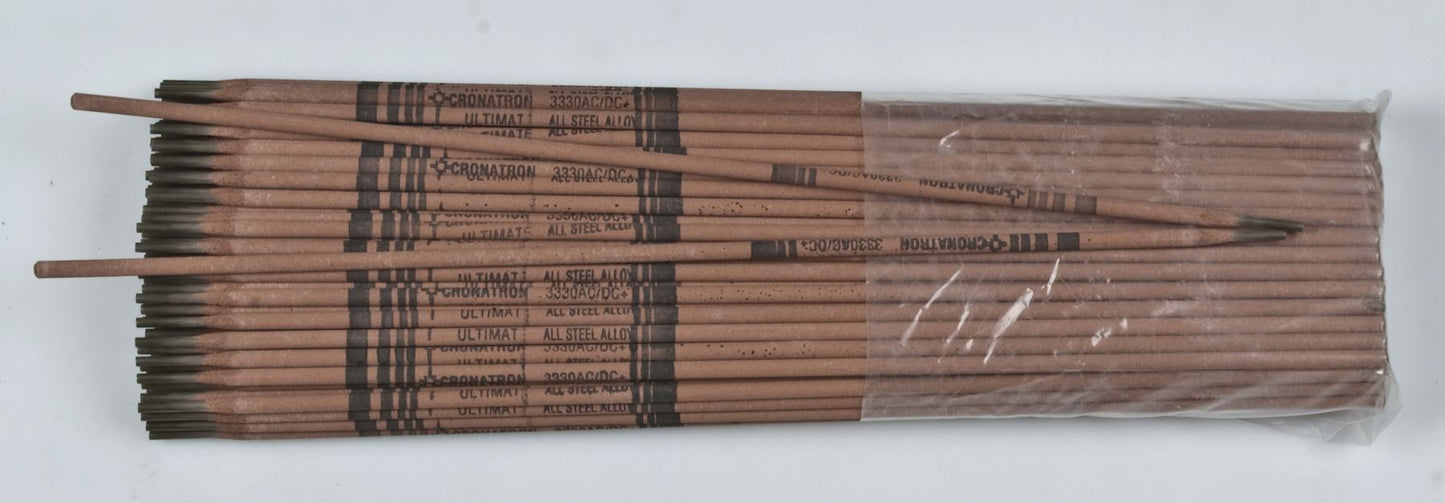

3330 Dissimilar Steel Stick Rod Electrode 3/32"
(Pack of
5.0)
The 3330 Dissimilar Steel Stick Rod Electrode is your go-to solution for challenging welds that demand precision and reliability. Specially engineered for joining different types of weldable steels, it delivers high-strength welds with exceptional resistance to cracking, even in demanding positions like vertical-up or overhead. Ideal for automotive repairs, welding rotors and blades, and joining pump and cast steel housings, this steel joining wire ensures superior performance in maintenance and repair operations. When durability and versatility are essential, the 3330 Electrode never lets you down.
3330 Electrode – 3/32" Dia.
Specialty Alloy
High-Strength Alloy for Broken Stud Extraction
50A – 75A (DCRP/AC)
Overhead
Overhead Removal of All 1/4" and Over
• Tensile Strength: 127,000
• PSIElongation: 37%
• Hardness: 235
• BHNPolarity: AC or DC Reverse
Exceptional out-of-position welding
Usage ProcedureUse AC or DC reverse polarity. Electrode may be used in a contact “drag” fashion or by holding a short arc. Stringer beads or a slight weave is best. Remove slag between passes. When welding alloyed or tool steel, preheat according to base metal requirements. For vertical-up welding, use a 1/8" electrode at approximately 65 to 70 amps or a 5/32" electrode at 75 to 85 amps. Use a weave “ledge” technique, pausing momentarily at end of weaves.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-5
Frequently Bought Together
Xl Gold All Steel Duplex Electrode 1/8
Couldn't load pickup availability
3330 Dissimilar Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 1/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
657 Premium Bronze Solid Mig Wire .035X30LB SPL
Couldn't load pickup availability
665 Copper and Brass TIG Wire 1/8"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
8-7502 Plasma Cutting Electrode
Couldn't load pickup availability
192047 Plasma Cutting Electrode
Couldn't load pickup availability
8-7500 Plasma Cutting Shield Cup
Couldn't load pickup availability
Product Description
The 3330 Dissimilar Steel Stick Rod Electrode is your go-to solution for challenging welds that demand precision and reliability. Specially engineered for joining different types of weldable steels, it delivers high-strength welds with exceptional resistance to cracking, even in demanding positions like vertical-up or overhead. Ideal for automotive repairs, welding rotors and blades, and joining pump and cast steel housings, this steel joining wire ensures superior performance in maintenance and repair operations. When durability and versatility are essential, the 3330 Electrode never lets you down.3330 Electrode – 3/32" Dia.
Specialty Alloy
High-Strength Alloy for Broken Stud Extraction
50A – 75A (DCRP/AC)
Overhead
Overhead Removal of All 1/4" and Over
• Tensile Strength: 127,000
• PSIElongation: 37%
• Hardness: 235
• BHNPolarity: AC or DC Reverse
Exceptional out-of-position welding
Usage ProcedureUse AC or DC reverse polarity. Electrode may be used in a contact “drag” fashion or by holding a short arc. Stringer beads or a slight weave is best. Remove slag between passes. When welding alloyed or tool steel, preheat according to base metal requirements. For vertical-up welding, use a 1/8" electrode at approximately 65 to 70 amps or a 5/32" electrode at 75 to 85 amps. Use a weave “ledge” technique, pausing momentarily at end of weaves.
Technical Specifications
| Item#: | CW1874 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 125,000 PSI |
| Yield Strength | 100,000 PSI |
| Elongation | 35 % |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.23 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
