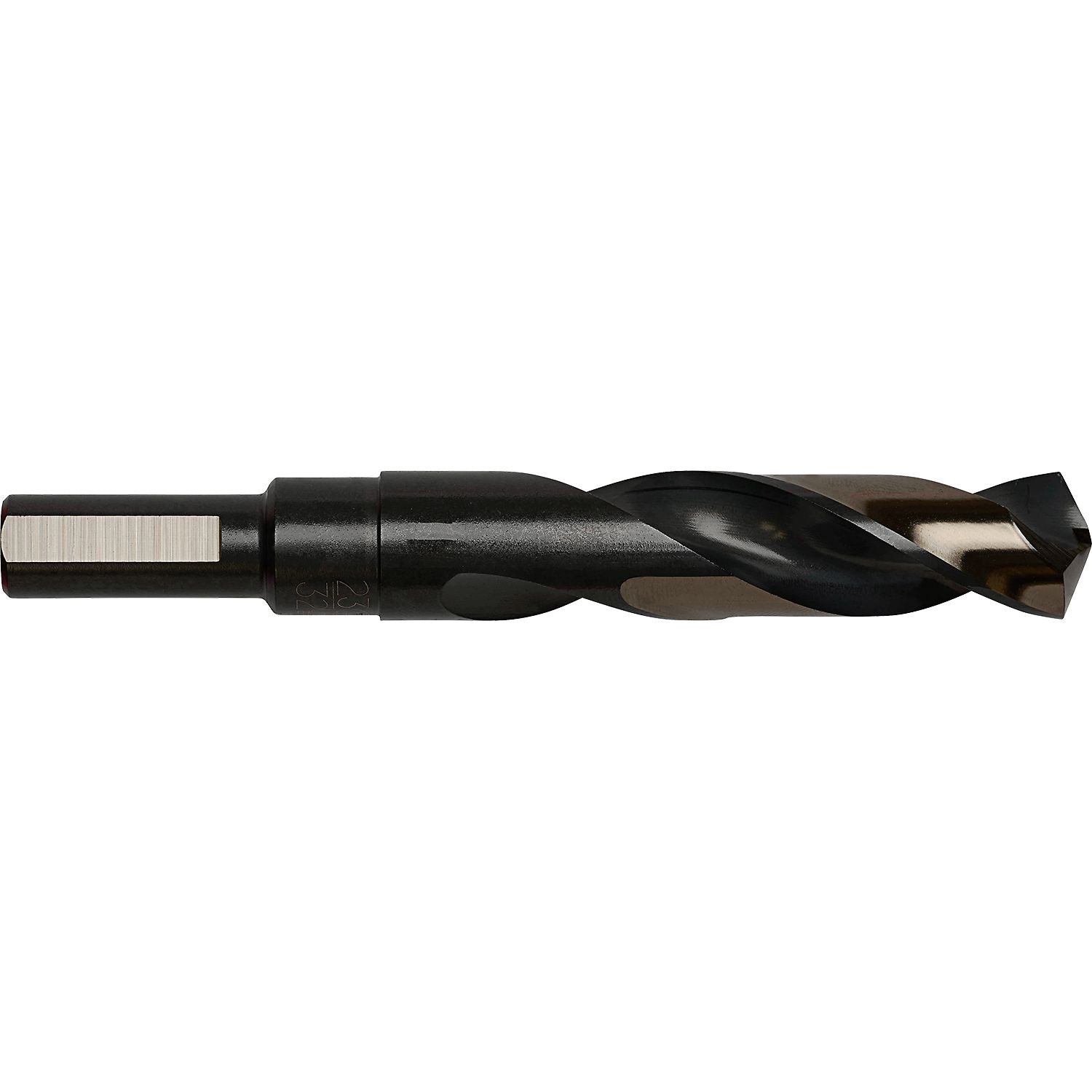

45/64" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point, W/Flats, 6" Overall Length, Silver & Black
(Pack of
1)
SKU:PM08200367 Item#: PM08200367
• Manufactured from molybdenum high speed tool steel for long life
• 1/2" reduced shank with flats - can be used in keyed or keyless chucks without slipping
• Silver with black-oxide flutes to hold lubricant at the cutting surface
• 118° point for fast cutting
• Available in an eight piece assortment for sizes 9/16" to 1" in. 1/16" increments
Specifications
• Material: Molybdenum high speed steel
• Finish: Silver and black-oxide
• Point: 118° standard
• Overall Length: 6"
• Max. Depth of Cut: 2.1"
• Length of Flats on Shank: 1"
• Shank Diameter: 1/2"
Applications
Steel, aluminum, cast steel, copper, brass, malleable iron, bronze, cast iron
Note: A pilot hole is recommended when using reduced shank bits
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/32"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 25/64"
Couldn't load pickup availability
Mechanic's Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Mechanic's Length Drill Bit Set 29Pcs
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/32"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Silver and Deming Drill Bit HSS 51/64"
Couldn't load pickup availability
Cryoboost 15/16" Reduced Shank, Stepped Split Point
Couldn't load pickup availability
Silver and Deming Drill Bit HSS 5/8"
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
57Pc Torsion Impact Bit Master Set
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 1/4-20
Couldn't load pickup availability
SAE Flat Washer 3/4" 13/16" ID 1-1/2" OD
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 1/4-20
Couldn't load pickup availability
SAE Flat Washer 3/4" 13/16" ID 1-1/2" OD
Couldn't load pickup availability
Product Description
• Manufactured from molybdenum high speed tool steel for long life• 1/2" reduced shank with flats - can be used in keyed or keyless chucks without slipping
• Silver with black-oxide flutes to hold lubricant at the cutting surface
• 118° point for fast cutting
• Available in an eight piece assortment for sizes 9/16" to 1" in. 1/16" increments
Specifications
• Material: Molybdenum high speed steel
• Finish: Silver and black-oxide
• Point: 118° standard
• Overall Length: 6"
• Max. Depth of Cut: 2.1"
• Length of Flats on Shank: 1"
• Shank Diameter: 1/2"
Applications
Steel, aluminum, cast steel, copper, brass, malleable iron, bronze, cast iron
Note: A pilot hole is recommended when using reduced shank bits
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | PM08200367 |
|---|---|
| Drill Length | Silver & Deming |
| Drill Type | Fractional |
| Type | General Purpose |
| Material | High Speed Steel |
| Finish | Silver & Black |
| Diameter | 45/64 " |
| Decimal Equivalent | 0.7031 " |
| Point | 118 ° |
| Shank Size | 1/2 " |
| Flats | 3 |
| Overall Length | 6 " |
| UNSPSC #: | 23241636 |
| TAA Compliant: | No |
| Weight: | 0.42 lb |
