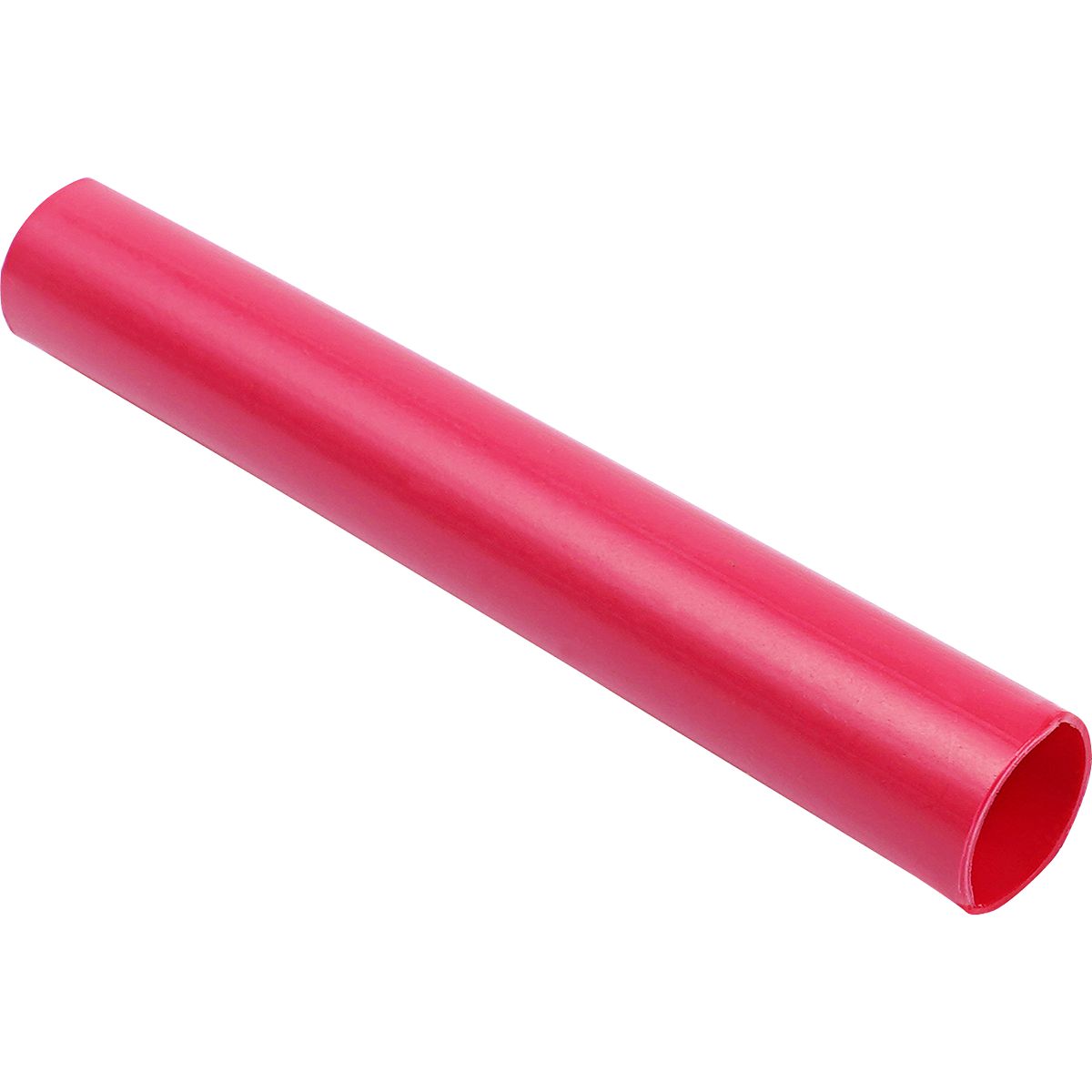

3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
(Pack of
10)
SKU:DY21880008 Item#: DY21880008
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Red
Couldn't load pickup availability
Heat Shrink Tubing Black 0.6 x 12"
Couldn't load pickup availability
Insulform Heat Shrink Tubing 6 to 2/0 AWG Black
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Cryo V Burr Tri Pak
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
Industrial-Grade High Solids Spray Paint, Gloss Black
Couldn't load pickup availability
Cryo V Burr Tri Pak
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
Industrial-Grade High Solids Spray Paint, Gloss Black
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Rubber Grommet 11/16" ID
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 4 AWG Black
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880008 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 12-8 AWG |
| Diameter | 3/8 " |
| Length | 3 " |
| Color | Red |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.135 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 3/8 x 3 Red |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.035 lb |
