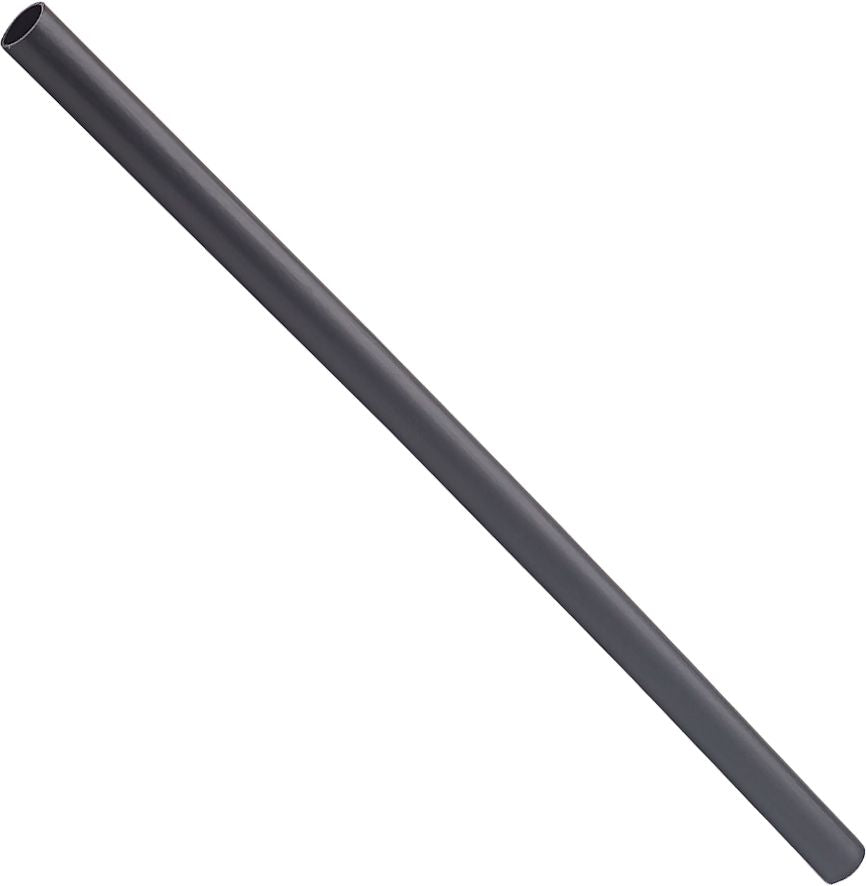

Heat Shrink Tubing, 20 to 14 AWG, Black, 6" Length, 0.187" ID Before and 0.06" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of
10)
SKU:51879 Item#: 51879
Protect and insulate your wiring projects with this Heat Shrink Tubing. Designed with a 2.5:1 shrink ratio and medium wall thickness, this tubing bridges the gap between thin and heavy-wall alternatives, making it perfect for light-duty electrical and mechanical applications. Its dual-layer construction combines high-grade polyolefin with a heat-activated adhesive sealant, ensuring a moisture-tight seal that withstands temperatures up to 230°F (110°C) and remains flexible even at –67°F (–55°C). Trusted by auto technicians and electricians alike, this electrical shrink tube provides superior corrosion, fluid, and fungus resistance while meeting MIL-1-23053/4 specifications. An essential tool, it delivers unmatched durability and protection with every application.
• 6" length
• Non-corrosive
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-33
Frequently Bought Together
MINI Fuse 10A Red
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
DOT Swivel Branch Tee Male Brass 1/2 x 1/2 x 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14
Couldn't load pickup availability
DOT Branch Tee Male Brass 3/8 x 3/8 x 3/8-18
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Clear
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, Large, Box
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.625" ID 25'
Couldn't load pickup availability
Product Description
Protect and insulate your wiring projects with this Heat Shrink Tubing. Designed with a 2.5:1 shrink ratio and medium wall thickness, this tubing bridges the gap between thin and heavy-wall alternatives, making it perfect for light-duty electrical and mechanical applications. Its dual-layer construction combines high-grade polyolefin with a heat-activated adhesive sealant, ensuring a moisture-tight seal that withstands temperatures up to 230°F (110°C) and remains flexible even at –67°F (–55°C). Trusted by auto technicians and electricians alike, this electrical shrink tube provides superior corrosion, fluid, and fungus resistance while meeting MIL-1-23053/4 specifications. An essential tool, it delivers unmatched durability and protection with every application.• 6" length
• Non-corrosive
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 51879 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 20-14 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .187 " |
| I.D. After Shrinkage | .060 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.043 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 450 % |
| Tensile Strength | 2,600 PSI |
| Heat Shock | 168 hours at 482 degrees F |
| Secant Modulus | 16,000 PSI |
| Longitudinal Change | Less than 10% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
