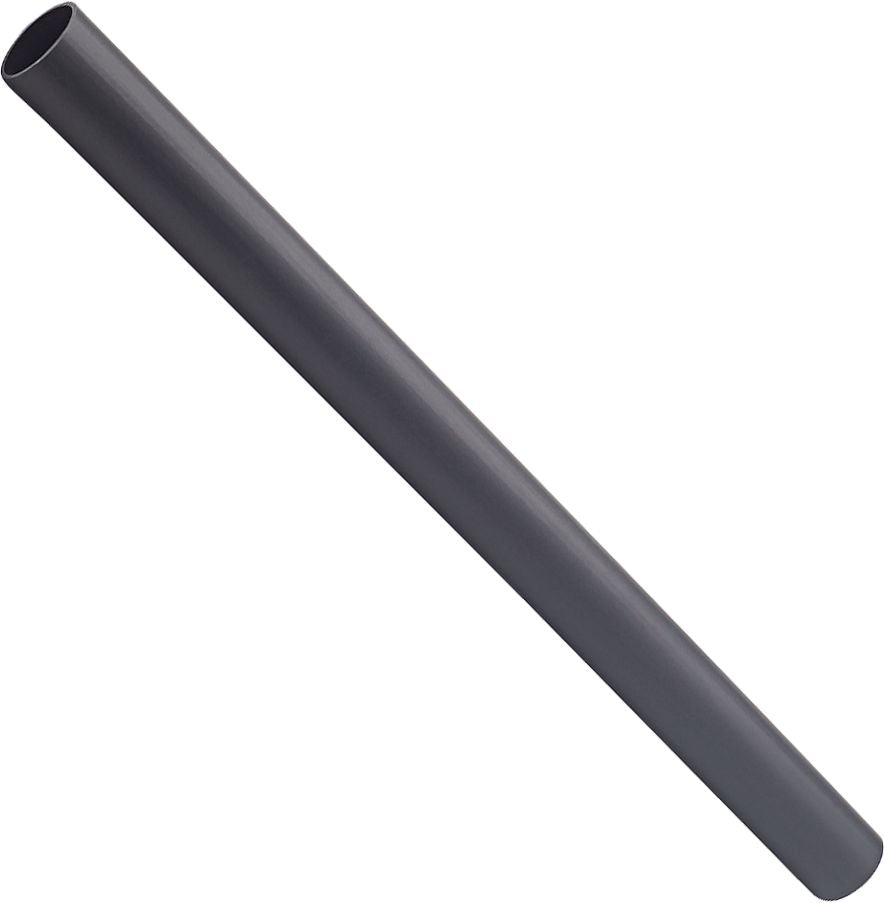

Heat Shrink Tubing, 12 to 6 AWG, Black, Various, 6" Length, 0.375" ID Before and 0.135" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of
10)
SKU:51881 Item#: 51881
• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-33
Frequently Bought Together
Cable Tie 14.19" Black
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 3/8-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 1/2-20
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/8" x 1/2-14
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Adhesive Heat Shrink Tubing 22 to 10 AWG Clear/Red
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.5" ID 25'
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.35" ID
Couldn't load pickup availability
Product Description
• 2.5:1 shrink ratio• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 51881 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 12-6 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .375 " |
| I.D. After Shrinkage | .135 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.050 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 450 % |
| Tensile Strength | 2,600 PSI |
| Heat Shock | 168 hours at 482 degrees F |
| Secant Modulus | 16,000 PSI |
| Longitudinal Change | Less than 10% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
