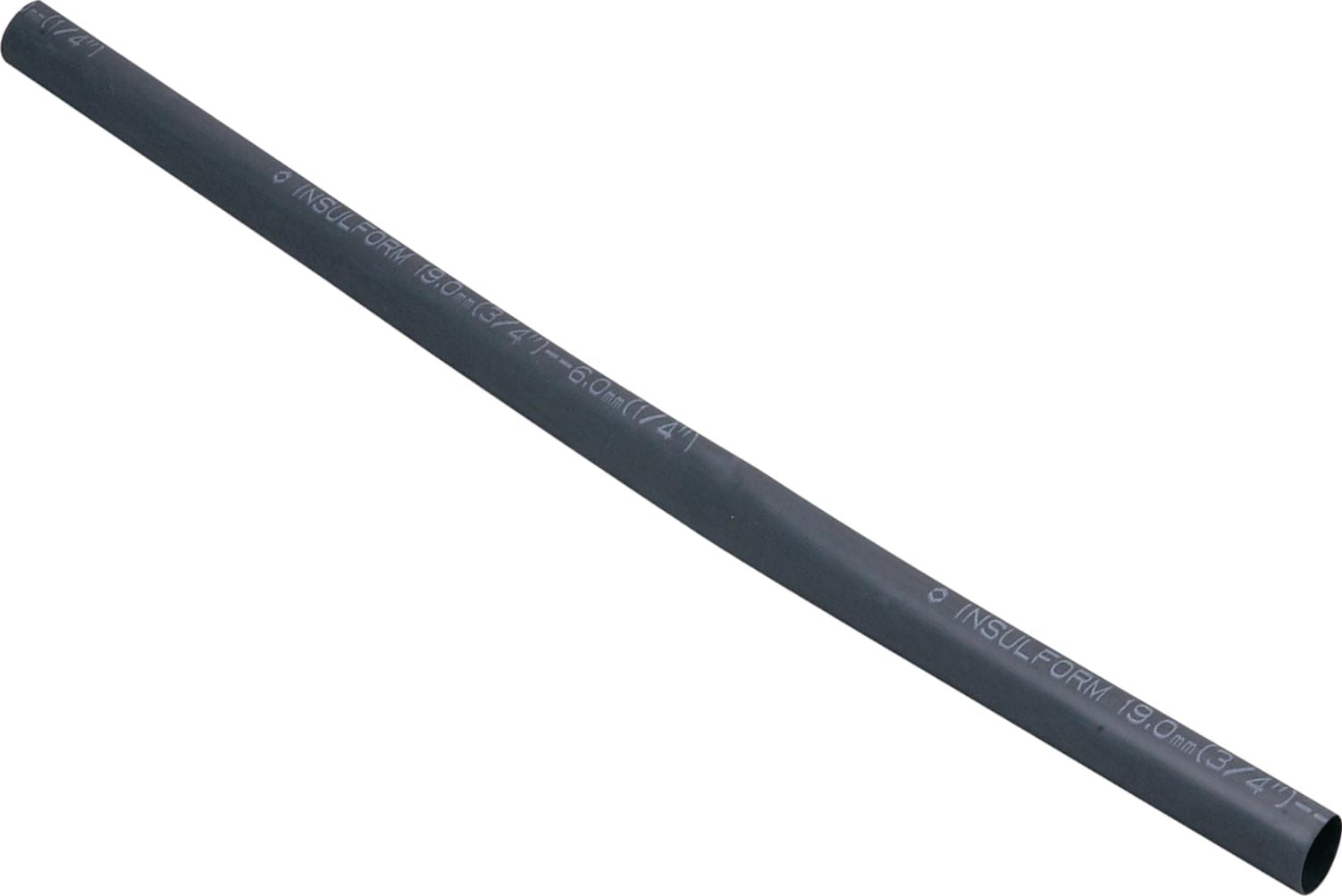

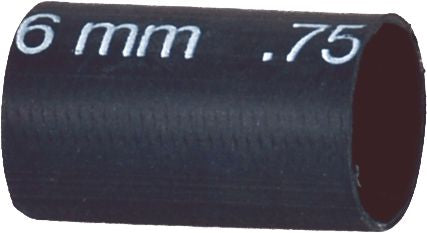

Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
(Pack of 6)

Lawson Products

Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

Read More

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Frequently Bought Together


Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Non-Chlorinated Brake Parts Cleaner 14oz

Item#: KT14126

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Rechargeable Penlight Flashlight

Item#: 1635596

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Yellow

Item#: 86506

Heat Shrink Tubing 8 to 2 AWG Clear

Item#: 89467

Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red

Item#: 87752

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

Vision Pro Super

Item#: DY21061040

Butt Connector 22 to 18 AWG Red

Item#: 92822

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Non-Chlorinated Brake Parts Cleaner 14oz

Item#: KT14126

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Split Wire Loom Polyethylene Black 1" ID 25'

Item#: 97364

Heat Shrink Tubing 30 to 18 AWG Black

Item#: 51878

Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Red

Item#: 91661

Product Description

Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

Technical Specifications

Item#: 86503
Type Pre-Cut
Style Heavy Wall
Wire Gauge Coverage 8-1 AWG
Length 6 "
Color Black
I.D. Before Shrinkage .75 "
I.D. After Shrinkage .220 "
Shrink Ratio 3 to 1
Wall Thickness After Shrinkage 0.090 "
Voltage Rating 600 V
Temperature Rating 194 °F
Elongation 425 %
Tensile Strength 1,542 PSI
Approvals UL, CSA
UNSPSC #: 39121723
TAA Compliant: Yes
Weight: 0.21 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
