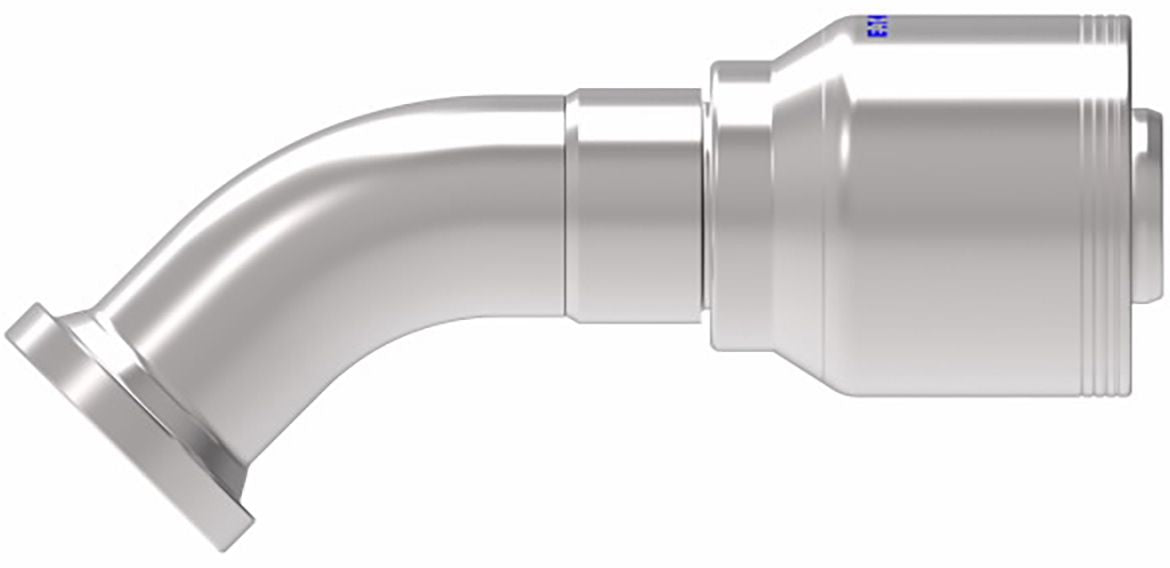

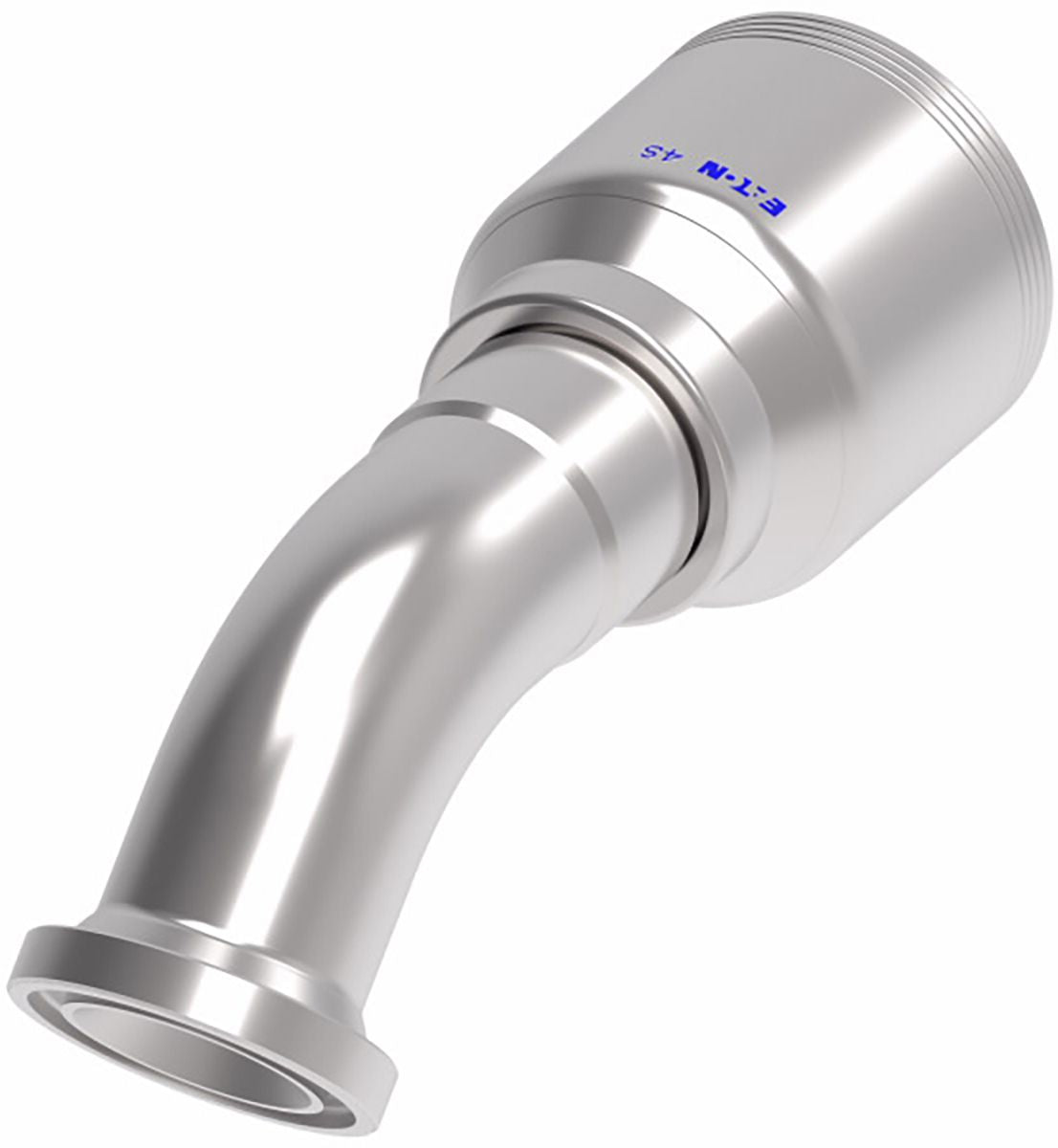

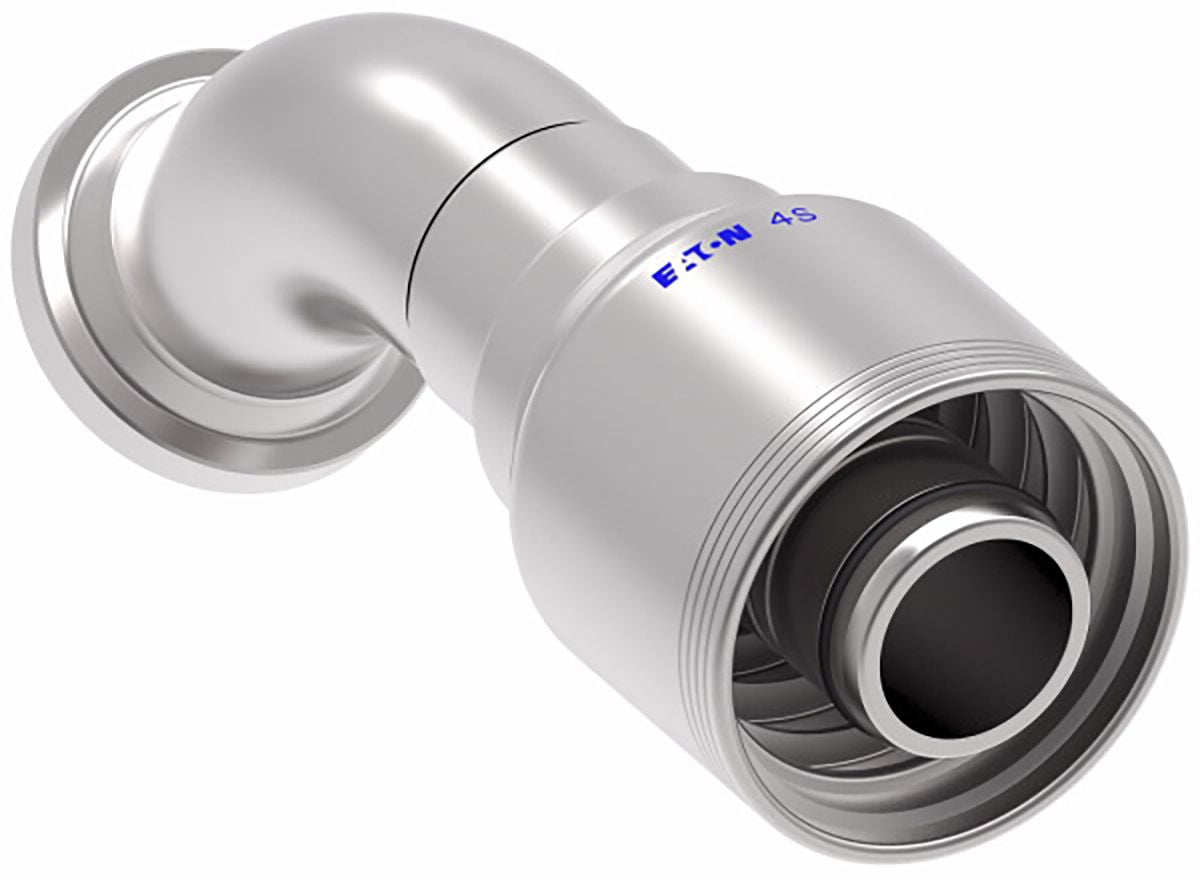

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 30°, SAE 61, 1-1/4 (-20) x 2.38" (-24)
(Pack of 1)

Item#: 1543099

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-27

Frequently Bought Together


Z Series Crimp-On Elbow Flare 45° 1/2" x 3/4-16

Item#: 16636

Crimp-On Hose Coupling 3/8" x 3/8-18

Item#: 88311KH

Z Series Crimp-On Elbow Flare 90° 1/4" x 7/16-20

Item#: 16643

Straight Thread O-Ring Buna-N 0.755 x 0.097"

Item#: 93618

Z Series Crimp-On Hose End 3/4" x 1-3/16-12

Item#: 16716

Crimp-On Coupling 1/4" x 9/16-18

Item#: 51140KH

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610

Hose Clamp 304 SS 11/16 to 1-1/2"

Item#: 86727

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Cable Tie 13.38" Black

Item#: 85490

Master Series Penlight Flashlight

Item#: 1635602

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543099
Manufacturer Model #: 4S24FLF20
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1-1/4 (-20) "
Dash Size -20
Fitting End Type Flanged
Fitting Angle 30 °
Fitting Dimension B (Working End) 2.38 (-24)
Weatherhead No. 4S24FLF20
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 5.41 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 2.31 lb
