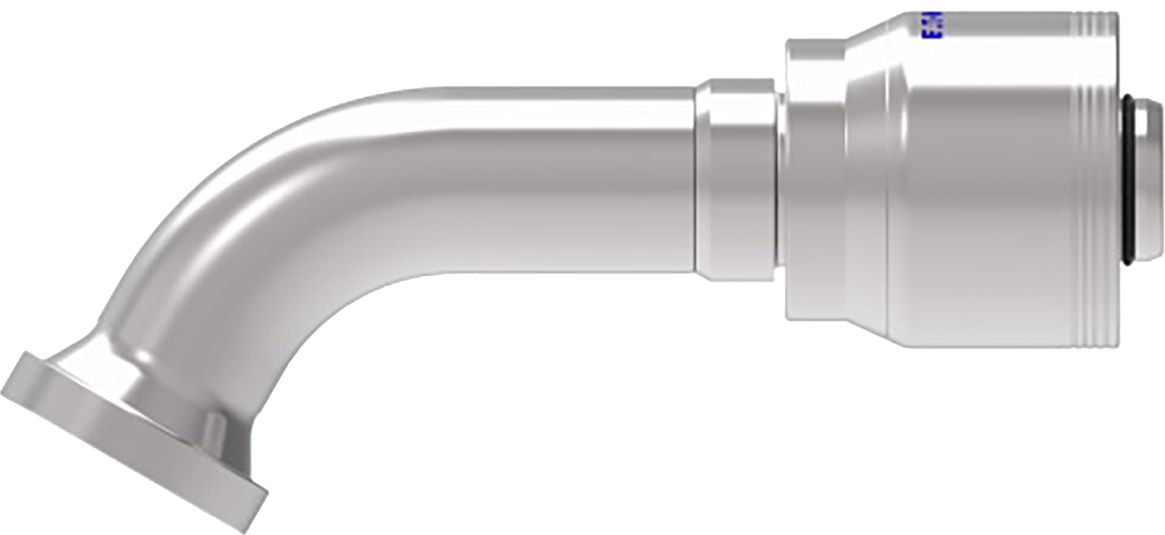

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE 61, 1-1/4 (-20) x 2.38" (-24)
(Pack of
1)
SKU:1647728 Item#: 1647728
Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Crimp-On Hose Coupling 1/4" x 9/16-18
Couldn't load pickup availability
Crimp-On Coupling 3/8" x 11/16-16
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 7/8-14
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Couldn't load pickup availability
Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Universal Socket Set, Deep, 1/2" Drive, 24pc
Couldn't load pickup availability
8Pc Metric Flare Nut Wrench Set
Couldn't load pickup availability
8Pc SAE Mini Combination Wrench Set
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Mega-Stick
Couldn't load pickup availability
SAE Flat Washer Grade 8 Steel 1/4"
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
Couldn't load pickup availability
Mega-Stick
Couldn't load pickup availability
SAE Flat Washer Grade 8 Steel 1/4"
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
Couldn't load pickup availability
Product Description
Compatible Hoses:• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1647728 |
|---|---|
| Manufacturer Model #: | 4S24FLG20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Dash Size | -20 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 60 ° |
| Weatherhead No. | 4S24FLG20 |
| Fitting Series | 4S Series |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTE |
| UNSPSC #: | 27121705 |
| TAA Compliant: | No |
| Weight: | 2.44 lb |
