Home Air Brake Standard DOT Compression Connector Male Brass 3/8 x 1/4"
Air Brake Standard

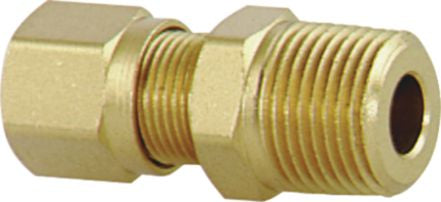

DOT Air Brake Compression Connector for Nylon Tubing, Male, Brass, 3/8" x 1/4-18, Tube x Pipe
(Pack of 5)

Item#: 84268

Lawson

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


DOT Compression Elbow Male 45° Brass 3/8 x 3/8"

Item#: 84311

DOT Compression Connector Male Brass 5/8 x 1/2"

Item#: 84273

DOT Compression Elbow Male 45° Brass 1/4 x 1/4"

Item#: 96878

DOT Compression Connector Male Brass 1/4 x 1/8"

Item#: 84266

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 91788

DOT Union Tee Brass 1/4 x 1/4 x 1/4"

Item#: 57502

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

Item#: 84284

Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"

Item#: 88719

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

Utility Knife, Folding , 4" Closed

Item#: FA5474

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

Butt Connector 16 to 14 AWG Blue

Item#: 1145786

DOT Union Nylon 1/4 x 1/4"

Item#: 91819

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: 11915

Product Description

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 84268
Fitting Type Compression - Nylon
Style DOT
Material Brass
Configuration Male Connector
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 1/4-18 "
Type Compression
UNSPSC #: 25171700
TAA Compliant: No
Weight: 0.4 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
