Air Brake Standard

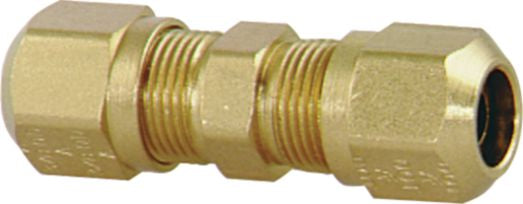

DOT Air Brake Compression Union for Nylon Tubing, Brass, 1/2 x 1/2", Tube x Tube
(Pack of 2)

Item#: 84255

Lawson

Simplify tough jobs with our compression air connector, the versatile solution for joining pipes and tubing without soldering or welding. Designed for plumbing, HVAC, gas lines, and hydraulic applications, this connector ensures a reliable seal while saving you time and effort. Easy to install and remove with just a spanner or wrench, it eliminates the need for heat—making it safer to use in tight or heat-sensitive spaces. Durable and efficient, it’s the go-to tool professionals trust for both convenience and quality results.
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


DOT Compression Elbow Male 45° Brass 1/2 x 1/2"

Item#: 84314

DOT Compression Sleeve Brass 3/8"

Item#: 1650

DOT Compression Connector Male Brass 1/2 x 3/8"

Item#: 97259

Heavy-Duty Grease Gun Hydraulic Coupler

Item#: 6226

DOT Connector Male Brass 1/2 x 3/8-18

Item#: 57508

DOT Compression Nut Brass 3/8"

Item#: 84327

DOT Connector Male Brass 3/8 x 3/8-18

Item#: 57507

Silicone Heater/Coolant Hose Clamp 7/16 to 25/32"

Item#: 90781

Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"

Item#: 90782

Pipe Hex Nipple Brass 1/4-18 x 1/4-18

Item#: 5293

MegaCrimp Crimp-On Coupling 3/8" x 9/16-18

Item#: 62881

Forged Body Ball Valve Brass 1/2-14 x 1/2-14

Item#: 63136

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Nutsetter & Bit Set, Magnetic, 22pc

Item#: FA5737

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud

Item#: 1495166

DOT Union Brass 1/2 x 1/2"

Item#: 57501

Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"

Item#: 88718

Product Description

Simplify tough jobs with our compression air connector, the versatile solution for joining pipes and tubing without soldering or welding. Designed for plumbing, HVAC, gas lines, and hydraulic applications, this connector ensures a reliable seal while saving you time and effort. Easy to install and remove with just a spanner or wrench, it eliminates the need for heat—making it safer to use in tight or heat-sensitive spaces. Durable and efficient, it’s the go-to tool professionals trust for both convenience and quality results.
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 84255
Fitting Type Compression - Nylon Tubing
Style DOT
Material Brass
Configuration Union
Connection Type A x B Tube x Tube
Fitting Dimension A 1/2 "
Fitting Dimension B 1/2 "
Size 1/2
Type Compression
UNSPSC #: 25171700
TAA Compliant: No
Weight: 3.4 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
