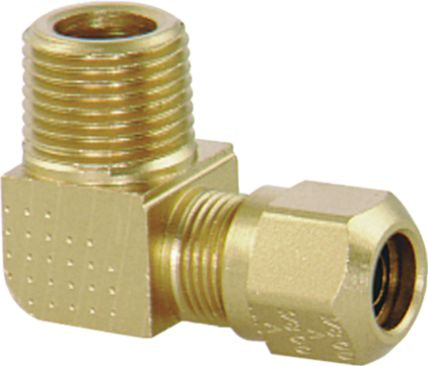

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
(Pack of 5.0)

Lawson

Easily tackle piping challenges with a durable and reliable brass compression elbow. Designed to join pipes at a 90-degree angle, this PTC fitting provides a seamless solution for changing pipe direction, even in areas where soldering is impractical or unsafe. The compression system—using ferrules and nuts—ensures a secure, leak-resistant connection without the need for welding or soldering. Crafted from corrosion-resistant brass, it offers long-lasting strength and cost-effectiveness, making it an ideal choice for plumbers, contractors, and industrial applications involving water or fluid systems.
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


DOT Compression Connector Male Brass 3/8 x 1/2"

Item#: 1653

DOT Compression Connector Male Brass 3/8 x 3/8"

Item#: 1655

DOT Compression Elbow Male 90° Brass 1/2 x 1/2"

Item#: 84288

DOT Compression Elbow Male 45° Brass 3/8 x 1/4"

Item#: 84310

DOT Compression Nut Brass 3/8"

Item#: 84327

DOT Compression Elbow Male 90° Brass 1/4 x 1/4"

Item#: 84283

DOT Compression Connector Male Brass 1/4 x 1/4"

Item#: 84267

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18

Item#: 27202

Z Series Crimp-On Hose End 3/4" x 1-1/16-12

Item#: 16623

MegaCrimp Crimp-On Coupling 3/8" x 9/16-18

Item#: 62881

Z Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Connector Housing 20A 2-Wire Tower

Item#: 96898

Super 77 Miniature Hose Clamp SS 7/32 to 5/8"

Item#: 86327

Ball Check Grease Fitting Straight

Item#: 6200

Product Description

Easily tackle piping challenges with a durable and reliable brass compression elbow. Designed to join pipes at a 90-degree angle, this PTC fitting provides a seamless solution for changing pipe direction, even in areas where soldering is impractical or unsafe. The compression system—using ferrules and nuts—ensures a secure, leak-resistant connection without the need for welding or soldering. Crafted from corrosion-resistant brass, it offers long-lasting strength and cost-effectiveness, making it an ideal choice for plumbers, contractors, and industrial applications involving water or fluid systems.
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 84284
Class Air Brake Ftgs/Tubing/Accessories
Fitting Type Compression - Nylon
Style DOT
Material Brass
Configuration Male Elbow 90 Degrees
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 1/4-18
Size 3/8X1/4
UNSPSC #: 25171700
TAA Compliant: No
Weight: 0.53 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
