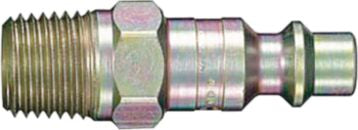

Heavy-Duty Quick Disconnect Plug, Steel, Standard Industrial, Male NPTF, 1/4" Body Size, 1/4-18" Thread Size
(Pack of
2)
SKU:11915 Item#: 11915
Easily connect and disconnect to fluid lines with this handy quick disconnect plug. Stainless steel design resists corrosion and a built-in sleeve guard minimizes accidental disconnect. This heavy-duty plug features a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Use with hydraulic systems, pneumatic tools, pressure washers and other applications where frequent hose disconnections are required.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Standard or Industrial Interchange Design
• Sized to fit 1/4-inch couplers and fittings
Standard or Industrial Interchange Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-157
Frequently Bought Together
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
PTFE Pipe Thread Seal White 1/2 x 260"
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, X-Large, Box
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Clear
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Product Description
Easily connect and disconnect to fluid lines with this handy quick disconnect plug. Stainless steel design resists corrosion and a built-in sleeve guard minimizes accidental disconnect. This heavy-duty plug features a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Use with hydraulic systems, pneumatic tools, pressure washers and other applications where frequent hose disconnections are required.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Standard or Industrial Interchange Design
• Sized to fit 1/4-inch couplers and fittings
Standard or Industrial Interchange Design
Technical Specifications
| Item#: | 11915 |
|---|---|
| Description | Heavy-Duty Quick Disconnect |
| Type | Nipple |
| Style | Standard Industrial |
| Body Size | 1/4 " |
| Thread Style | Male NPT |
| Thread Size | 1/4-18 |
| Working Pressure | 300 PSI |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
