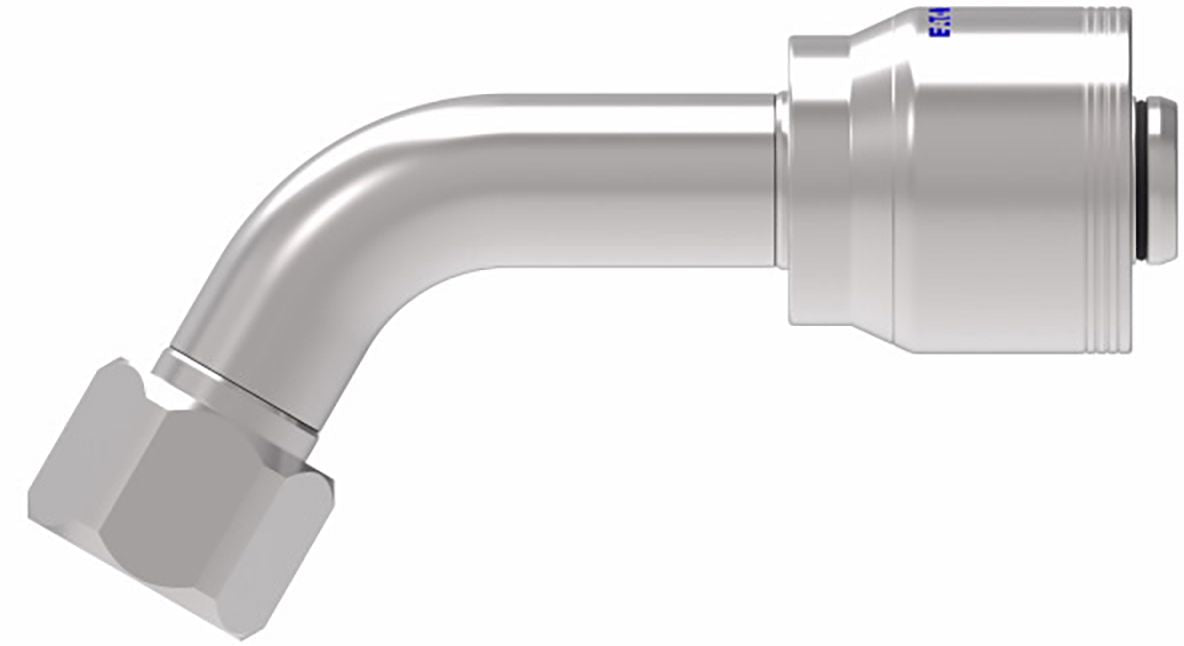

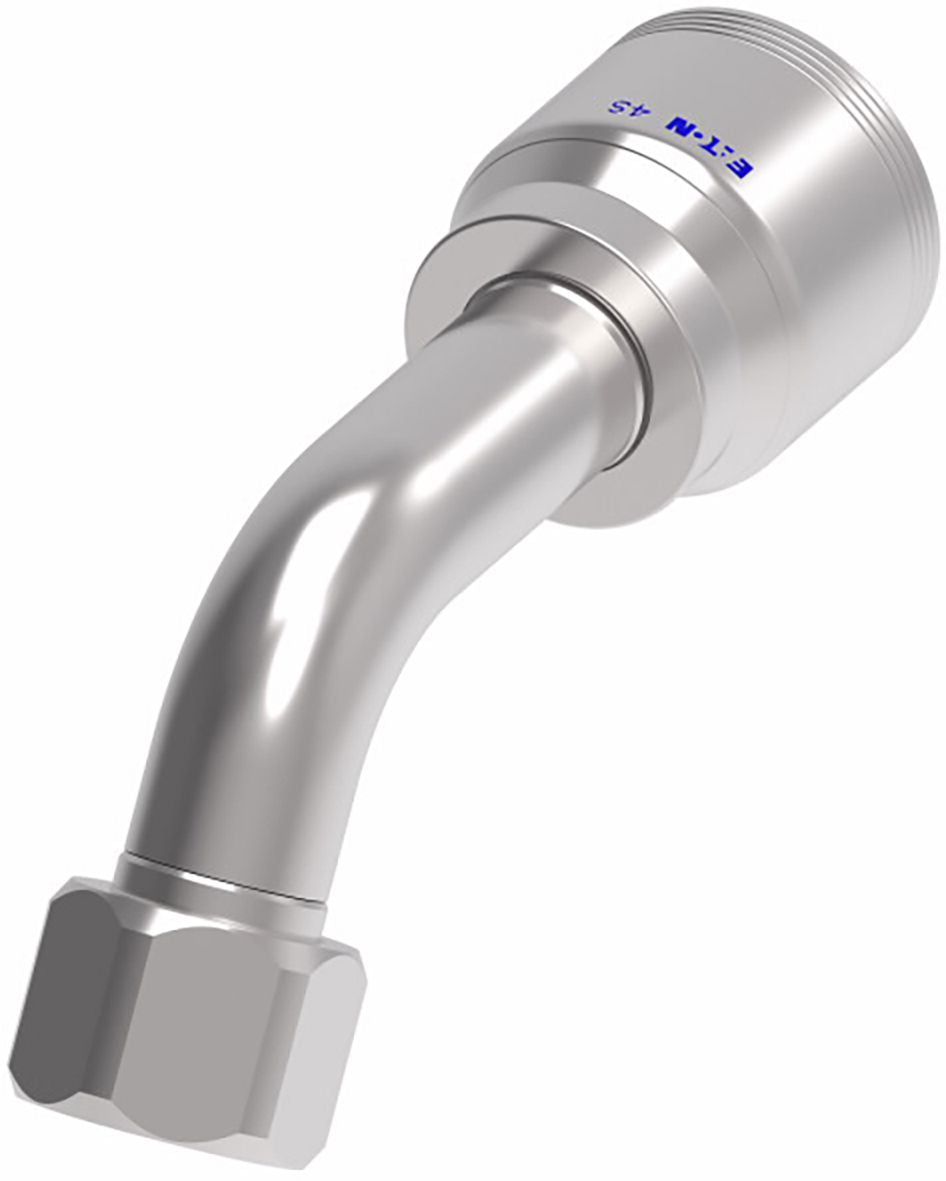

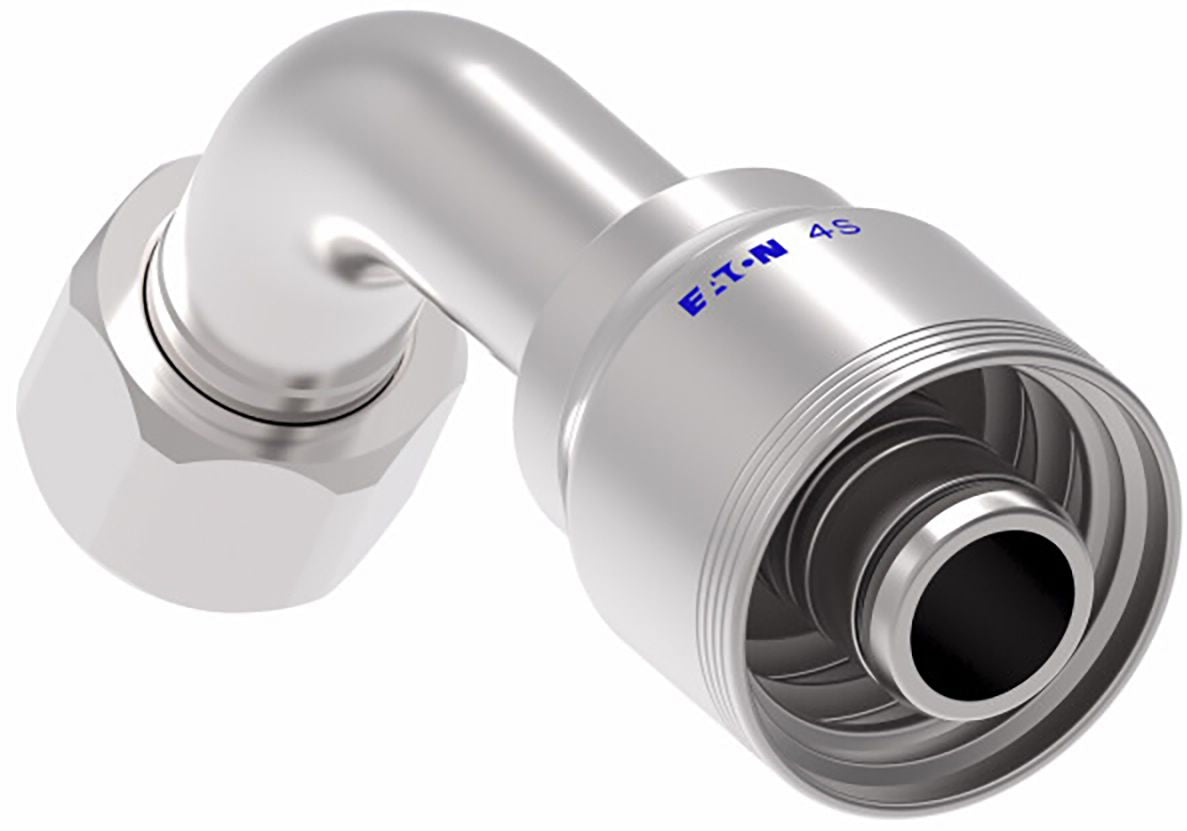

4S Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Swivel 60°, 1" (-16) x 1-5/16-12 (-16)
(Pack of 1)

Item#: 1543095

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-24

Frequently Bought Together


Crimp-On Hose Coupling 1/2" x 1/2-14

Item#: 88314KH

Z Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18

Item#: 16646

Crimp-On Hose Coupling 1/4" x 9/16-18

Item#: 88359KH

Crimp-On Hose Coupling 3/4" x 1-1/16-12

Item#: 88372KH

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16584

Crimp-On Hose Coupling 1/2" x 7/8-14

Item#: 88365KH

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 57506

Ball Check Grease Fitting Straight

Item#: 6202

Hose Clamp 304 SS 1-5/16 to 2-1/4"

Item#: 86730

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543095
Manufacturer Model #: 4SA16FJG16
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Female
Fitting End Type SAE 37
Fitting Angle 60 °
Fitting Drop Length 1.87 "
Fitting Dimension B (Working End) 1-5/16-12 (-16)
Weatherhead No. 4SA16FJG16
SAE Code J1176
Hex Size 1.5 "
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 4.12 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.47 lb
