Home End Fittings Z Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18
End Fittings

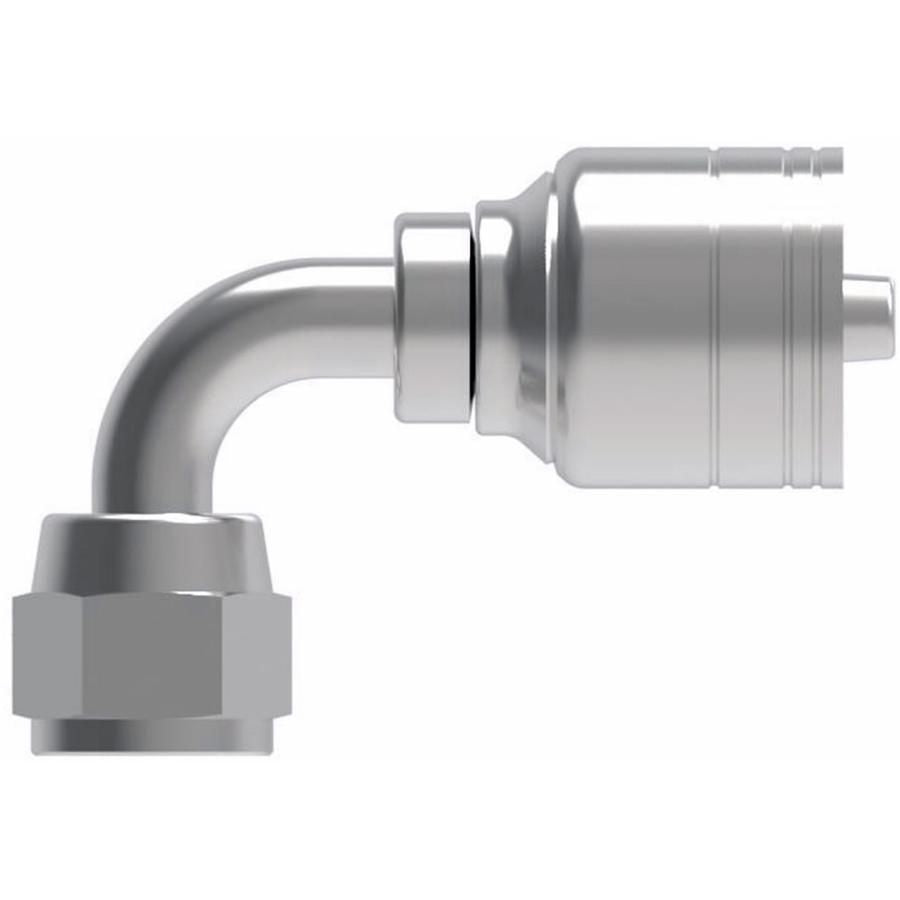

Z Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Flare 90°, 3/8" (-6) x 9/16-18 (-6)
(Pack of 1)

Danfoss®

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 8-12, 8-22

Frequently Bought Together


Z Series Crimp-On Hose End 3/8" x 1/2-14

Item#: 16581

Z Series Crimp-On Hose End 3/8" x 1/2-14

Item#: 16602

Crimp-On Hose Coupling 1/4" x 7/16-20

Item#: 88357KH

Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'

Item#: 50799 08

Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare

Item#: 86150

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: 86726

Forged Body Ball Valve Brass 1/2-14 x 1/2-14

Item#: 63136

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Product Description

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 16646
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/8 (-6) "
Dash Size -6
Gender Female
Fitting End Style JIC 37 Degree Flare
Fitting End Type Swivel
Fitting Angle 90 °
Fitting Dimension B (Working End) 9/16-18 (-6)
Weatherhead No. 06Z-666
O.D. Tube Size 3/8
Size (-6)X(-6)
Hex Size 11/16 "
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.14 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
