Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 90° 3/4" x 1-14
End Fittings

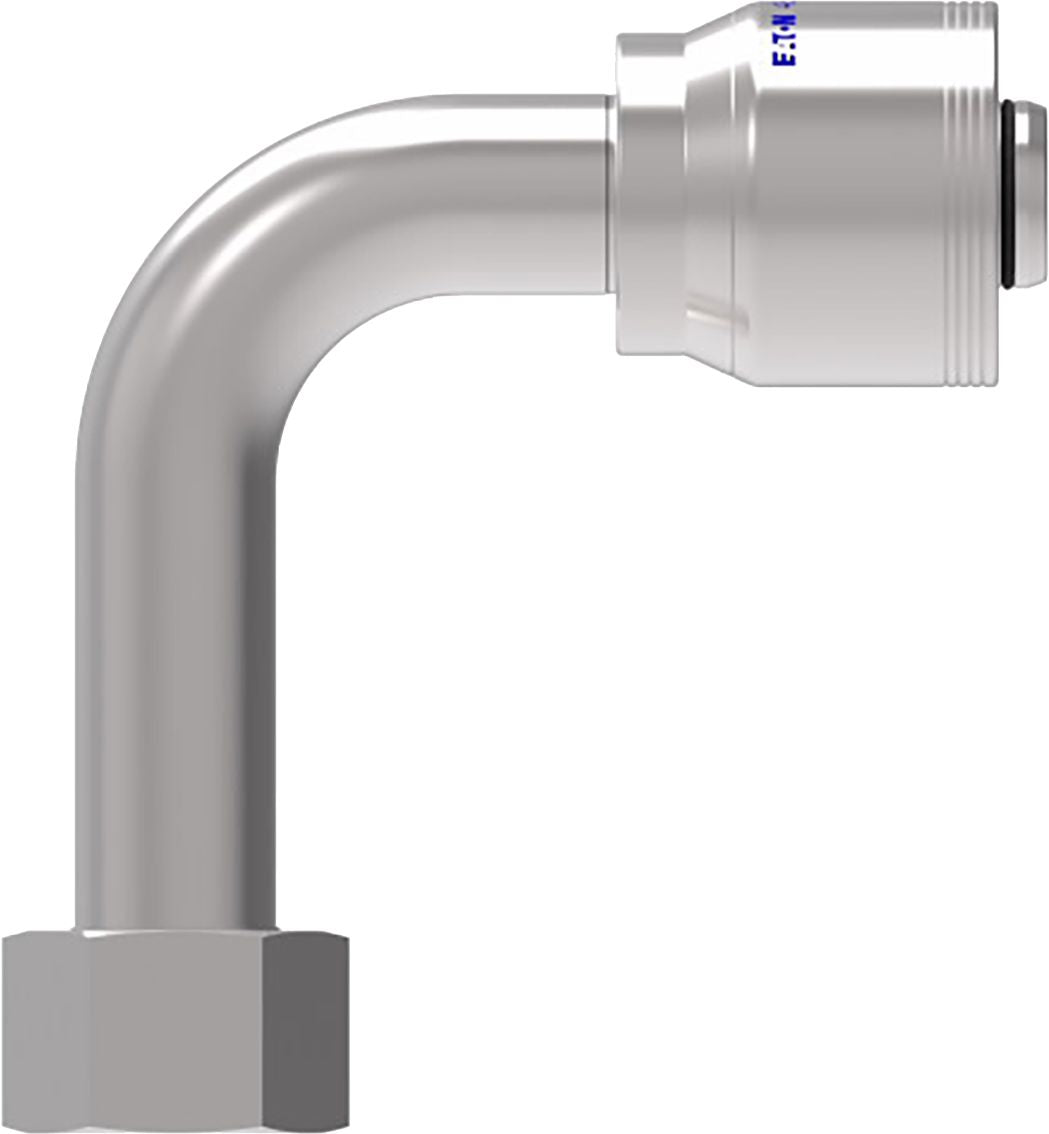

4S Series Crimp-On Elbow, Carbon Steel, Long Drop Female O-Ring Seal, Swivel 90°, 3/4" (-12) x 1-14 (-10)
(Pack of 1)

Item#: 1638906

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Frequently Bought Together


Z Series Crimp-On Hose End 1/2" x 1-14

Item#: 16710

Z Series Crimp-On Elbow Flare 45° 1/2" x 3/4-16

Item#: 16636

Crimp-On Hose Coupling 3/8" x 3/8-18

Item#: 88311KH

Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare

Item#: 86202

Straight Thread O-Ring Buna-N 0.755 x 0.097"

Item#: 93618

Z Series Crimp-On Hose End 3/4" x 1-3/16-12

Item#: 16716

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11914

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610

Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm

Item#: 84502A

Hex Cap Screw Property Class 10.9 M6-1 x 35mm

Item#: 80206

Lock And Load Interchangeable Small Punch and Chisel Set, 13pc

Item#: DY81410050

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Cable Tie 13.38" Black

Item#: 85490

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1638906
Manufacturer Model #: 4SA10FRC12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Dash Size -12
Gender Female
Fitting End Style Flat Face O-Ring Face Seal
Fitting End Type Swivel
Fitting Angle 90 °
Weatherhead No. 4SA10FRC12
Fitting Series 4S Series
Connection Type Flat Face O-Ring Face Seal
SAE Code J1176
Hex Size 1.12 "
Material Carbon Steel
Finish DURA-KOTE
UNSPSC #: 27121705
TAA Compliant: No
Weight: 0.82 lb
