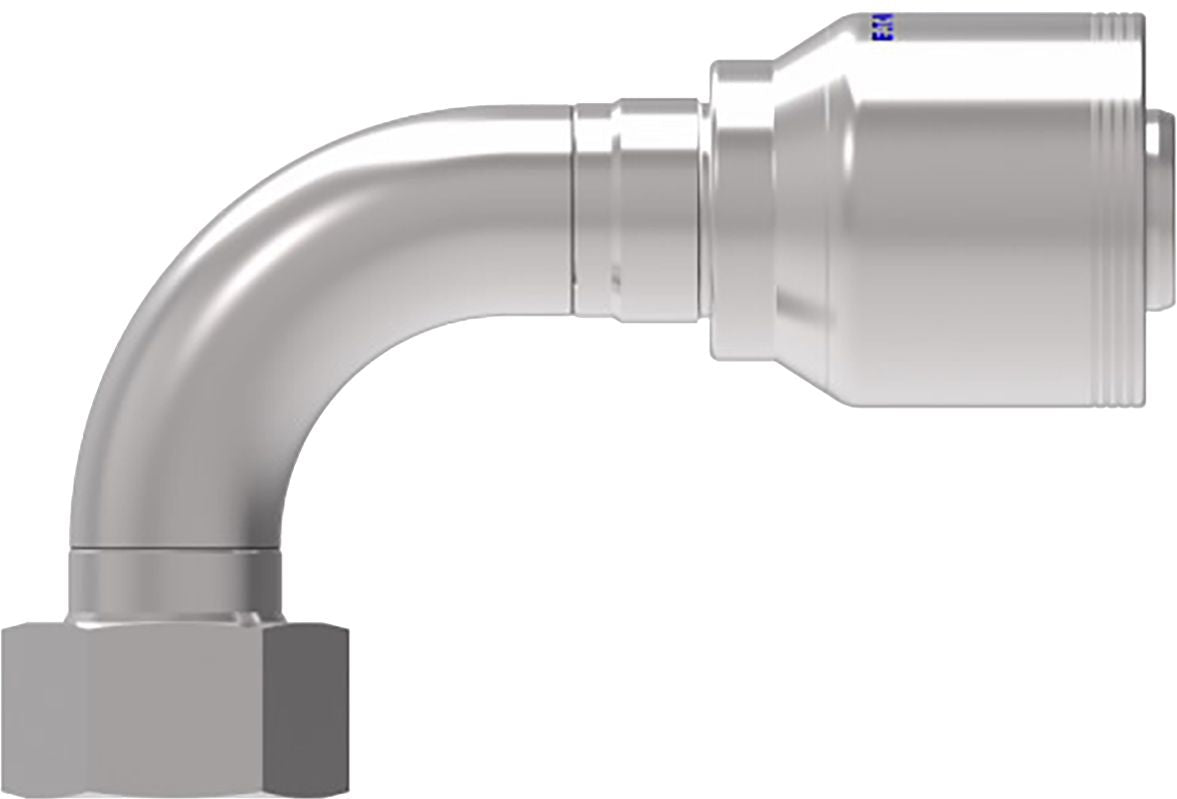

4S Series Crimp-On Elbow, Carbon Steel, Female O-Ring Seal, Swivel 90°, 3/4" (-12) x 1-7/16-12 (-16)
(Pack of
1)
SKU:1647764 Item#: 1647764
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Item#: 16614
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Item#: 62881
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Item#: 86200
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Item#: 16614
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Item#: 86327
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Item#: 5286
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Item#: 57500
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: 88445
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1647764 |
|---|---|
| Manufacturer Model #: | 4SA16FRB12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Weatherhead No. | 4SA16FRB12 |
| Fitting Series | 4S Series |
| Connection Type | Flat Face O-Ring Face Seal |
| SAE Code | J1176 |
| Hex Size | 1.62 " |
| Material | Carbon Steel |
| Finish | DURA-KOTE |
| UNSPSC #: | 27121705 |
| TAA Compliant: | No |
| Weight: | 1.46 lb |
