Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 90° 3/4 x 1.87"
End Fittings

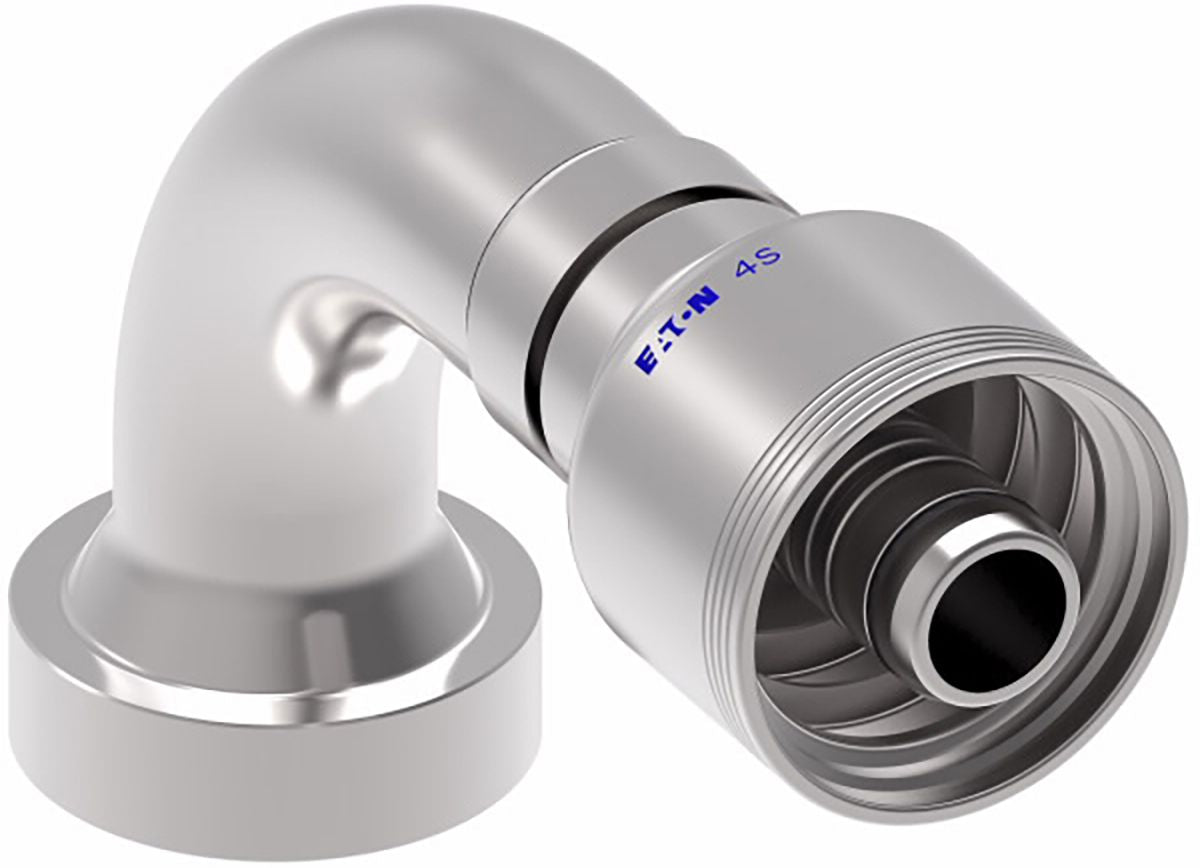

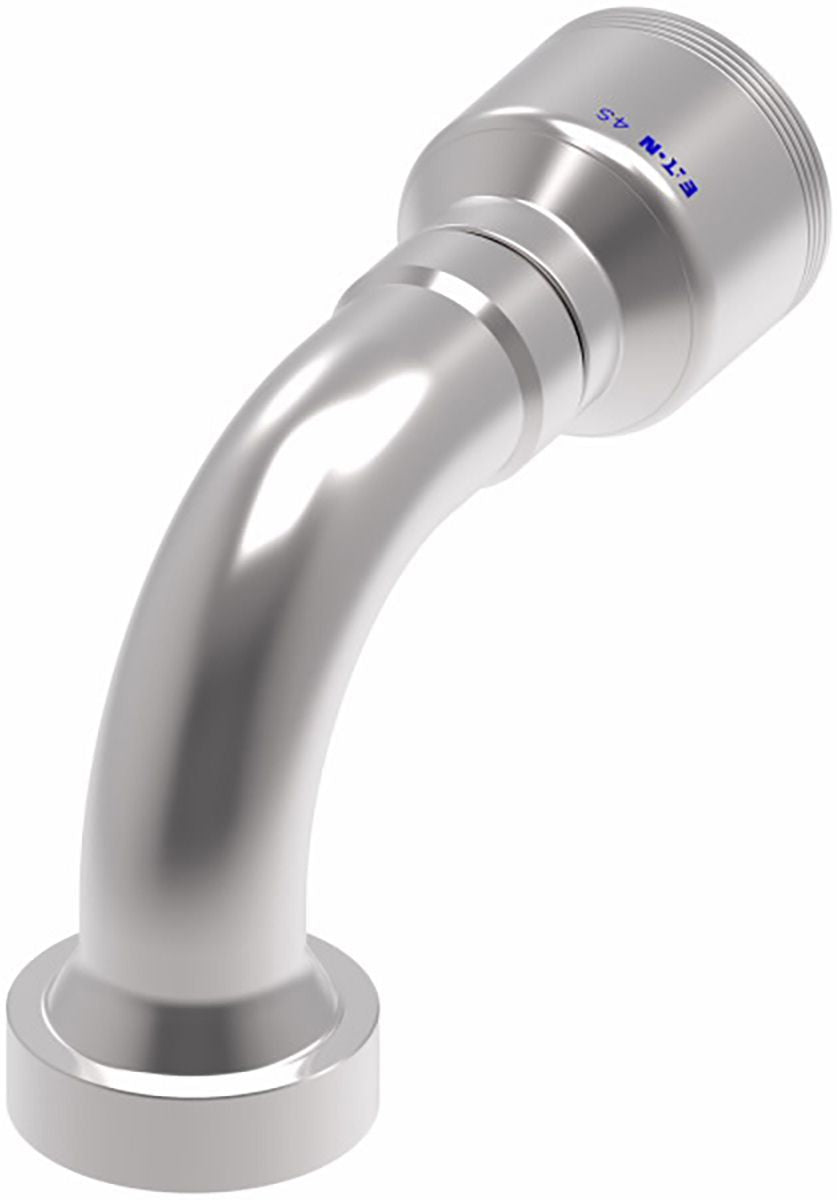

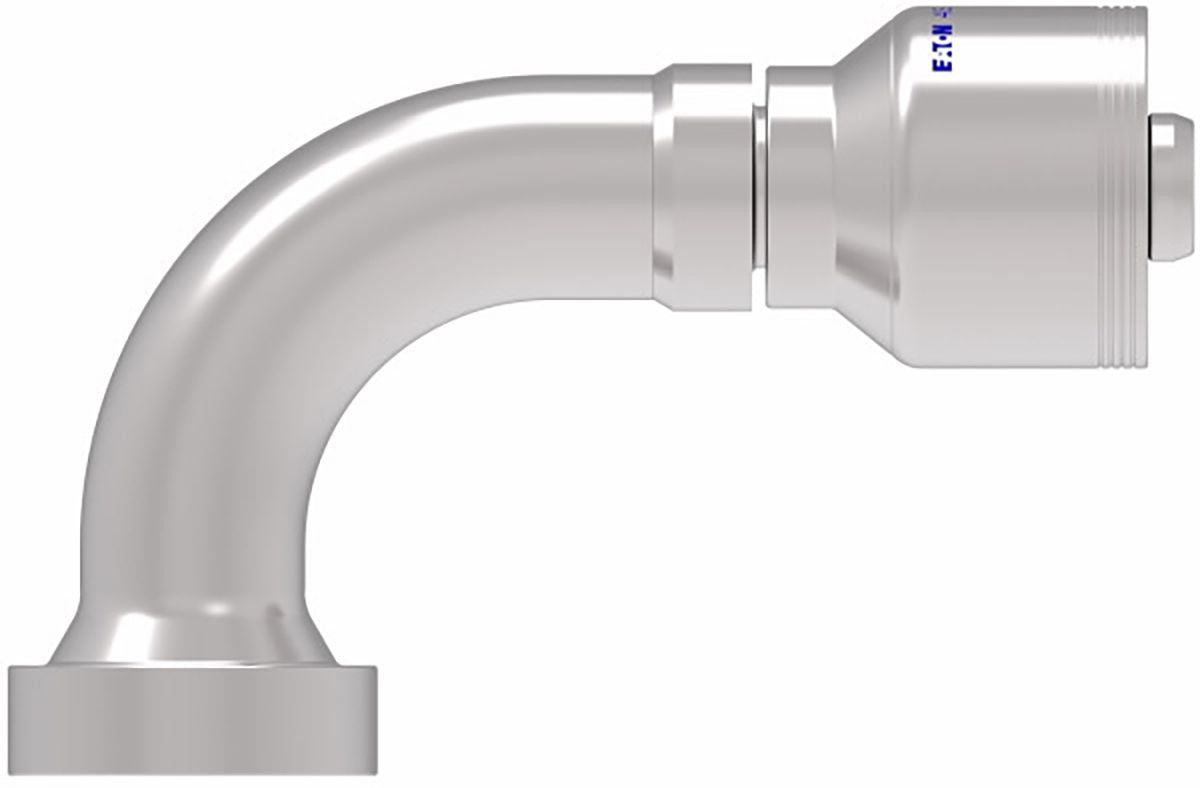

4S Series Crimp-On Elbow, Carbon Steel, Cat Flange 90°, 3/4 (-12) x 1.87" (-16)
(Pack of 1)

Item#: 1543006

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-28

Frequently Bought Together


MegaCrimp Crimp-On Coupling 1/2" x 3/4-16

Item#: 62885

Crimp-On Hose Coupling 1/2" x 1/2-14

Item#: 88314KH

Z Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18

Item#: 16646

Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

Crimp-On Hose Coupling 3/4" x 1-1/16-12

Item#: 88372KH

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16584

Hose Clamp 304 SS 9/16 to 1-1/4"

Item#: 86726

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 57506

Ball Check Grease Fitting Straight

Item#: 6202

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543006
Manufacturer Model #: 4S16CTB12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Fitting End Type Flanged
Fitting Angle 90 °
Fitting Dimension B (Working End) 1.87 (-16)
Weatherhead No. 4S16CTB12
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 3.41 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.6 lb
