Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 90° 3/4 x 2"
End Fittings

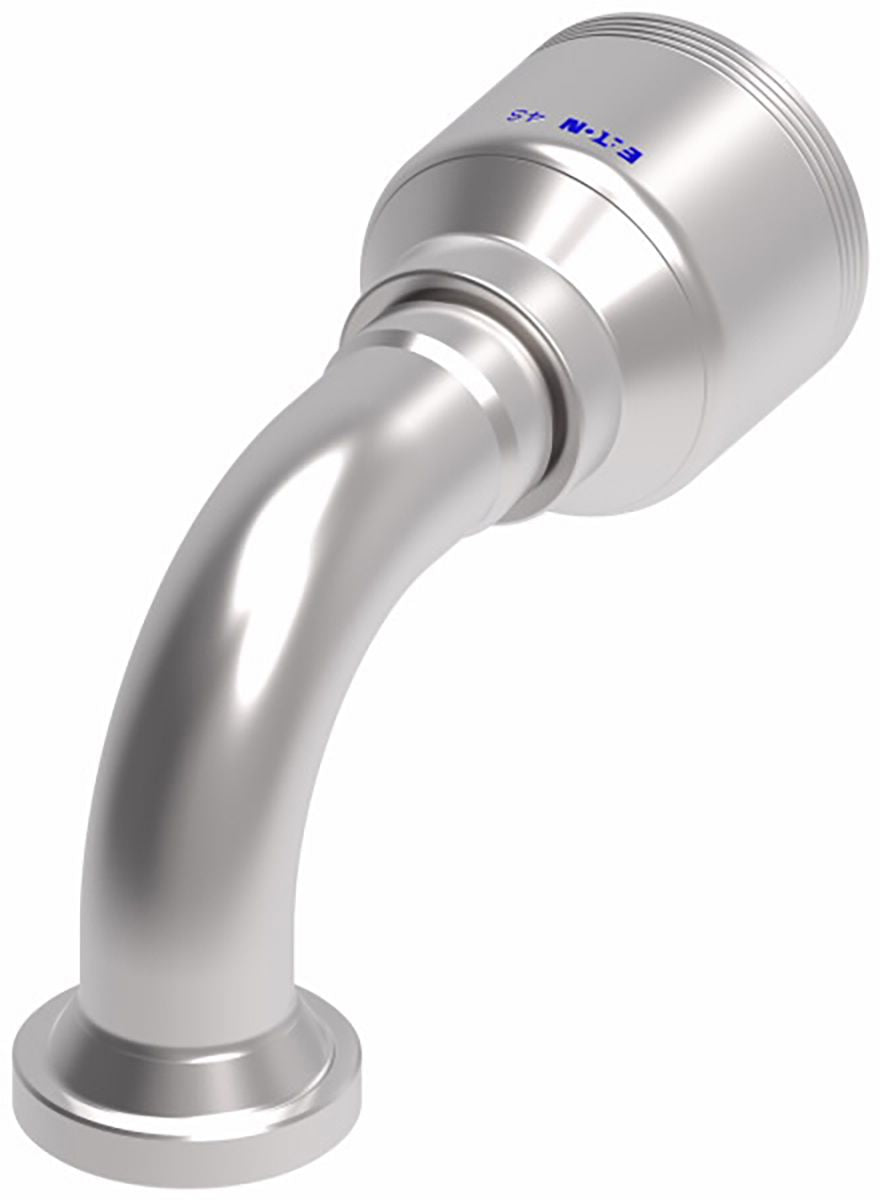

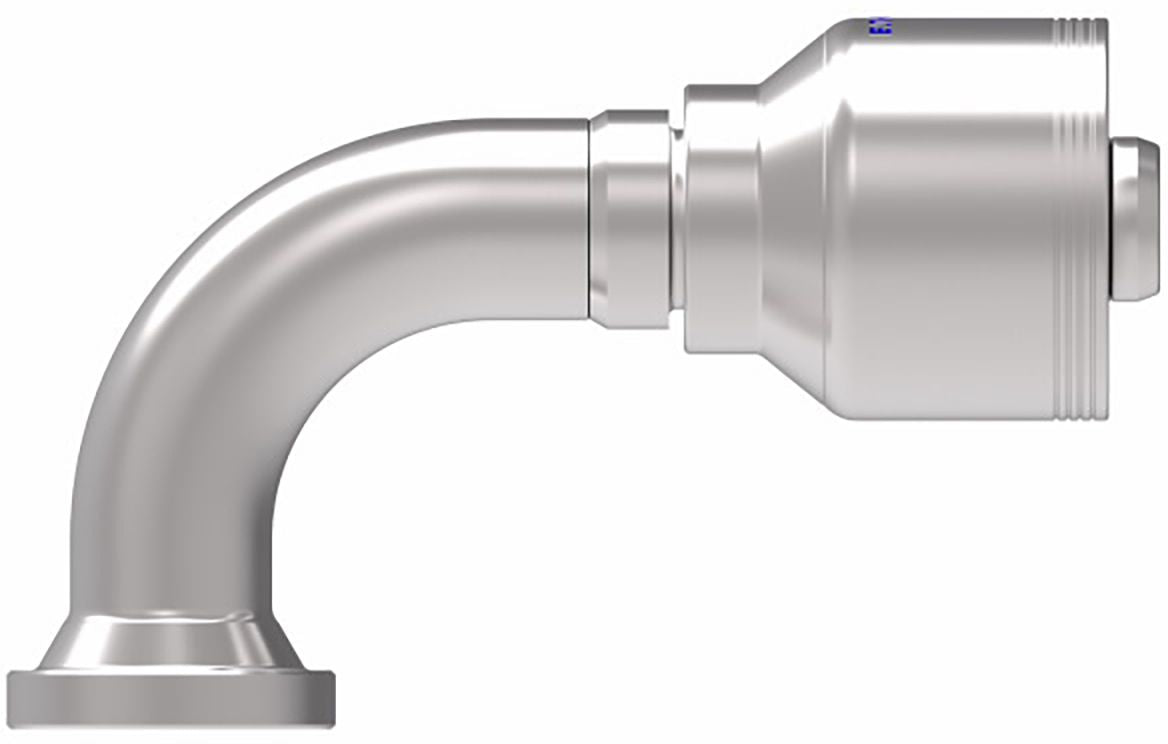

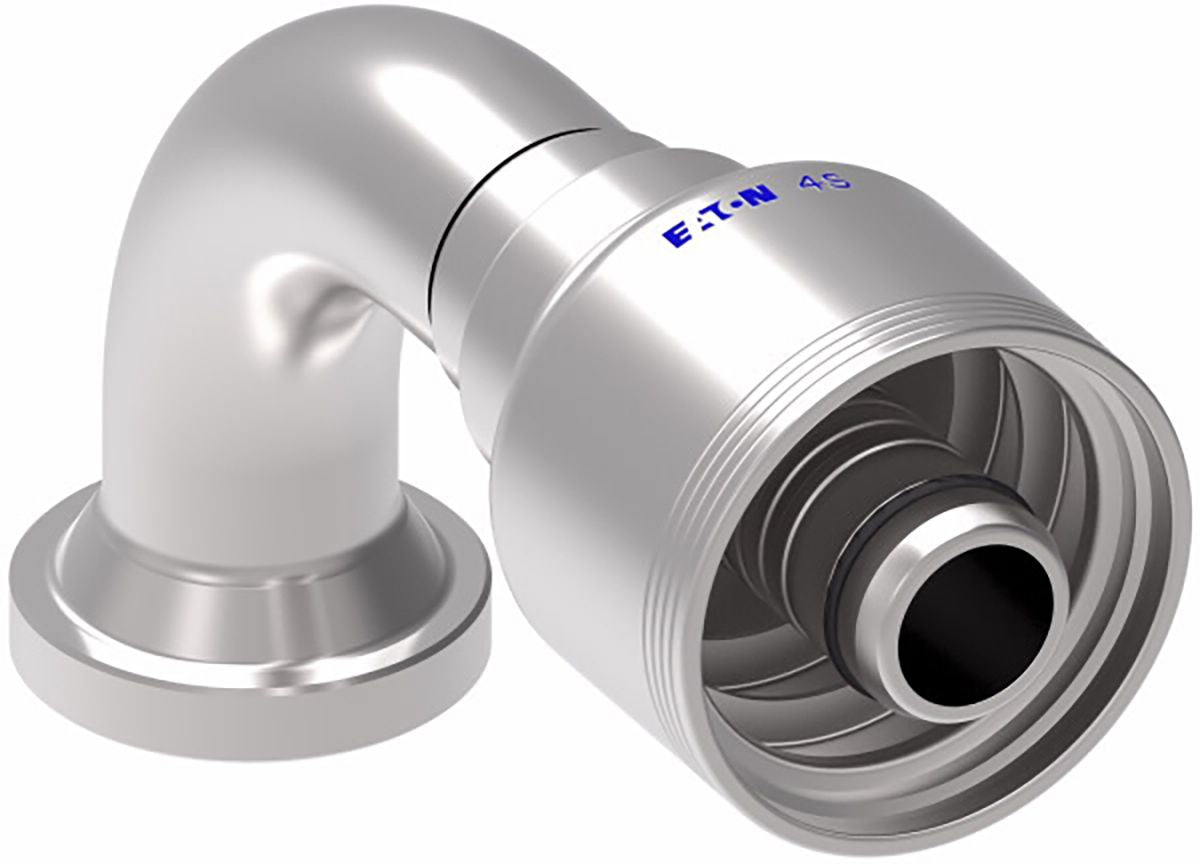

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 61, 3/4" (-12) x 2 (-20)
(Pack of 1)

Item#: 1543027

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-27

Frequently Bought Together


Crimp-On Coupling 1/4" x 9/16-18

Item#: 51140KH

Z Series Crimp-On Hose End 1/4" x 11/16-16

Item#: 16704

Z Series Crimp-On Hose End 3/8" x 3/4-16

Item#: 16671

Crimp-On Hose Coupling 1/2" x 1/2-14

Item#: 88314KH

Straight Thread O-Ring Buna-N 0.468 x 0.078"

Item#: 93616

Z Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18

Item#: 16646

DOT Compression Union Brass 1/4"

Item#: 84253

Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18

Item#: 5317

DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18

Item#: 27205

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543027
Manufacturer Model #: 4S20FLB12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Fitting End Type Flanged
Fitting Angle 90 °
Fitting Dimension B (Working End) 2.00 (-20)
Weatherhead No. 4S20FLB12
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 4.17 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.18 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
