Home Welding Welding Alloys Copper & Brass 625 Copper and Brass TIG Wire 1/16"
Copper & Brass

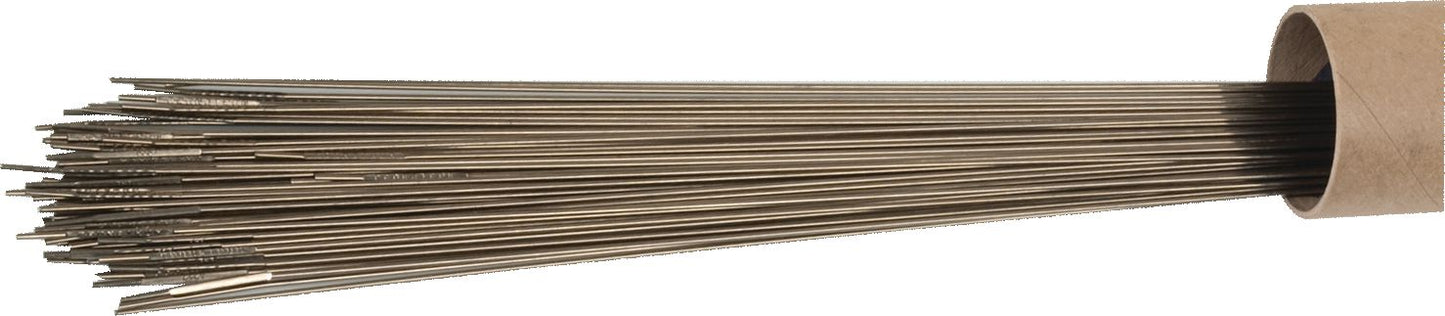

625 Copper and Brass TIG Wire 1/16
625 Copper and Brass TIG Wire 1/16

625 Copper and Brass TIG Wire, Solid, 21 to 23 HRC Hardness, 100% Ar Shielding Gas, DCSP Polarity, 36"Length, 1/16"
(Pack of 2)

Item#: CW3266

Cronatron®

Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSIHardness: Rc 21-23Polarity: DC StraightGas: 100% Ar
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts

Read More
Check Availability
Usually Ships: Today
While Supplies Last

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 13-26

Frequently Bought Together

157T Premium Bronze Solid Tig Wire 3/32X36

157T Premium Bronze Solid Tig Wire 1/8X36

Item#: EG2004157T
157T Premium Bronze Solid Tig Wire 3/32X36

157T Premium Bronze Solid Tig Wire 1/16X36

Item#: EG2007157T
Interchangeable Hex Bit Set 20Pc Torx, 20 Pc, Interchangeable Torx Quick Release Hex Bit Set

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104
Oxy-Therm Cutting Rod 1/4 x 36

Oxy-Therm Cutting Rod 1/4 x 36"

Item#: CW3618
Oxy-Therm Cutting Rod 3/8 x 36

Oxy-Therm Cutting Rod 3/8 x 36"

Item#: CW3620
281 High Strength Silver Bearing Solder .031DIA 19G TUBE

281 High Strength Silver Bearing Solder .031DIA 19G TUBE

Item#: EG28172000
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

Item#: 41754
106 Mild Steel All Purpose Electrode, Mild Steel Stick Electrode Chematized Flux / Moisture Proof/Polarity Dc Or Ac 1/8

106 Mild Steel All Purpose Electrode

Item#: EG10694002
346 Tool Steel TIG Wire 1/16

346 Tool Steel TIG Wire 1/16"

Item#: CW1892
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 7/16-14

Item#: DY02552500
Industrial-Grade High Solids Spray Paint, Gloss Black, 16 Oz. Can

Industrial-Grade High Solids Spray Paint, Gloss Black

Item#: 1633575
Replacement Broom Handle with Threaded Metal End, 15/16

Replacement Broom Handle with Threaded Metal End

Item#: 92047
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 7/16-14

Item#: DY02552500
Industrial-Grade High Solids Spray Paint, Gloss Black, 16 Oz. Can

Industrial-Grade High Solids Spray Paint, Gloss Black

Item#: 1633575
Replacement Broom Handle with Threaded Metal End, 15/16

Replacement Broom Handle with Threaded Metal End

Item#: 92047

Product Description

Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSIHardness: Rc 21-23Polarity: DC StraightGas: 100% Ar
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts

Technical Specifications

Item#: CW3266
Welding Process TIG
Type Solid
Diameter 1/16 "
Length 36 "
Tensile Strength 110,000 PSI
Base Metal Copper/Brass
Hardness 21-23 HRC
Shielding Gas 100% Ar
Polarity DCSP
UNSPSC #: 23271810
TAA Compliant: No
Weight: 2.5 lb
