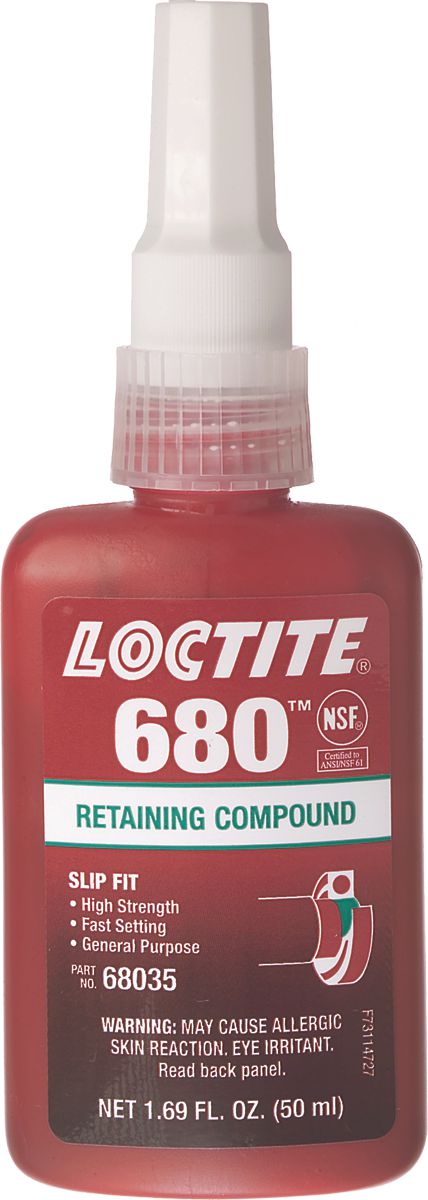

680™ Retaining Compound, Green, Liquid Form, 1.69fl.oz Bottle
(Pack of
1)
SKU:1143633 Item#: 1143633
A high-strength, high-viscosity room temperature curing adhesive used to join fitted cylindrical parts. It fixtures in 10 minutes and provides a shear strength of 4,000 PSI. Loctite® 680™ allows relaxed machining tolerances, and replaces clamp rings, set screws and snap rings.
• Color: Green
• Max. gap fill: 0.015"
• Viscosity: 1,250 cP
• Shear strength: 4,000 PSI
• Temperature range: –65°F to +300°F (–54°C to +149°C)
• Cure speed: Fixture – 10 min.; Full – 24 hrs.
• NSF/ANSI 61, ABS approved
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 24-22
Frequently Bought Together
Mega-Stick
Couldn't load pickup availability

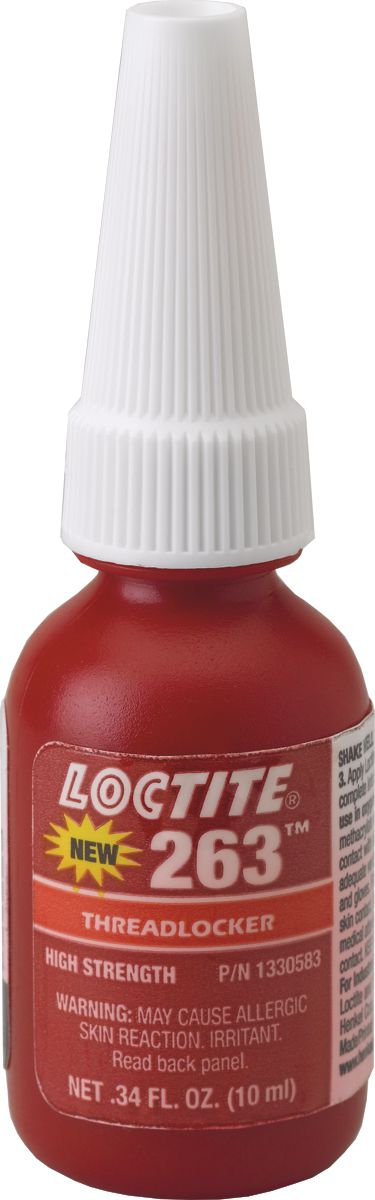

263™ Primerless Threadlocker Red 0.34fl.oz
Couldn't load pickup availability
PTFE Pipe Thread Seal White 3/4 x 260"
Couldn't load pickup availability
High Solids Paints Machinery Dark Gray
Couldn't load pickup availability
Tef Gel Penetrating Gel Lubricant with PTFE 13oz
Couldn't load pickup availability
Nut Shell Hand Cleaner 1gal
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
262™ High Strength Threadlocker Red 0.017fl.oz
Couldn't load pickup availability
290™ Wicking Threadlocker 0.34fl.oz
Couldn't load pickup availability
545™ Thread Sealant Purple 1.69fl.oz
Couldn't load pickup availability
Product Description
A high-strength, high-viscosity room temperature curing adhesive used to join fitted cylindrical parts. It fixtures in 10 minutes and provides a shear strength of 4,000 PSI. Loctite® 680™ allows relaxed machining tolerances, and replaces clamp rings, set screws and snap rings.• Color: Green
• Max. gap fill: 0.015"
• Viscosity: 1,250 cP
• Shear strength: 4,000 PSI
• Temperature range: –65°F to +300°F (–54°C to +149°C)
• Cure speed: Fixture – 10 min.; Full – 24 hrs.
• NSF/ANSI 61, ABS approved
Technical Specifications
| Item#: | 1143633 |
|---|---|
| Manufacturer Model #: | 68035 |
| Type | Heavy Duty |
| Container Type | Bottle |
| Size | 50 ml |
| Strength | High |
| Color | Green |
| Fixture Time | 10 min |
| Full Cure Time | 24 h |
| Temperature Range | -65 to 300 °F |
| Gap Fill | .25 mm |
| Physical Form | Liquid |
| Working Time | 30 min |
| Wicking | No |
| UNSPSC #: | 31201627 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
