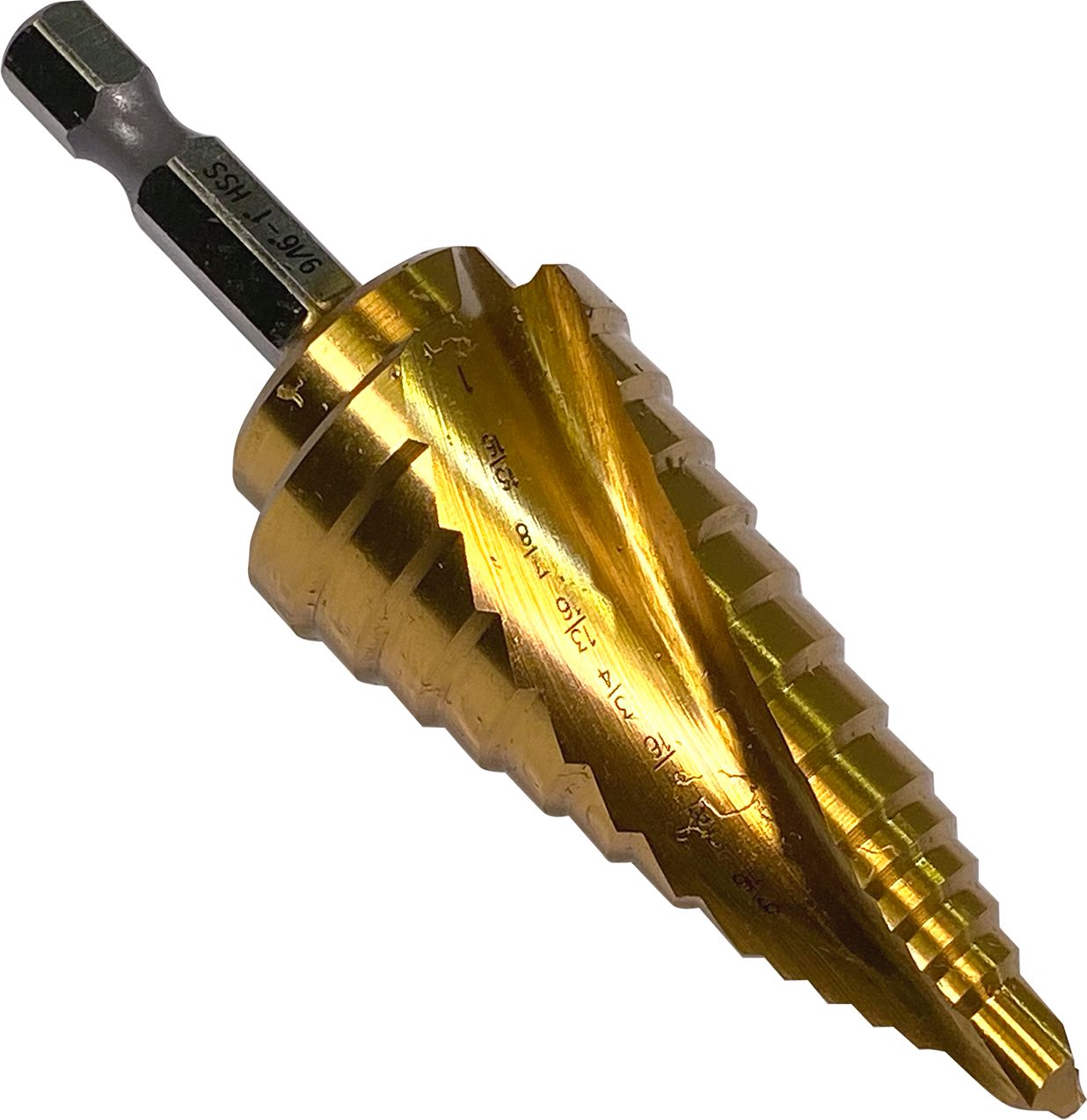

9/16" - 1", Cryonitride Step Drill, 8 Hole - 1/4" Shank
(Pack of 1)

Item#: DY80270050

CryoTool®

Cryogenically treated, Nitride coated, 1/4" hex shank, gold step bit for cutting steel plate, stainless steel, sheet metal and tubing. The tip of the bit is designed with a “walk-no-more” self-starting split tip, dual flutes for smooth cutting and a 1/4" hex shank for use in quick change drivers.
• Versatile Cutting – The CryoNitride™ Gold step bit is designed to cut through steel plate, stainless steel, sheet metals of all types and metal tubing
• All five bits offer up to 48 different hole diameters
• Quick Change Driver – 1/4" hex shank provides for quick change in today’s quick change driver power tools
• Split Point Tip – Provides self- starting tip to minimize bit walking at start up
• Two Flute Design – Drilling is balanced, creating cleaner symmetrical holes
• Hi-Viz Step Measurements – Step sizes are laser marked on the tool, gold background provides high visibility of step sizes
• High Performance/Long Life Coating – Gold CryoNitride™ coating extends the life of the tool and provides additional lubricity of enhanced cutting performance
• Cryophase™ Treatment – The treatment enhances tool flexibility, provides longer tool life, and higher heat resistance
Specifications
• Tip Design: Split Point
• Hardness: 63-66Rc
• Temperature Resistance: 1112°F
• Material: High Speed Steel
• Coating: CryoNitride
• Coating Hardness: 63-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• Steel, stainless steel and aluminum plate up to 1/8" thick
• Sheet metal and sheet copper up to 1/8" thick
• Wood and laminates
• Fiberglass
• Metal tubing
• Aluminum
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.

Read More
Check Availability

Catalog page#: LE-70

Frequently Bought Together

Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 3/16"

Item#: 84729M06
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 1/8"

Item#: 84725M06
1/8

1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank

Item#: DY80170010
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 25/64"

Item#: 84742
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 5/16"

Item#: 84737M06
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 3/32"

Item#: 84723
Lock And Load Interchangeable Medium Punch and Chisel Set, 13pc

Lock And Load Interchangeable Medium Punch and Chisel Set, 13pc

Item#: DY81410070
SAE Interchangeable Nut Driver Set 11Pc, 11 Piece, 5/32

SAE Interchangeable Nut Driver Set 11Pc

Item#: DY89320045
13-position, Indexable Universal Ergo Hammer, 13-position, 16-1/2” Long, Indexable Universal Ergo Hammer

13-position, Indexable Universal Ergo Hammer

Item#: DY81420005
Cross-Over Socket Extension Set, 3/4

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983
SAE Flat Washer Thru-Hardened Steel 1/4

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435
1/8

1/8"-3/4" 3PC Gold CryoNitride Step Drill W/Index

Item#: DY80270001
Step Drill Bit 5/16 to 1-3/16

Step Drill Bit 1-7/8 to 2-1/16"

Item#: P25515
Double Flute Step Drill Bit 3/8

Double Flute Step Drill Bit 1-7/32"

Item#: 1528392
Master Security Bit Set 203Pc, Master Security Bit Driver Set, 1/4

Master Security Bit Set 203Pc

Item#: DY81100900
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 1/2"

Item#: 84749
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 5/32"

Item#: 84727

Product Description

Cryogenically treated, Nitride coated, 1/4" hex shank, gold step bit for cutting steel plate, stainless steel, sheet metal and tubing. The tip of the bit is designed with a “walk-no-more” self-starting split tip, dual flutes for smooth cutting and a 1/4" hex shank for use in quick change drivers.
• Versatile Cutting – The CryoNitride™ Gold step bit is designed to cut through steel plate, stainless steel, sheet metals of all types and metal tubing
• All five bits offer up to 48 different hole diameters
• Quick Change Driver – 1/4" hex shank provides for quick change in today’s quick change driver power tools
• Split Point Tip – Provides self- starting tip to minimize bit walking at start up
• Two Flute Design – Drilling is balanced, creating cleaner symmetrical holes
• Hi-Viz Step Measurements – Step sizes are laser marked on the tool, gold background provides high visibility of step sizes
• High Performance/Long Life Coating – Gold CryoNitride™ coating extends the life of the tool and provides additional lubricity of enhanced cutting performance
• Cryophase™ Treatment – The treatment enhances tool flexibility, provides longer tool life, and higher heat resistance
Specifications
• Tip Design: Split Point
• Hardness: 63-66Rc
• Temperature Resistance: 1112°F
• Material: High Speed Steel
• Coating: CryoNitride
• Coating Hardness: 63-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• Steel, stainless steel and aluminum plate up to 1/8" thick
• Sheet metal and sheet copper up to 1/8" thick
• Wood and laminates
• Fiberglass
• Metal tubing
• Aluminum
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.

Technical Specifications

Item#: DY80270050
Type Multi-Hole Step Drill Bits
Material High Speed Steel
Diameter 9/16 - 1 "
Increments 1/16 "
Shank Size 1/4 "
Number of Hole Sizes 8
UNSPSC #: 23241640
TAA Compliant: No
Weight: 0.235 lb
