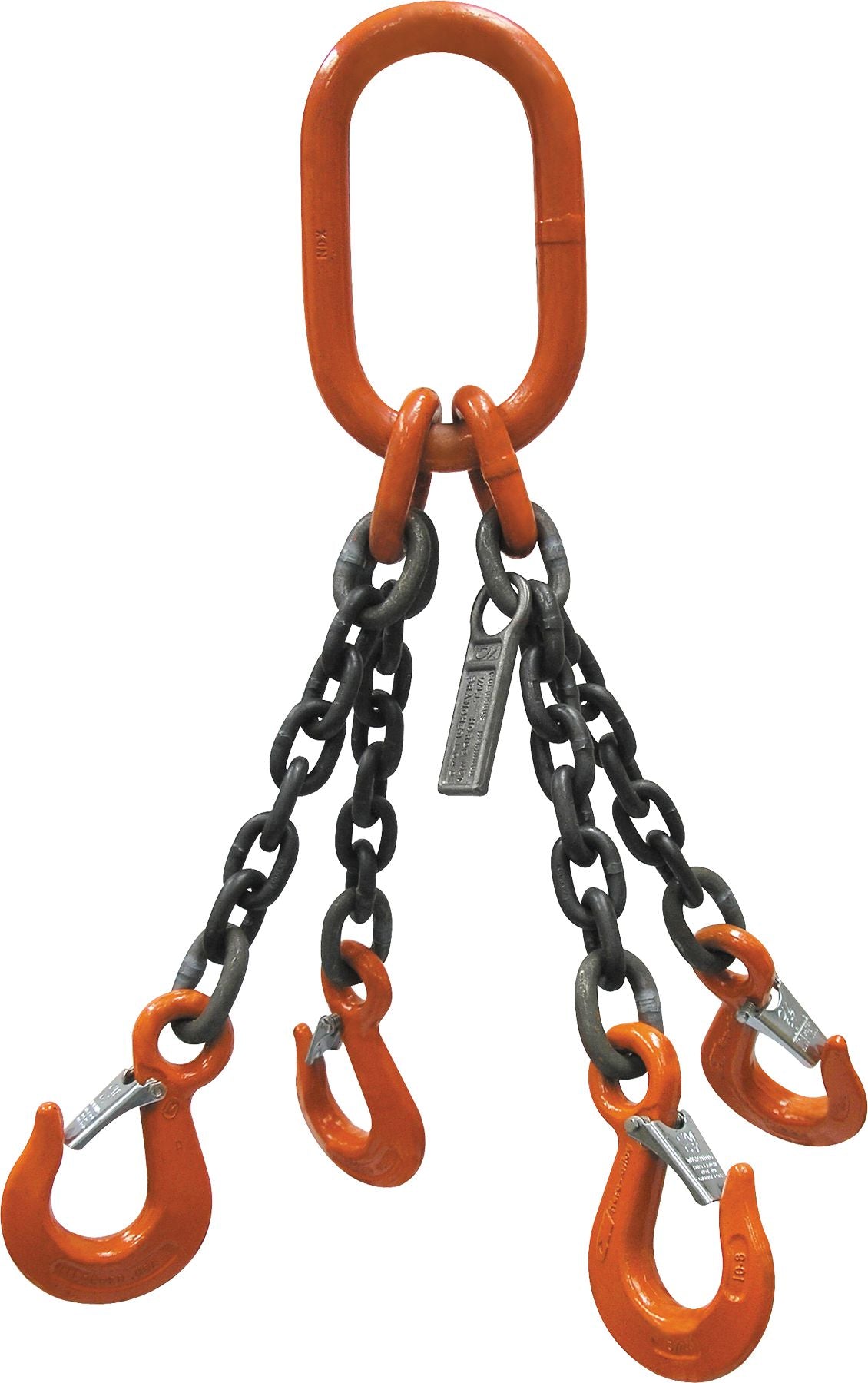

Chain Sling, Grade 80, 9/32" x 6', Type QOS, Quad Leg, Oblong Master Link & Sling Hook
(Pack of
1)
SKU:1419161 Item#: 1419161
An identification tag is affixed to each sling and lists the following information:
• Grade
• Size
• Reach
• Serial Number
• Number of Legs
• Working Load Limit at stated angle
American National Standard ANSI B30.9, the National Association of Chain Manufacturers (NACM) and the Occupation Safety and Health Administration (OSHA) recommend only the use of alloy steel chain for overhead lifting.
Items are made-to-order and are non-returnable.
Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
3/8" x 4' Type DOS Gr. 80 Chain Sling
Couldn't load pickup availability
3/8" x 8' Type QOG Gr. 100 Chain Sling
Couldn't load pickup availability
1/2" x 4' Type DOS Gr. 100 Chain Sling
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 3/16"
Couldn't load pickup availability
Wire Rope Sleeve, 3/32", Aluminum
Couldn't load pickup availability
Grade 43 Clevis Grab Hook, 3/8", 5,400 lb WLL
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Webmaster® 1600 Web Sling, Polyester, Yellow, 4' Length
Couldn't load pickup availability
Adjust-A-Linkâ„¢ Chain Sling, Grade 100, 10' Length
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 6' Length
Couldn't load pickup availability
Product Description
An identification tag is affixed to each sling and lists the following information:• Grade
• Size
• Reach
• Serial Number
• Number of Legs
• Working Load Limit at stated angle
American National Standard ANSI B30.9, the National Association of Chain Manufacturers (NACM) and the Occupation Safety and Health Administration (OSHA) recommend only the use of alloy steel chain for overhead lifting.
Items are made-to-order and are non-returnable.
Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Technical Specifications
| Item#: | 1419161 |
|---|---|
| Type | Quad |
| Grade | 80 |
| Chain Size | 9/32 " |
| Reach | 6 ft |
| Assembly Type | Mechanical |
| Configuration | QOS |
| Attachment Type | Oblong Link and (4) Sling Hooks |
| Rated Capacity: 60° | 9,100 lb |
| Rated Capacity: 45° | 7,400 lb |
| Rated Capacity: 30° | 5,200 lb |
| Hook Type | Sling Hook |
| UNSPSC #: | 24101611 |
| TAA Compliant: | Yes |
