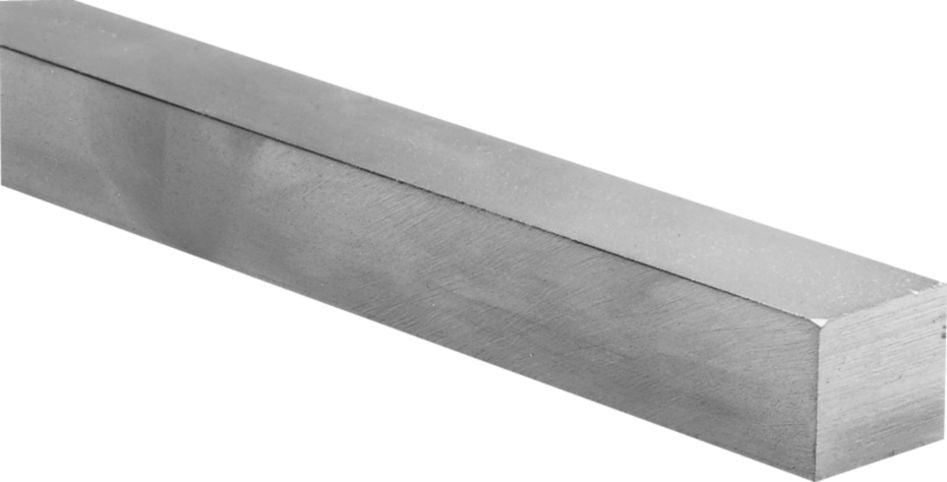

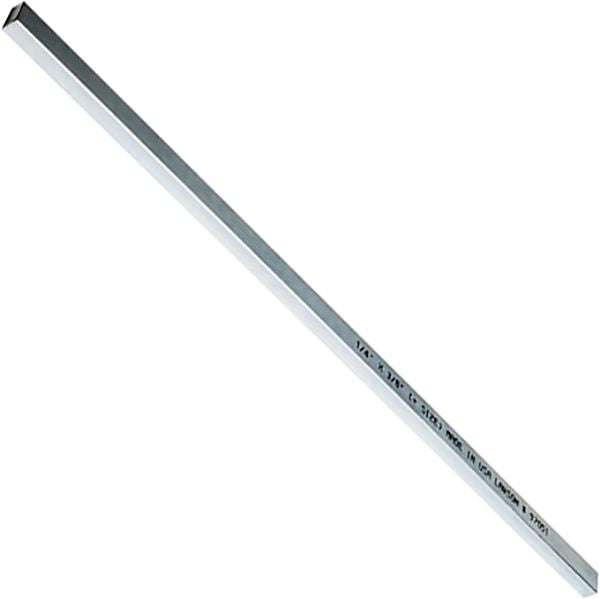

ASTM A108 Keystock Square 1/2"
(Pack of
3.0)
• Manufactured of cold finished steel
• Zinc-coated to prevent rust
• Smooth-cut, burr-free bars
• Clean and greaseless
• Tolerances on dimension are oversized to assure tight fit in keyways for positive, zero-backlash power transmission
12" pre-cut lengths
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 6-61
Frequently Bought Together
Self-Drilling Screw Hex Head #12-14 x 1"
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 1/4"
Couldn't load pickup availability
DIN 6880 Keystock Square 2mm
Couldn't load pickup availability
DIN 6880 Keystock Square 16mm
Couldn't load pickup availability
ASTM A108 Keystock Rectangular 5/8 x 3/4"
Couldn't load pickup availability
Cotter Pin Standard Extended Prong 5/32 x 1-1/2"
Couldn't load pickup availability
Hammerlock Cotter Pin 1/16 x 1"
Couldn't load pickup availability
Hair Pin Cotter 0.125 x 2-1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Product Description
• Manufactured of cold finished steel• Zinc-coated to prevent rust
• Smooth-cut, burr-free bars
• Clean and greaseless
• Tolerances on dimension are oversized to assure tight fit in keyways for positive, zero-backlash power transmission
12" pre-cut lengths
Technical Specifications
| Item#: | 9031 |
|---|---|
| Size | 1/2 " |
| Length | 12 " |
| Style | Square |
| Material | Carbon Steel |
| Type | Standard |
| Finish | Bright Zinc |
| Grade | C1018 |
| Specifications | ASTM-A-108 |
| Length Tolerance | +.125 / -.0625" |
| Rockwell Hardness | 80-100 B Scale |
| Thickness Tolerance | +003 / -.001" |
| UNSPSC #: | 31163208 |
| TAA Compliant: | Yes |
| Weight: | 2.61 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
