Home Electrical ATO/ATC Fuse Panel 10-Terminal 30A
Electrical

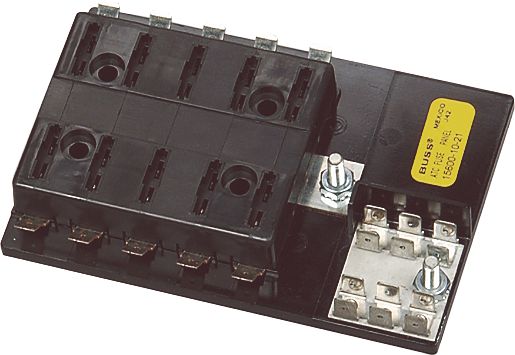

ATO/ATC Fuse, Panel, 10-Terminal, Long Base with Ground, 30 Amps, Thermoplastic, Quick-Connect Terminal, Flame Retardant
(Pack of 1)

Item#: 62389

Lawson Products

• Accepts ATC/ATO® blade-type fuses or blade-type automatic or manual reset circuit breakers
• A single, common power input makes it simple to wire for multiple circuits
• Made of high-grade thermoplastic for durability
• Quick-connect terminal for easy installation
• Recessed fuse contacts provide touch-safe protection
• 30A maximum rating
• Rated to 221°F (105°C) with a 94V-0 flame retardant
• For use in trucks, buses, boats and recreational vehicles

Read More
Check Availability

Catalog page#: 19-11

Frequently Bought Together


Cable Tie 11.41" Black

Item#: 85488

Cable Tie 13.38" Black

Item#: 85490M01

Cable Tie 14.19" Black

Item#: 85489

ATO/ATC Fuse Panel 8-Terminal Short Base

Item#: 62387

Environmentally-Sealed Auto Fuse Holder 32V 3-30A

Item#: 97684

ATO/ATC In-Line Fuse Holder with Cap 32V 1-20A

Item#: 57454

MAXI® Fuse 40A Orange

Item#: 97292

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

Product Description

• Accepts ATC/ATO® blade-type fuses or blade-type automatic or manual reset circuit breakers
• A single, common power input makes it simple to wire for multiple circuits
• Made of high-grade thermoplastic for durability
• Quick-connect terminal for easy installation
• Recessed fuse contacts provide touch-safe protection
• 30A maximum rating
• Rated to 221°F (105°C) with a 94V-0 flame retardant
• For use in trucks, buses, boats and recreational vehicles

Technical Specifications

Item#: 62389
Style ATC/ATO Fuse Panels
Number of Terminals 10
Base Type Long Base with Ground
Temperature Max. 221 F
Flame Retardant 94V-0
Type Vehicle Circuit Protection
UNSPSC #: 39121600
TAA Compliant: Yes
Weight: 0.31 lb
