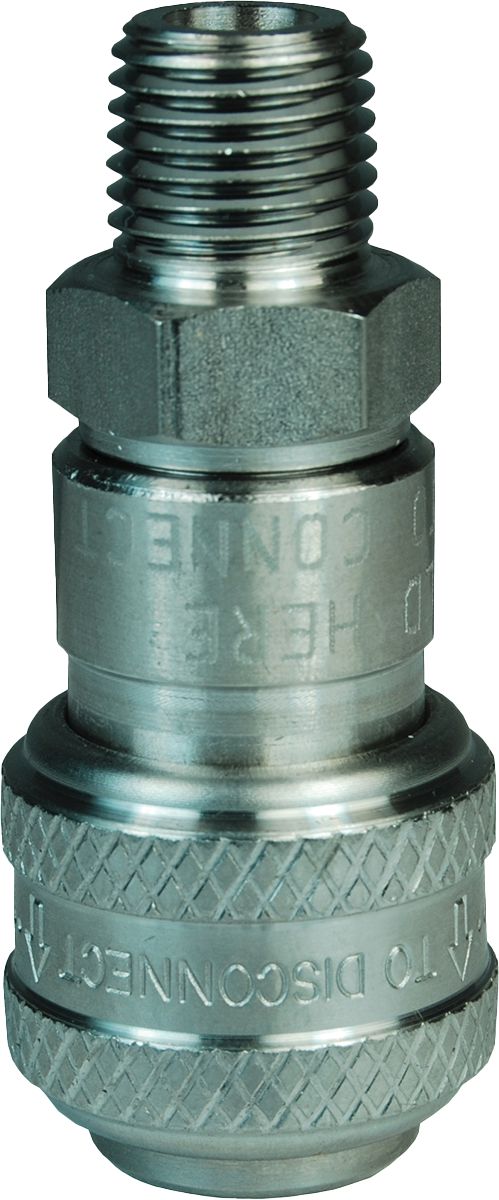

D-Series Industrial Pneumatic Quick Disconnect Coupler, Automatic, 303 Stainless Steel, Male NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:1677194 Item#: 1677194
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.
• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Nipple, Schrader, 1/4'' Body, 1/4-18 Male NPT, Steel
Couldn't load pickup availability
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Garden Hose End Brass 5/8" x 3/4-11-1/2
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hose End Brass 1/4 x 1/4"
Couldn't load pickup availability
Garden Hose End Brass 5/8" x 3/4-11-1/2
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Product Description
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Technical Specifications
| Item#: | 1677194 |
|---|---|
| Manufacturer Model #: | 2DM2-S |
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 1/4 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 2.34 " |
| Seal Material | Nitrile |
| Hex Size | 11/16 " |
| Dixon Number | 2DM2-S |
| UNSPSC #: | 31163101 |
| TAA Compliant: | Yes |
| Weight: | 0.26 lb |
