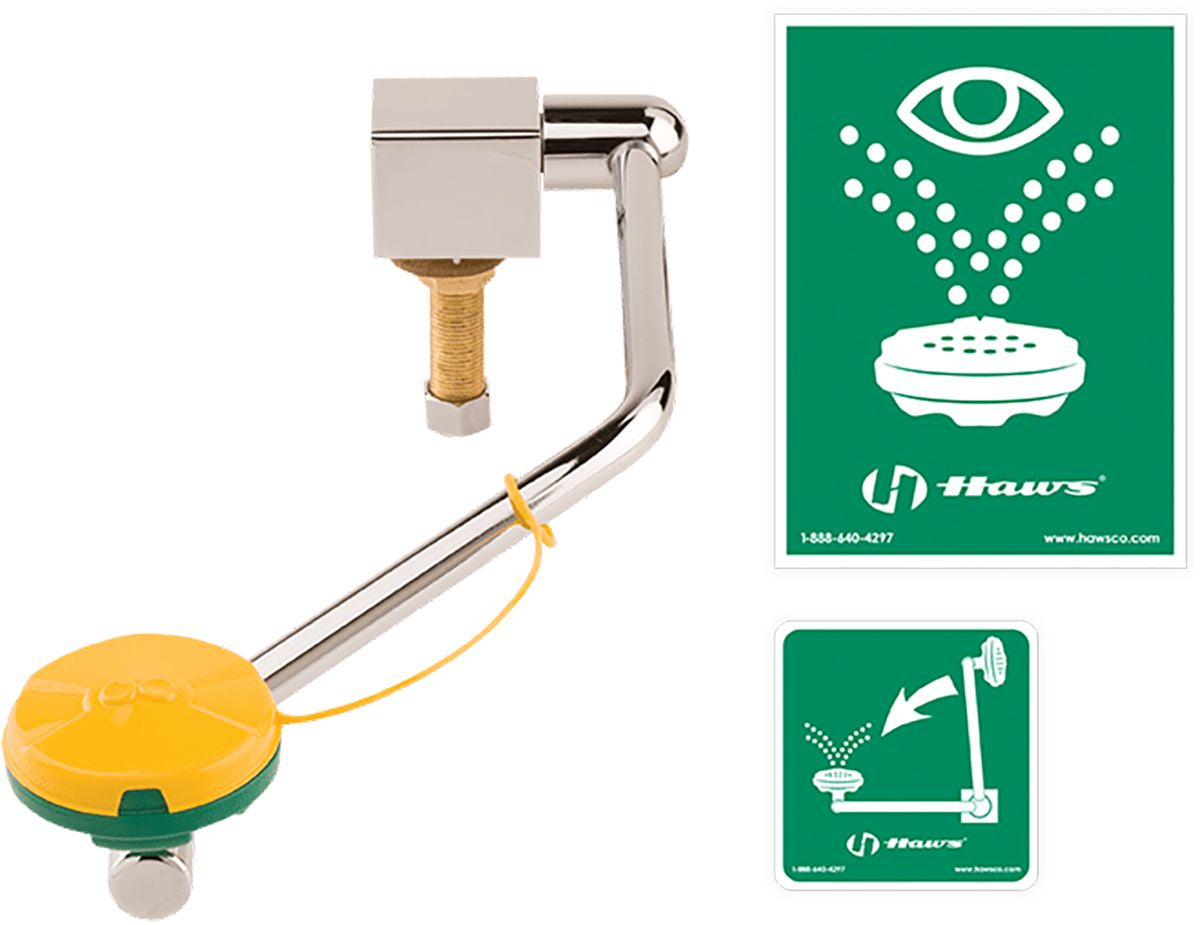

Axion MSR Sink Mount Eye/Face Wash Station, Left/Right Side, Plastic, Chrome-Plated Brass, 12 gpm Flow Rate, Silver
(Pack of
1)
SKU:1647988 Item#: 1647988
A barrier-free sink/counter top or wall mount eye/face wash with an inverted directional laminar flow for Zero Vertical Velocity supplied by an integral 4.2 gpm flow control. Also included; polished chrome brass single action pull-down valve body, wheelchair accessibility, universal sign, and 1/2" O.D. (1.3 cm) slip joint inlet.
• Unit can be deck or wall mounted with easy change-over instructions
• Extended-length pull down arms are designed to accommodate wheelchair access
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Dust cover allows for the 7610 to stay protected from debris when not in use
• Activation and deactivation occur at a 30 degree angle from horizontal limiting splash of water onto counter or wall
• Rear mount design allows the sink to remain open to other uses
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Drench Hose Sprays Single Head
Couldn't load pickup availability
Blue GT Series Extra Heavy Duty Wiper Roll
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Green
Couldn't load pickup availability
LionGrip 8mil Nitrile Glove Black X-Large
Couldn't load pickup availability
TigerGrip 8 Mil Nitrile Glove Orange 2X-Large
Couldn't load pickup availability
Baseball Style Bump Cap with HDPE Protective Liner and Adjustable Back
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Faucet-Mounted Eyewash Axion Eyepod
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Hand Wash Sink with Axion Eye/Face Wash
Couldn't load pickup availability
Product Description
A barrier-free sink/counter top or wall mount eye/face wash with an inverted directional laminar flow for Zero Vertical Velocity supplied by an integral 4.2 gpm flow control. Also included; polished chrome brass single action pull-down valve body, wheelchair accessibility, universal sign, and 1/2" O.D. (1.3 cm) slip joint inlet.• Unit can be deck or wall mounted with easy change-over instructions
• Extended-length pull down arms are designed to accommodate wheelchair access
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Dust cover allows for the 7610 to stay protected from debris when not in use
• Activation and deactivation occur at a 30 degree angle from horizontal limiting splash of water onto counter or wall
• Rear mount design allows the sink to remain open to other uses
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647988 |
|---|---|
| Manufacturer Model #: | 7610 |
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 12 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified, ADA Accessible |
| Material | Plastic/Chrome-Plated Brass |
| Mount Style | Sink |
| Color | Silver |
| Width | 8-1/8 " |
| Height | 17 " |
| Eye Wash Material | Plastic |
| Includes | Inspection Tag, Universal Identification Sign, Valve Body, Wheelchair Accessibility |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181800 |
| TAA Compliant: | Yes |
