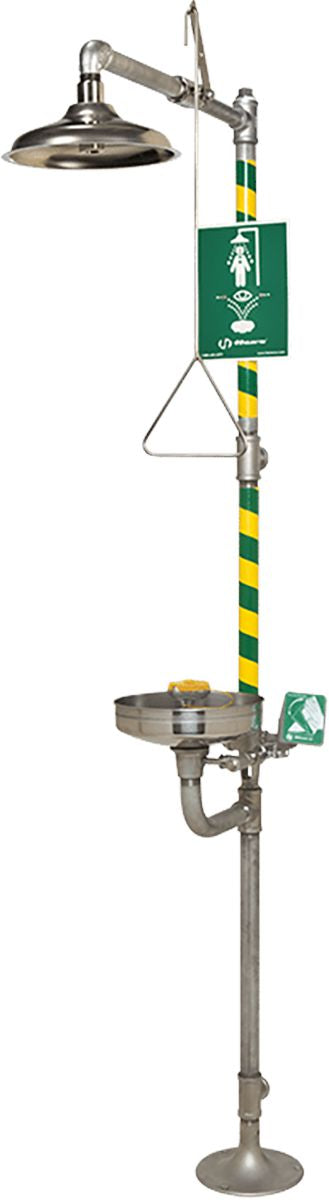

Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
(Pack of
1)
Stainless Steel combination shower and eye/face wash includes an 11" round bowl, an eye/face wash head that supplies an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units include a showerhead with 20 gpm flow control, eyewash dust cover, stainless steel 50 x 50 mesh water strainer, and Type 316 Stainless Steel stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit also includes a cast 9" diameter floor flange, universal sign, self-adhesive high visibility Safety Green and bright yellow stripes, and 1-1/4" NPT supply.
• Features an 11" (27.9 cm) stainless steel bowl and 9" (22.9 cm) floor flange
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Uniform drenching
• Reducing installation time, eyewash and valve assembly is pre-built and fully water/pressure tested
• Solid 1-1/4" Type 304 Stainless Steel construction makes for one sturdy piece of corrosive resistant equipment
• Provided with universal emergency sign and high visibility stripe
• Supply and Waste: 1-1/4" NPT
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

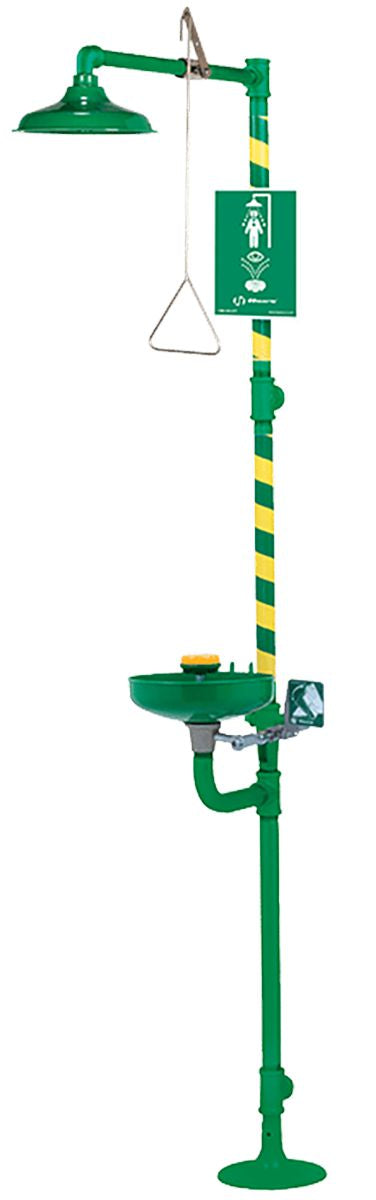

Axion MSR Combination Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Freeze-Protected Shower and Eye/Face Wash
Couldn't load pickup availability
Axion MSR Emergency Shower and Eye/Face Wash
Couldn't load pickup availability
Eye Wash Bottles
Couldn't load pickup availability
Saline Concentrate
Couldn't load pickup availability
Eye Care Treatment Pack
Couldn't load pickup availability
WypAll X80 ShopPro Towel 12.5 x 16.8"
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Sqweeze® Hydration Freeze Pops
Couldn't load pickup availability
Laser Lite Ear Plugs
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
Stainless Steel combination shower and eye/face wash includes an 11" round bowl, an eye/face wash head that supplies an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units include a showerhead with 20 gpm flow control, eyewash dust cover, stainless steel 50 x 50 mesh water strainer, and Type 316 Stainless Steel stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit also includes a cast 9" diameter floor flange, universal sign, self-adhesive high visibility Safety Green and bright yellow stripes, and 1-1/4" NPT supply.• Features an 11" (27.9 cm) stainless steel bowl and 9" (22.9 cm) floor flange
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Uniform drenching
• Reducing installation time, eyewash and valve assembly is pre-built and fully water/pressure tested
• Solid 1-1/4" Type 304 Stainless Steel construction makes for one sturdy piece of corrosive resistant equipment
• Provided with universal emergency sign and high visibility stripe
• Supply and Waste: 1-1/4" NPT
Technical Specifications
| Item#: | 1648007 |
|---|---|
| Overall Height | 95-1/4 " |
| Style | With Eyewash/Facewash Station |
| Body Material | Stainless Steel |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Drench Shower - Corrosion Resistant |
| Drench Shower Material | Stainless |
| Water Supply | 1-1/4" NPT |
| Includes | 11 in (27.9 cm) Round Bowl, AXION MSR Hydrodynamic Design Showerhead, AXION MSR Eye/Face Wash Head, Cast 9 in (22.9 cm) Diameter Floor Flange, Inspection Tag, Self-Adhesive High Visibility Safety Green and Bright Yellow Stripes, Universal Sign |
| Mount Style | Floor |
| Material | Stainless Steel |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye/Face Wash Station |
| Color | Silver/Green/Yellow |
| Eyewash Bowl Diameter | 11 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
