Emergency Freeze Protected Shower and Eyewash
(Pack of
1.0)

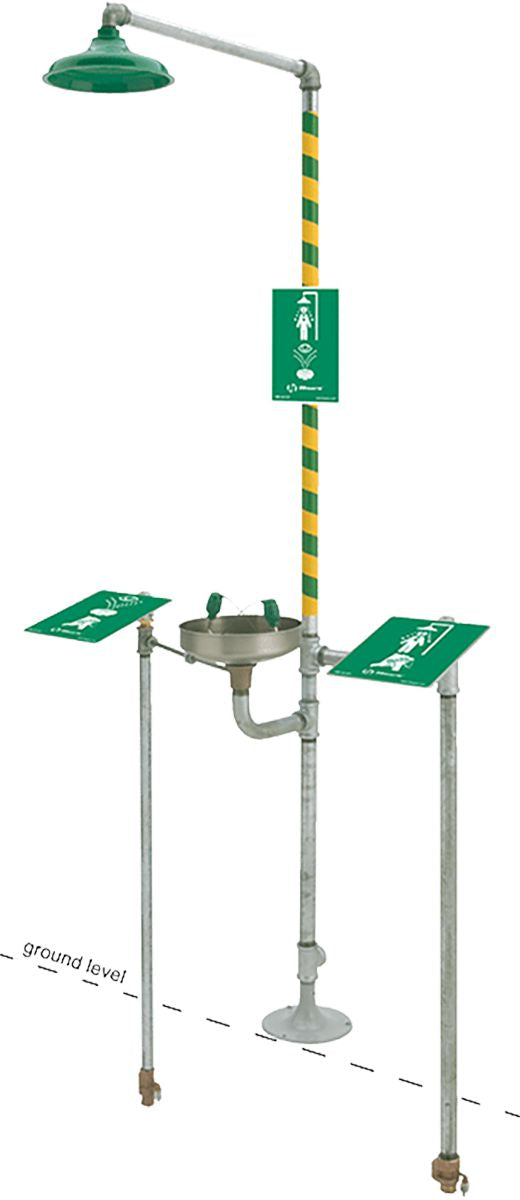

A freeze protected combination shower and eyewash including a showerhead with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, two self-draining bury valves with available frost-line depths of 24"and 42" depths, two large zinc-plated steel push plates with universal graphics, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 3/4" NPT and 1-1/4" NPT inlet, and 1-1/4" NPT outlet
• Perfect for extreme weather conditions dropping down to -30° F (-34.4° C)
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Universal design allows for top or bottom water supply
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, entire unit is pre-built and fully pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 2, Group B, C & D. Temperature code T6 * * *
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Portable Air-Pressurized Emergency Eyewash
Couldn't load pickup availability
Eye Wash Station Portable Pressurized
Couldn't load pickup availability
Axion MSR Combination Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
PTFE Thread Sealing Tape Red 1/2" x 45'
Couldn't load pickup availability
Oiler with Rigid Spout 6oz
Couldn't load pickup availability
Hi-Tack Double-Faced Mounting Tape 1" x 30'
Couldn't load pickup availability
Automotive Refinishing Tape 2" x 60 Yards
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
A freeze protected combination shower and eyewash including a showerhead with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, two self-draining bury valves with available frost-line depths of 24"and 42" depths, two large zinc-plated steel push plates with universal graphics, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 3/4" NPT and 1-1/4" NPT inlet, and 1-1/4" NPT outlet• Perfect for extreme weather conditions dropping down to -30° F (-34.4° C)
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Universal design allows for top or bottom water supply
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, entire unit is pre-built and fully pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 2, Group B, C & D. Temperature code T6 * * *
Technical Specifications
| Item#: | 1648001 |
|---|---|
| Style | Combination Drench Showers and Eye Wash |
| Body Material | Stainless Steel |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Shower with Eye Wash Station |
| Drench Shower Material | Plastic |
| Eye Wash Material | Plastic |
| Water Supply | 1-1/4" NPT |
| Includes | Anti-Surge Heads with Integral Flow Controls and Dust Cover, AXION MSR Showerhead, Inspection Tag, 9" Diameter Floor Flange, SS 11" (27.9 cm) Round Bowl, SS Eyewash Yoke Assembly, Two Large Zinc Steel Push Plates, Universal Sign |
| Mount Style | Floor |
| Material | Plastic/Stainless Steel/Galvanized Steel |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye Wash Station |
| Color | Silver/Green/Yellow |
| Height | 86 " |
| Eyewash Bowl Diameter | 11 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
